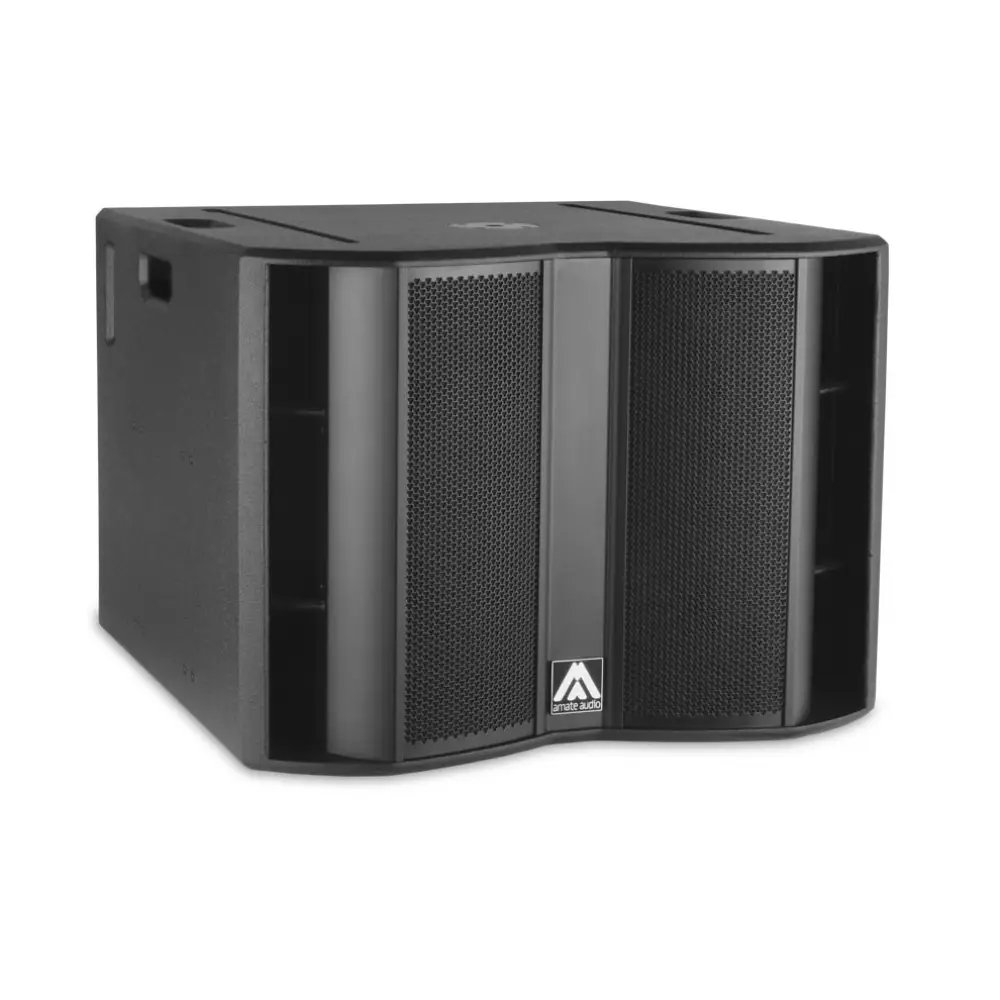

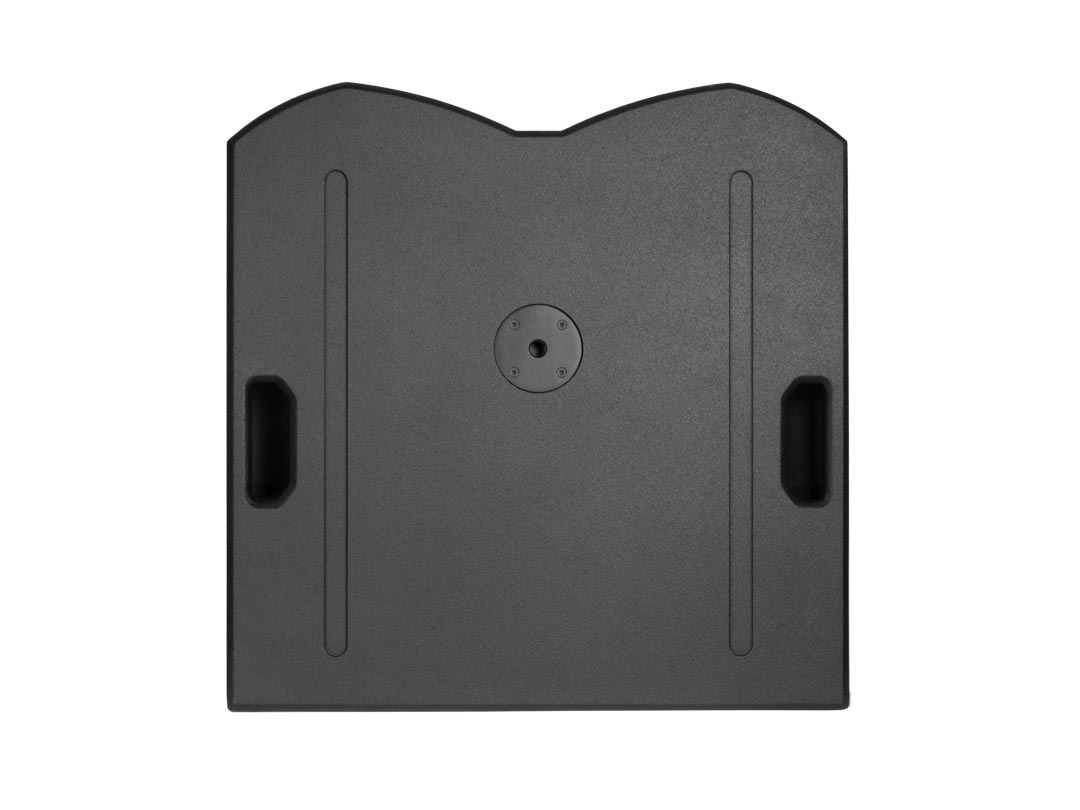

S18W
The new version of the compact and powerful 18” subwoofer, toned down frequency response, hits lower bass notes under a new amplification profile.
Integrated power & control with multiple presets
Integrated cardioid presets
Easy rigging & installation accessories
High resistance polyurea® finish| Amplifier program power | 2500 W Class D |
|---|---|
| Input sensitivity | 2 dBu – 1V |
| Input impedance | 50 KΩ Balanced |
| Mains | Universal switch mode Power Supply 85-265 V / 45-65 Hz |
| Average current draw | 4.5 A (Heavy duty musical program) |
| SPL (1m) | 132 dB musical program, 135 dB peak |
| Built-in DSP | 64-bit processing unit. Includes factory presets. |
| AD/DA converters | 24 bit – 48 kHz |
| Standby mode consumption | 8 W @230VAC |
| Adjustable delay line | 294 ms / 100 m |
| Crossover frequency | 80 Hz / 90 Hz / 100 Hz |
| Frequency response (-10 dB) | 33 Hz – 140 Hz (LPF100) |
| Components LF | 18” neodymium woofer (4” voice coil) |
| Directivity (-6dB) | Omnidirectional |
| Weight | 56 kg |
| Dimensions (HxWxD) | 555 x 740 x 748 mm |
| Finish | Multilayer birch plywood with high resistant black Polyurea® coating |
| Grille | 2 mm powder coated steel with black acoustic mesh |

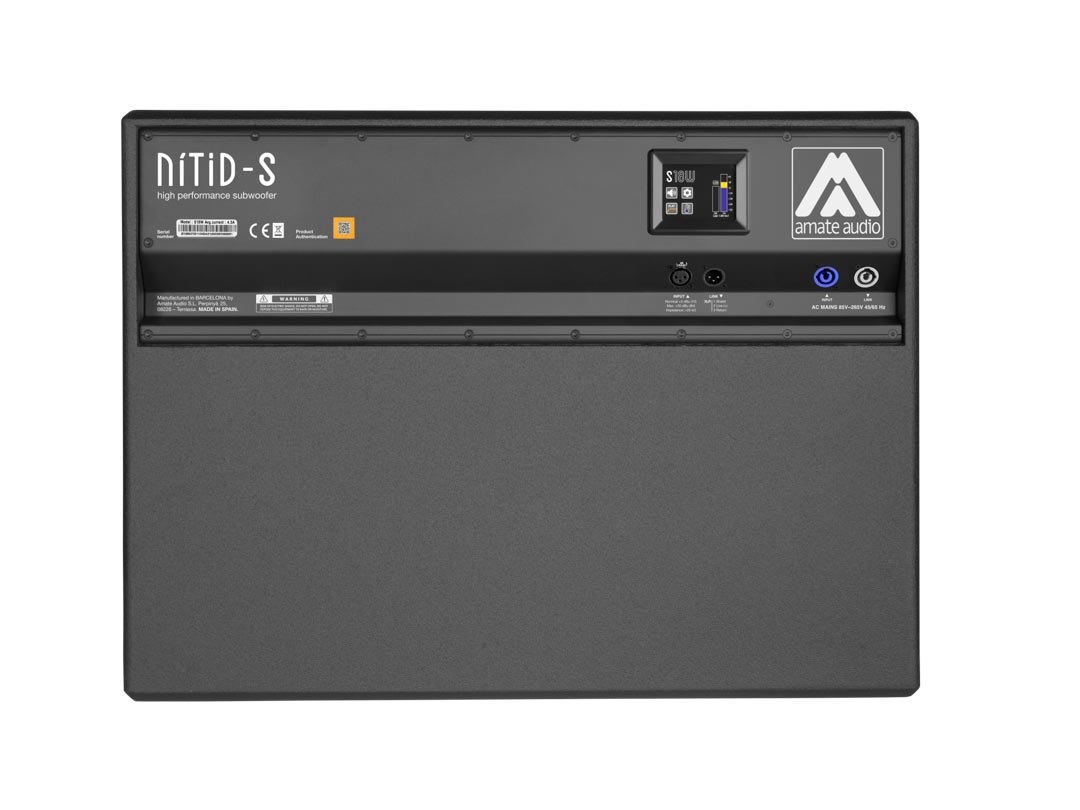

| Connectors | 1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link |
Protection Cover
NC-XW118 - for S18W and S18WP

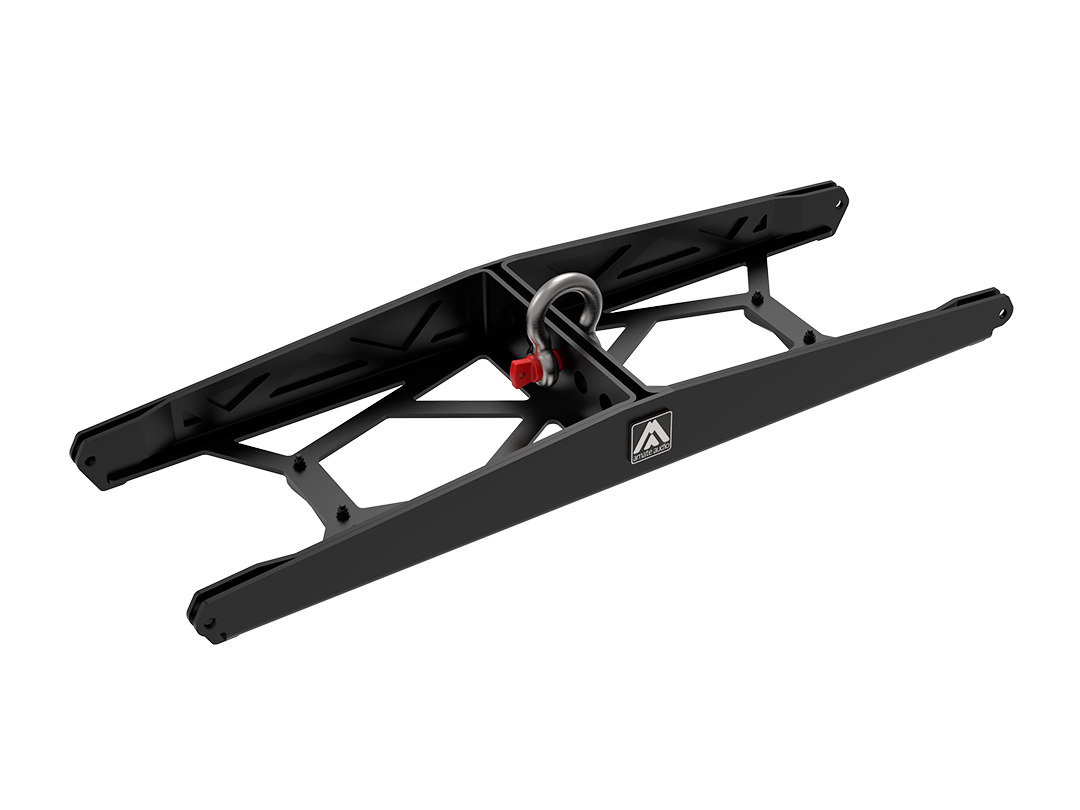

Bumper Rigging
BRWX - for S18W and S18WP
Telescopic Distance Rod
SP/CRTL - for S18W and S18WP

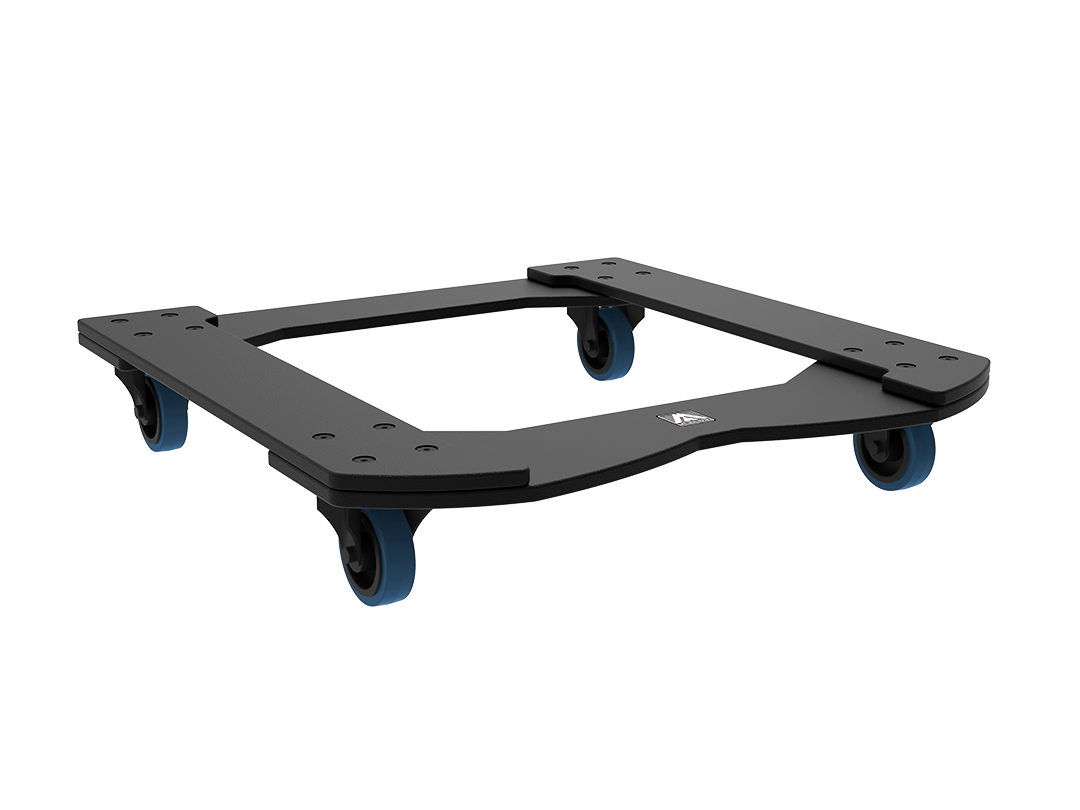

Trolley
TR-XW118 - for S18W and S18WP
S18W
The new version of the compact and powerful 18” subwoofer, toned down frequency response, hits lower bass notes under a new amplification profile.
TOUCHSCREEN CONTROL Integrated DSP and Class D amplification
Amate Audio’s latest-generation DSP system management is fully integrated with 3rd-generation Class D amplification.
The color touchscreen enables intuitive operation and monitoring, with access to powerful presets engineered by Amate Audio’s R&D team to instantly configure Nítid loudspeakers for most common applications within seconds, prior to rigging or installation.
