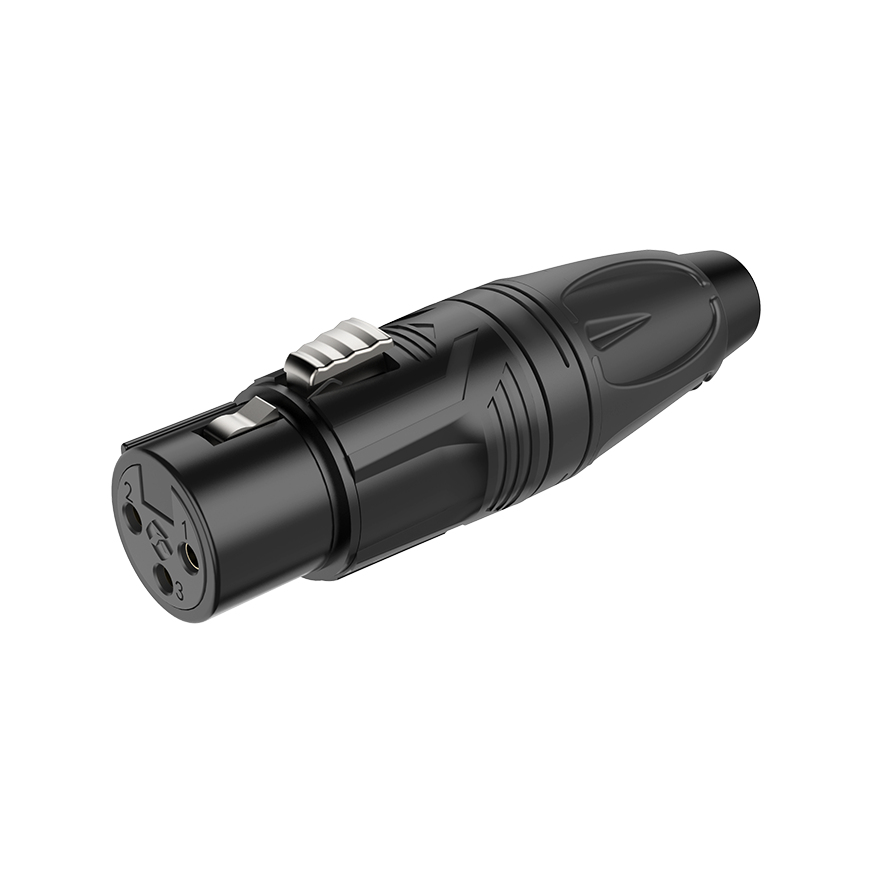

RX3F
The RX3F is a professional 3-pole XLR female connector designed for demanding audio applications. Built with a rugged zinc alloy die-cast housing and a PA 30% glass fiber reinforced bushing, it delivers exceptional durability and reliable performance. Its ergonomic heavy-duty design features an improved large latch button for secure locking, a replaceable color ring for easy channel identification, and a special strain-relief clamp that accommodates cable diameters from 4 mm to 6.8 mm. The connector is patent-protected and available with either nickel-plated housing and tin-plated contacts or black housing with gold-plated contacts.
| Product Type | 3-Pole XLR Female Connector |
|---|---|
| Housing Material | Zinc Alloy Die-Cast |
| Insert Material | PBT / PA6 30% GF |
| Contacts Material | Bronze |
| Contact Plating | Tin or Gold |
| Strain-Relief Clamp | POM |
| Bushing Material | PA 30% GF |
| Coding Ring Material | PA6 30% GF |
| Cable Diameter | 4 mm – 6.8 mm |
| Design | Ergonomic Heavy-Duty |
| Locking Mechanism | Improved Large Latch Button |
| Color Identification | Replaceable Color Ring |
| Protection | Patent-Protected Design |
