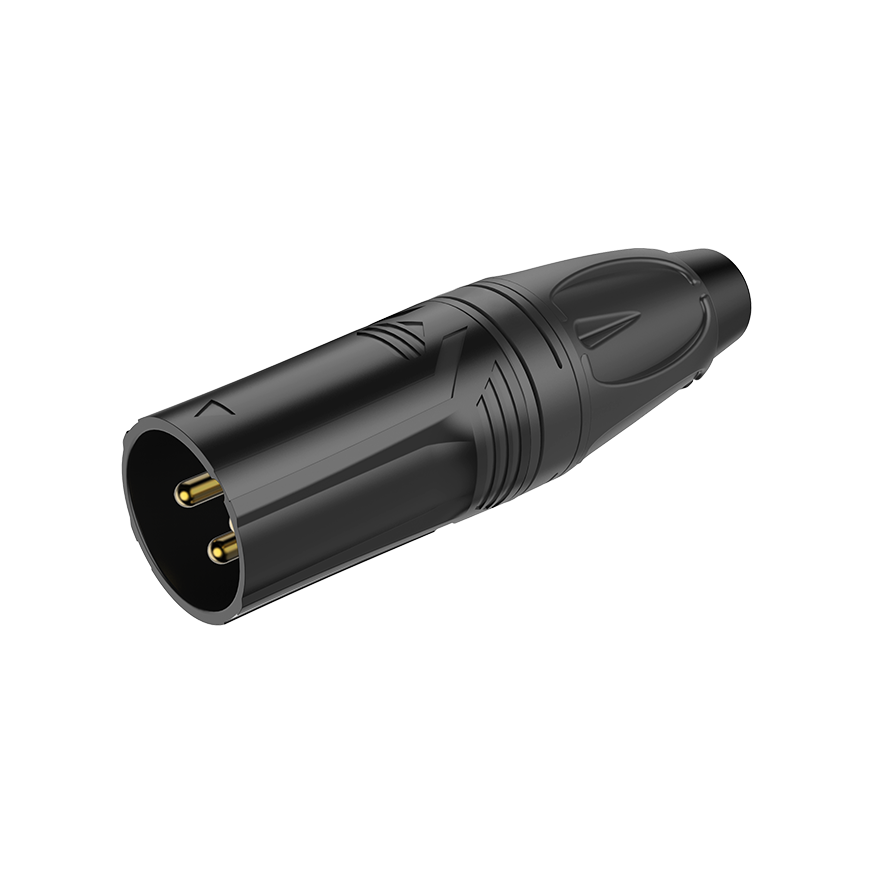

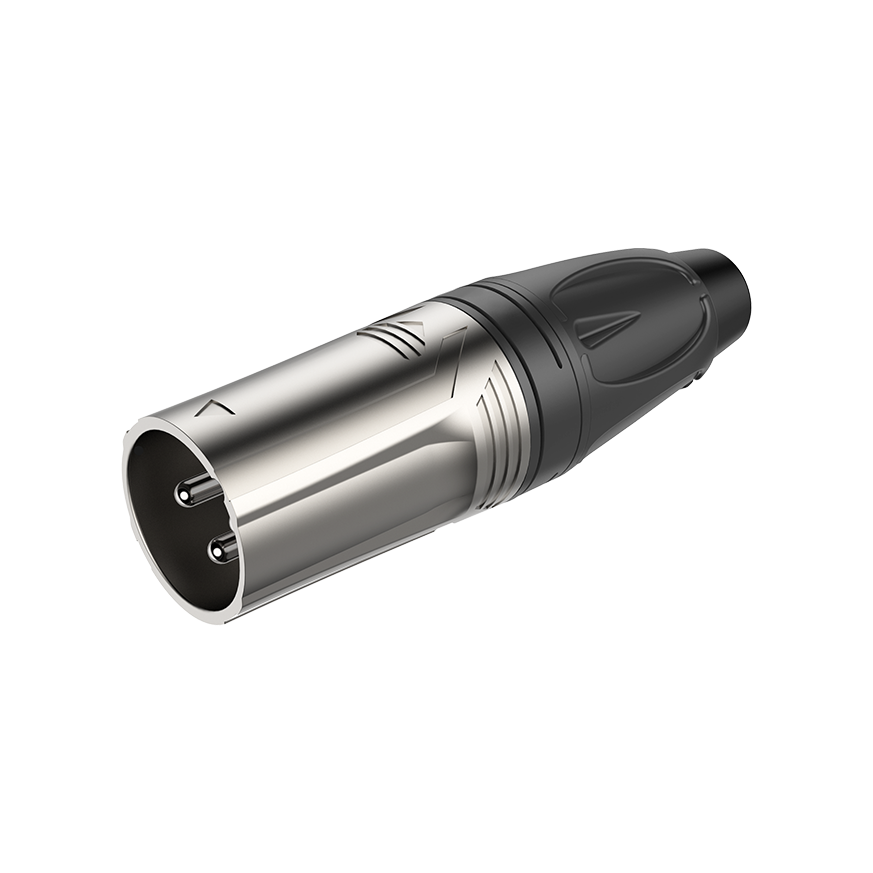

RX3M
The RX3M is a professional 3-pole XLR male connector designed for superior performance in live sound, studio recording, and broadcast applications. Featuring a rugged zinc alloy die-cast housing and a PA 30% glass fiber reinforced bushing, it delivers exceptional durability and long-term reliability. The connector is engineered without a locking window, increasing housing strength, while its gear and fluting contact pin design prevents pin movement for enhanced connection stability. A replaceable color coding ring and an innovative strain-relief clamp support cable diameters from 4 mm to 6.8 mm, making installation quick and secure.
| Product Type | 3-Pole XLR Male Connector |
|---|---|
| Connector Type | XLR Male |
| Housing Material | Zinc Alloy Die-Cast |
| Insert Material | PBT / PA6 30% GF |
| Contact Material | Brass |
| Contact Plating | Tin or Gold |
| Strain Relief Material | POM |
| Bushing Material | PA 30% GF |
| Coding Ring Material | PA6 30% GF |
| Supported Cable Diameter | 4 mm – 6.8 mm |
| Housing Finish | Nickel-Plated or Black |
