G7

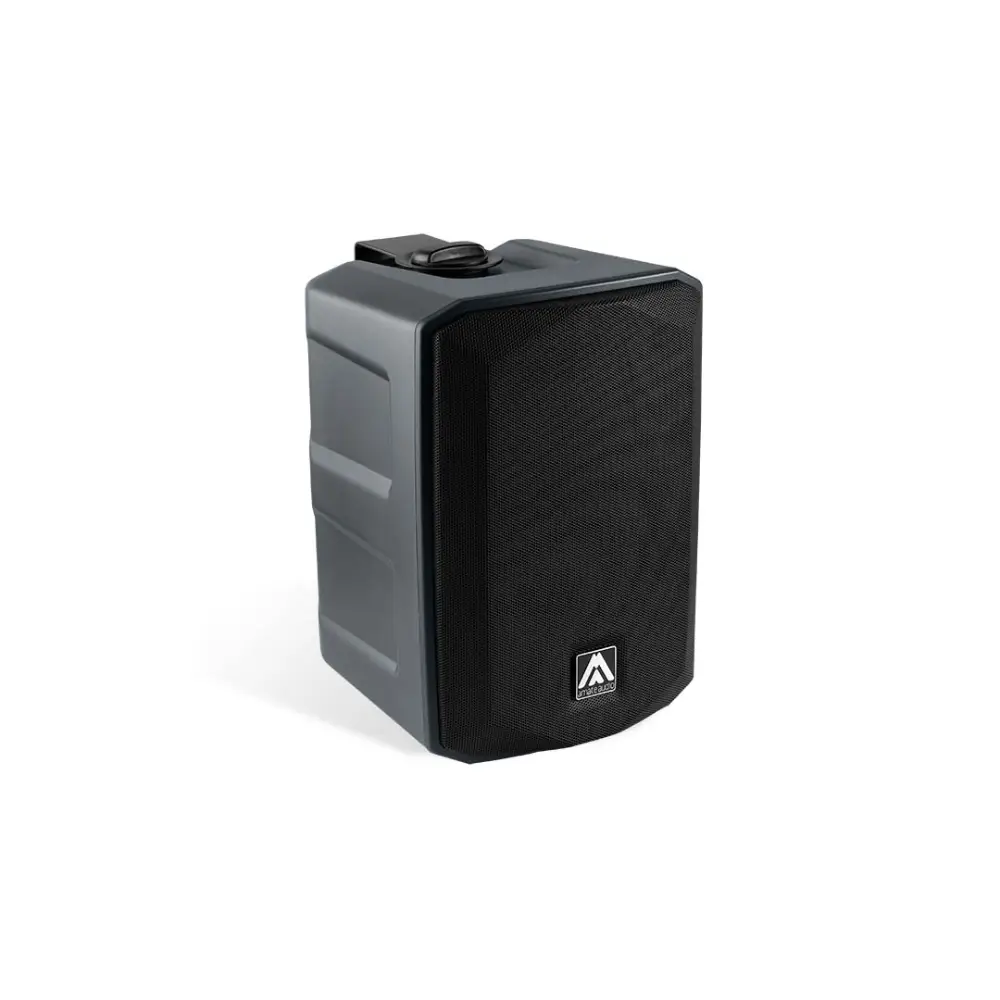

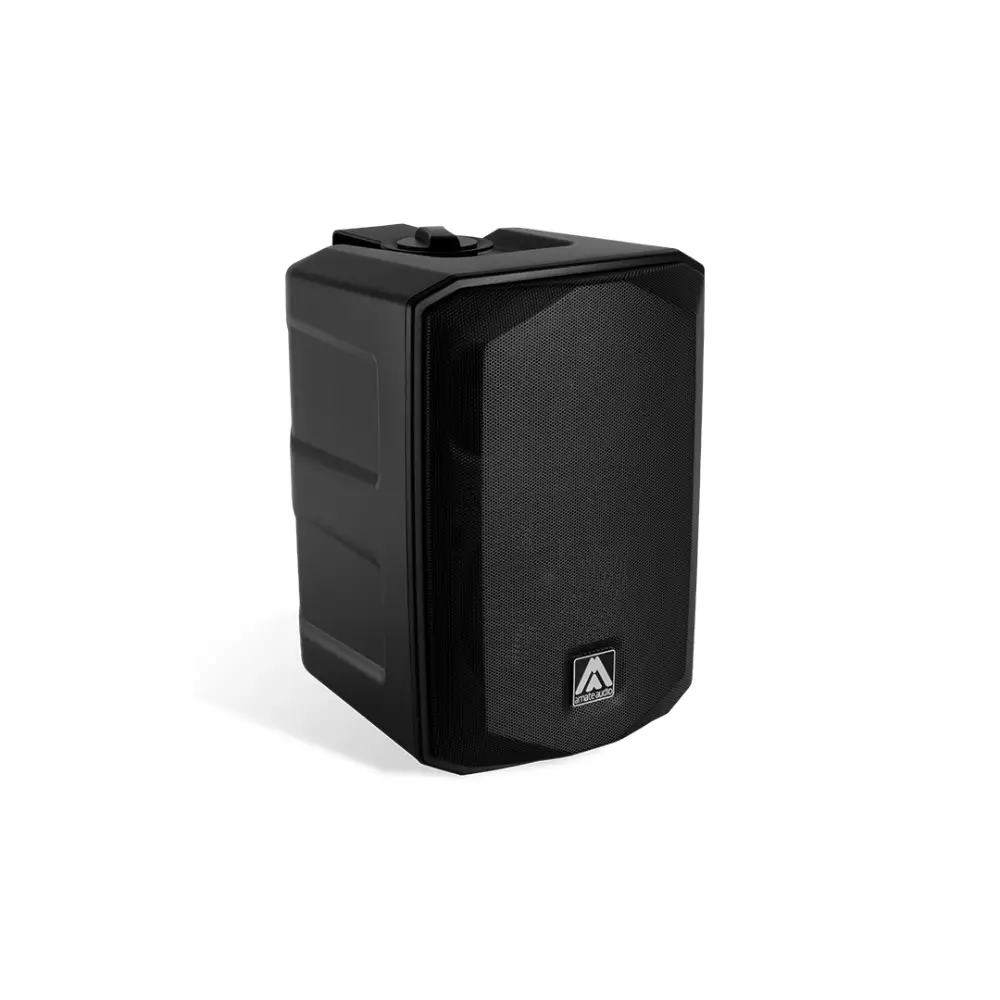

The G7 is a premium installation loudspeaker with a unique, exclusive Amate Audio design and exceptional sound quality and sonic performance from a speaker of its configuration.
Light Neodymium HF Unit
Carbon Fiber Cone
Aluminium Grille

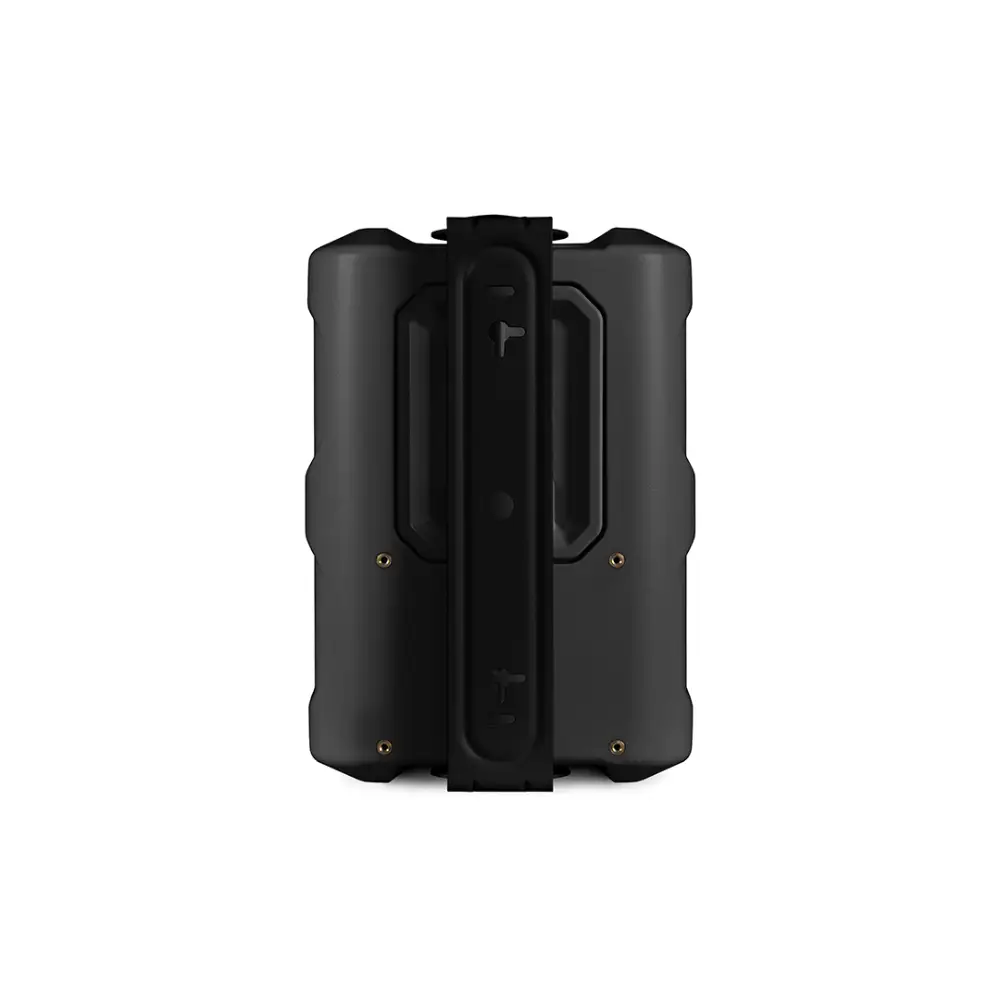

Accessories for easy installations| Program Power | 120 W |
|---|---|
| Impedance | 16 Ω |
| SPL(1W/1m) | 91 dB |
| Maximum SPL (continuous/1m) | 112 dB |
| Frequency Response (-10dB) | 60 Hz – 20 kHz |
| LF | 6.5” woofer with carbon fiber cone (1” voice coil) |
| HF | 1” titanium diaphragm neodymium tweeter |
| Directivity (HxV) | 80º x 80º |
| Dimensions (HxWxD) | 296 x 209 x 218 mm |
| Weight | 3.6 Kg / 4.1 Kg (with T-G7) |

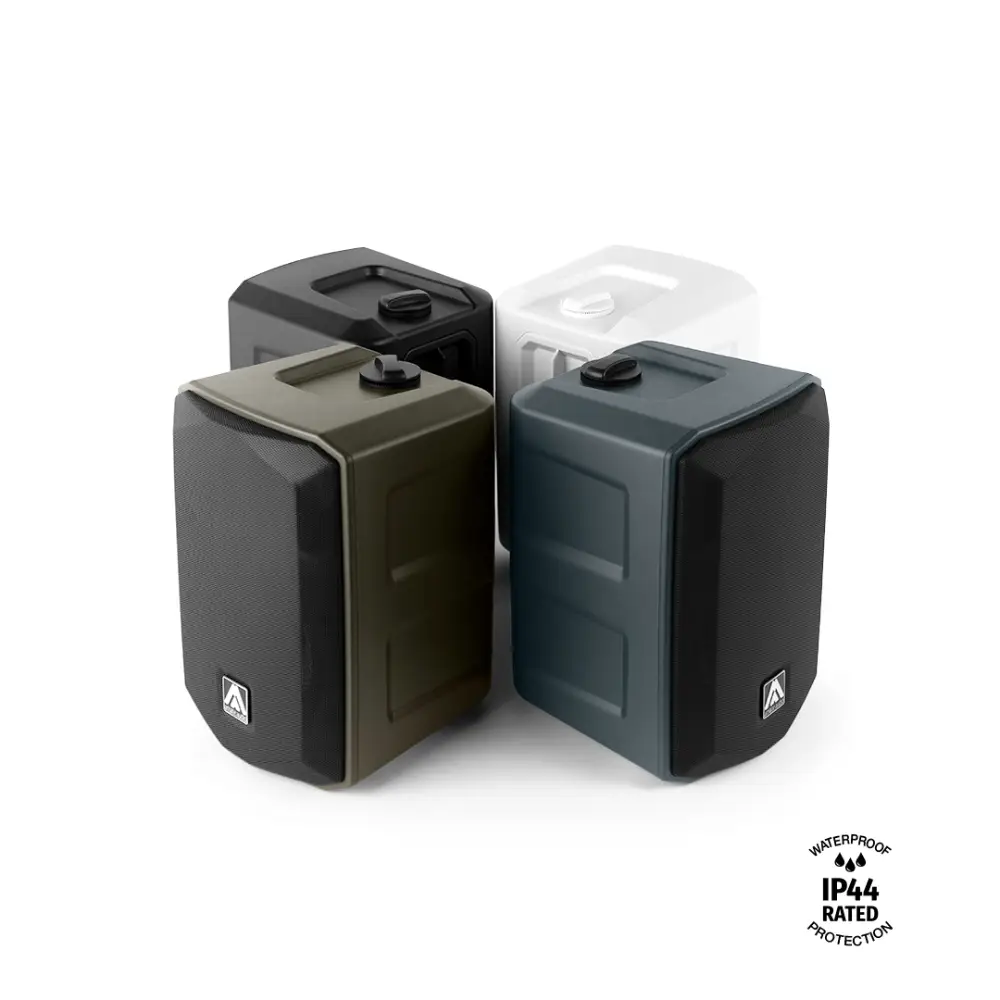

| Finish | Technical ABS black/white/titanium/anthracite (EN54-24 certifiable) |
| Grille | Aluminium |
| Connectors | Pushing terminals |
G7
The G7 is a premium installation loudspeaker with a unique, exclusive Amate Audio design and exceptional sound quality and sonic performance from a speaker of its configuration.
Elegance of Form Design that looks as good as it sounds

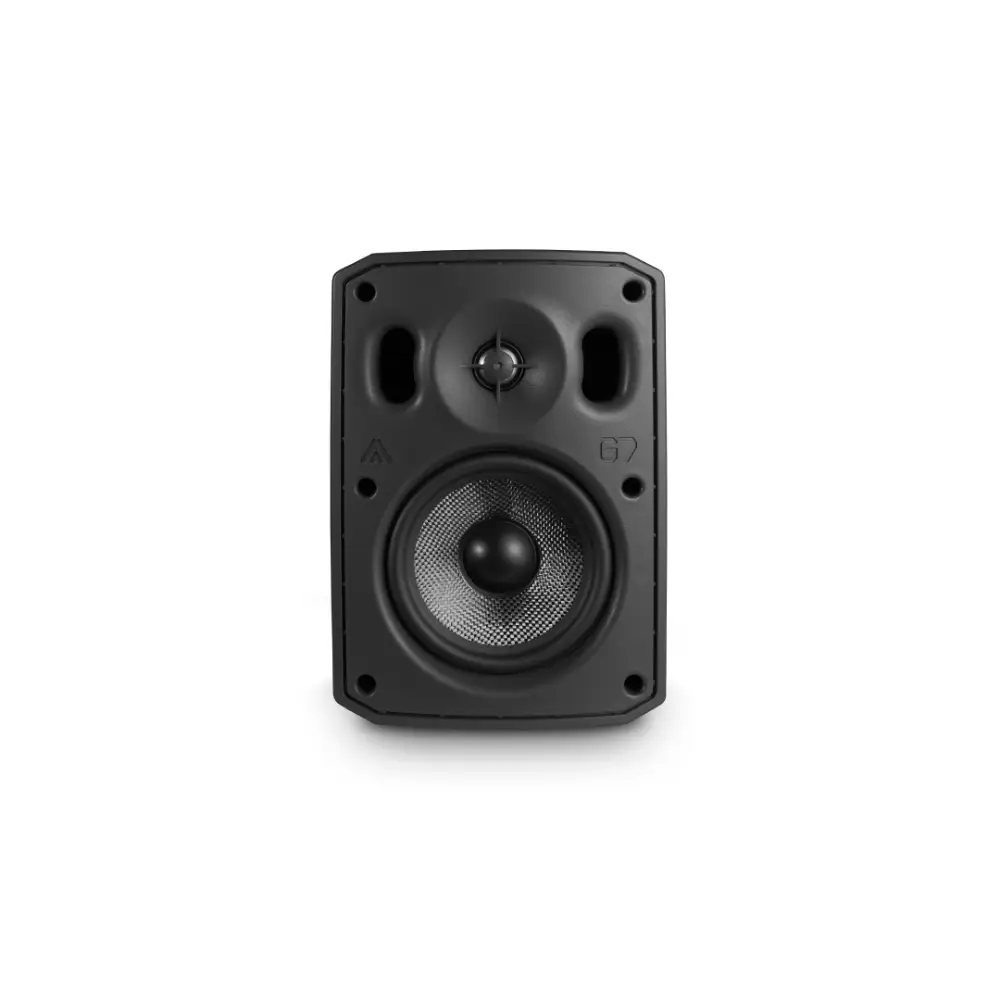

The G7 is a two-way system in an IP44-rated, EN54-24 certifiable reinforced ABS enclosure. Its signature hexagonal mould, unique to Amate Audio, delivers both visual elegance and sonic excellence. Key components include a 6.5” carbon-fibre woofer, 1” titanium dome neodymium tweeter, and premium aluminium grille and hardware.
Flexible Power Options Adaptable for any installation

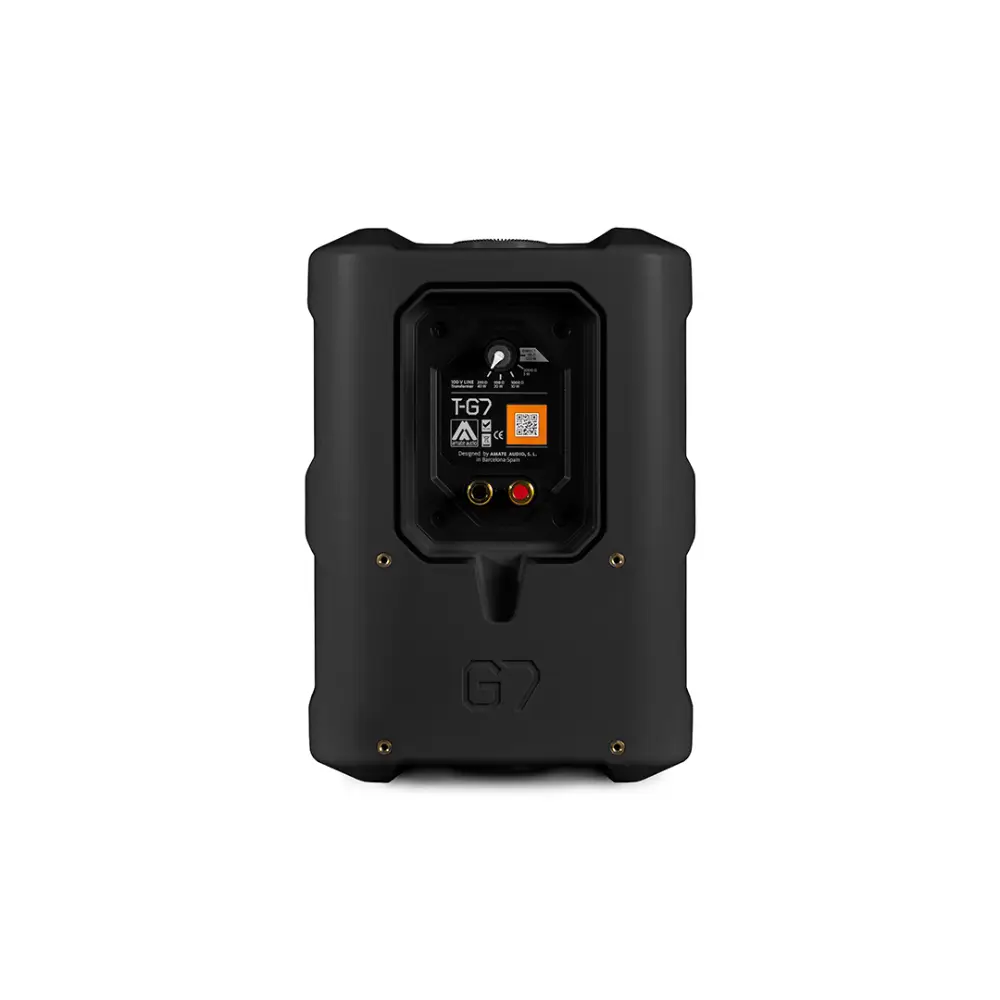

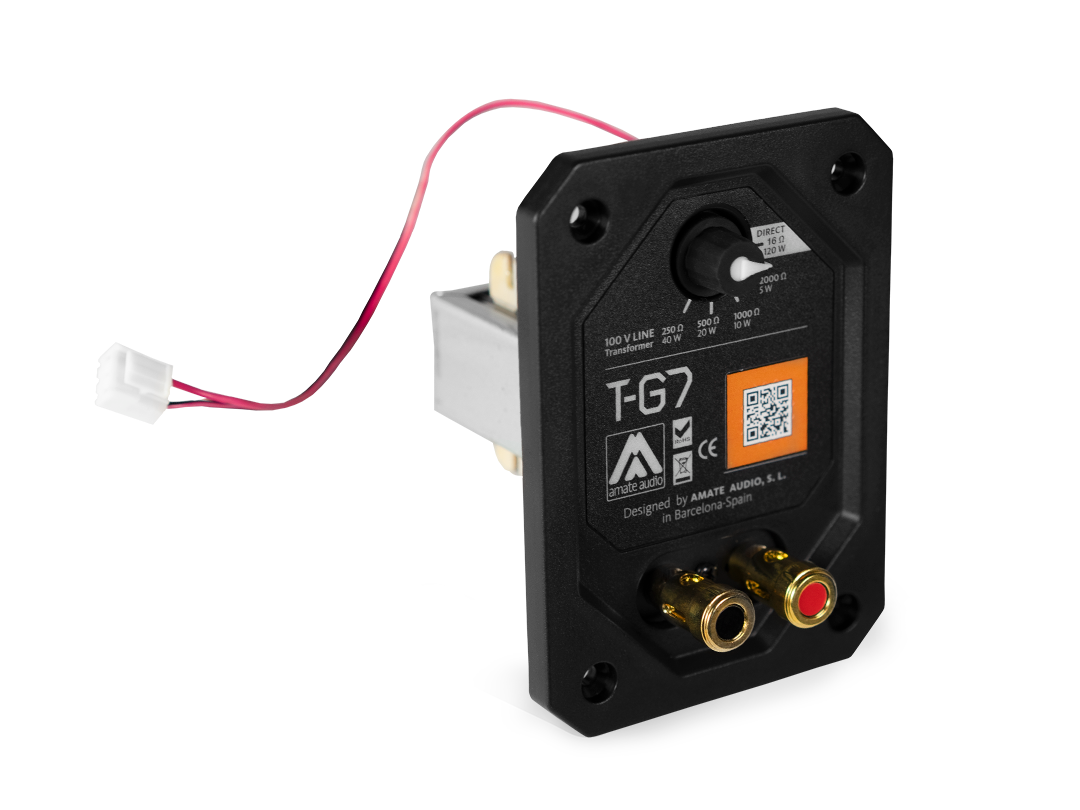

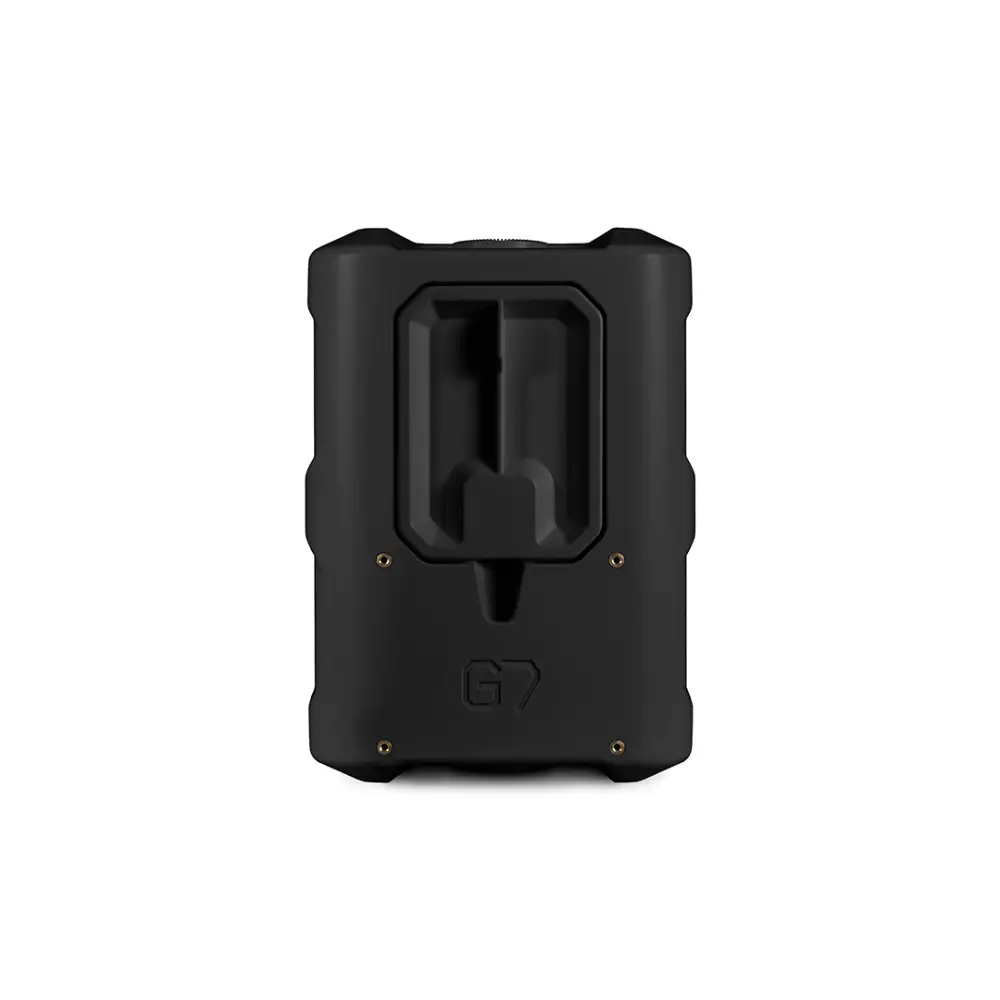

The G7 supports both low-impedance and 100V line applications. Simply unscrew the rear connector plate and replace it with a T-G7 transformer plate to enable 100V line use, with switchable power settings of 5 W, 10 W, 20 W, or 40 W.
