VEO-MXH88D

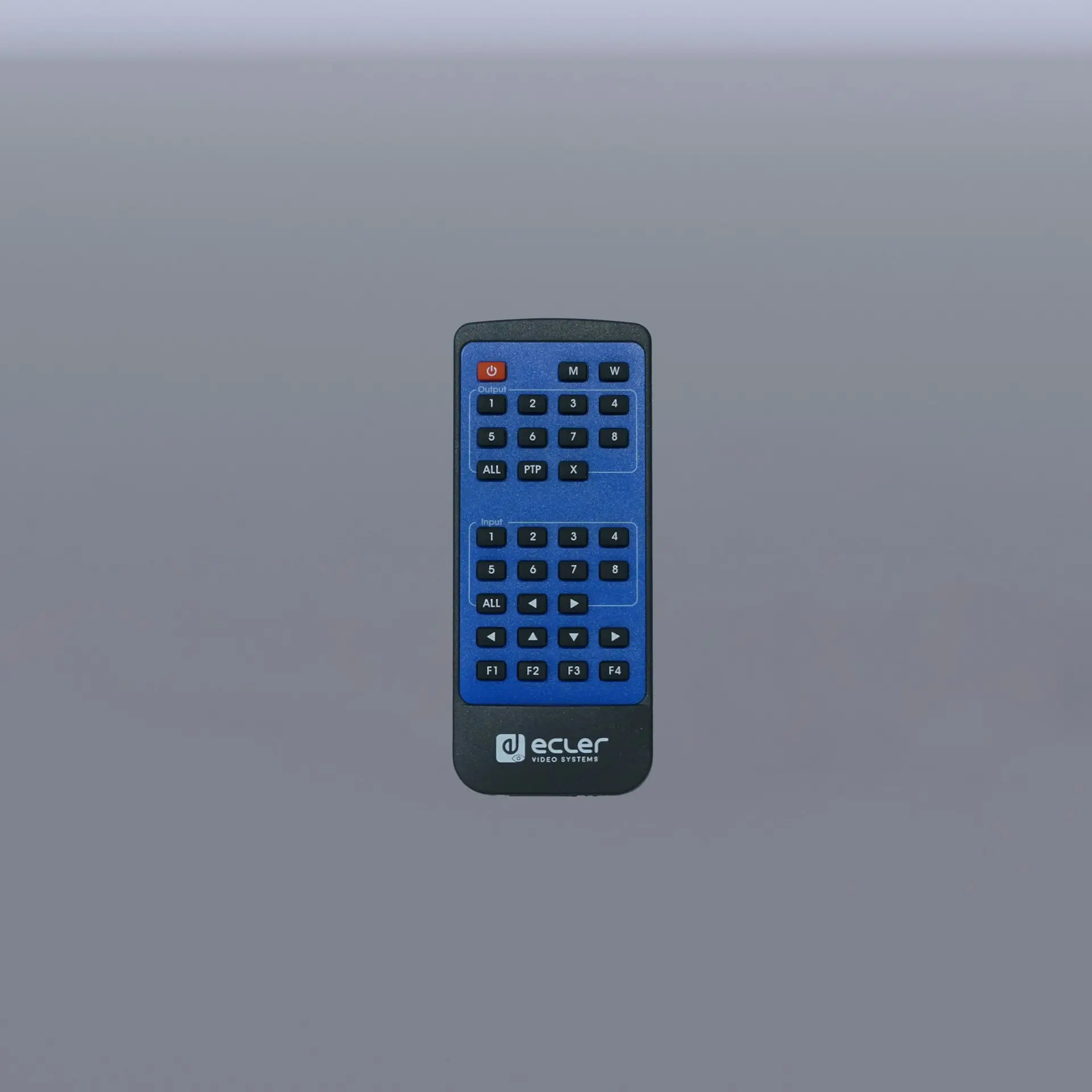

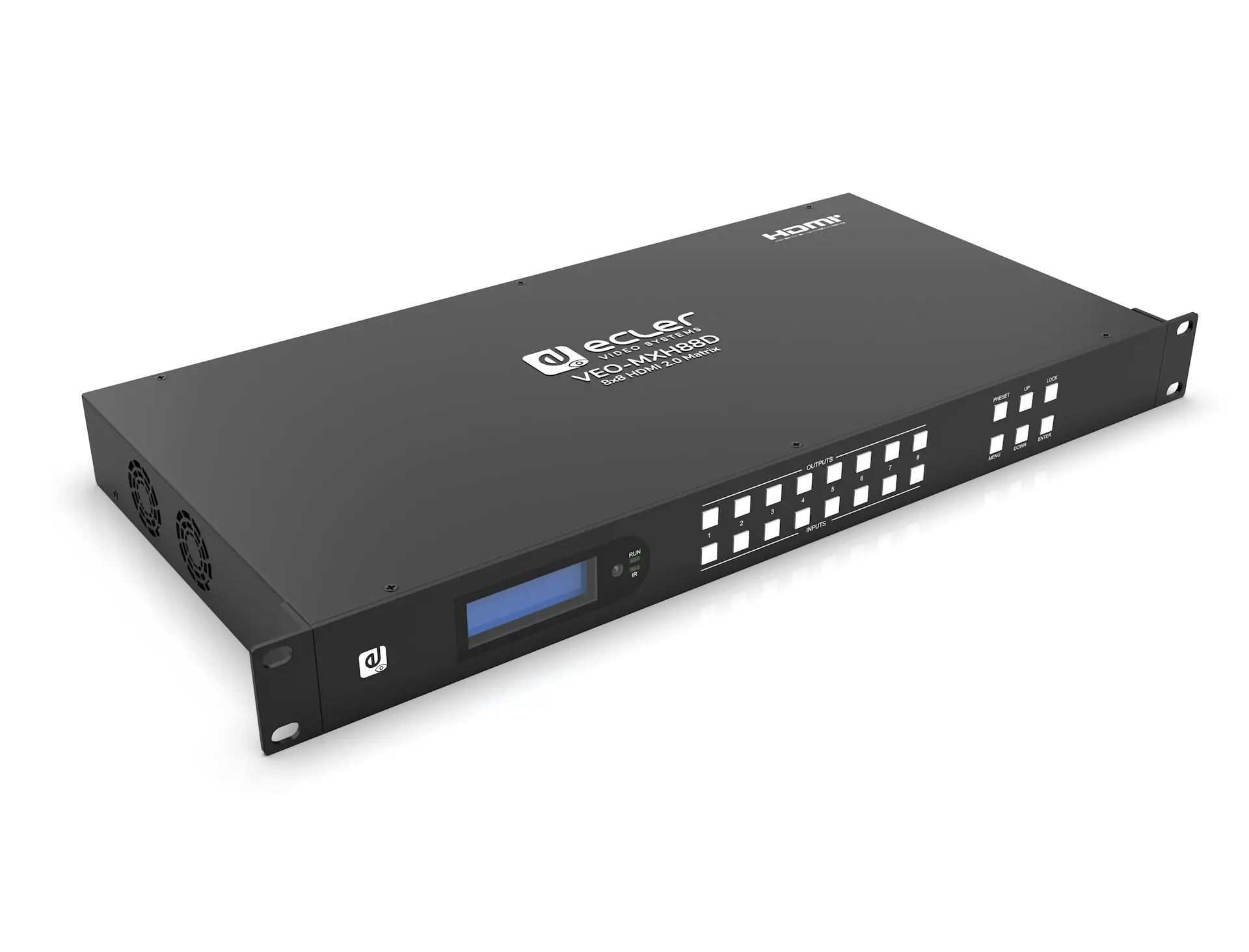

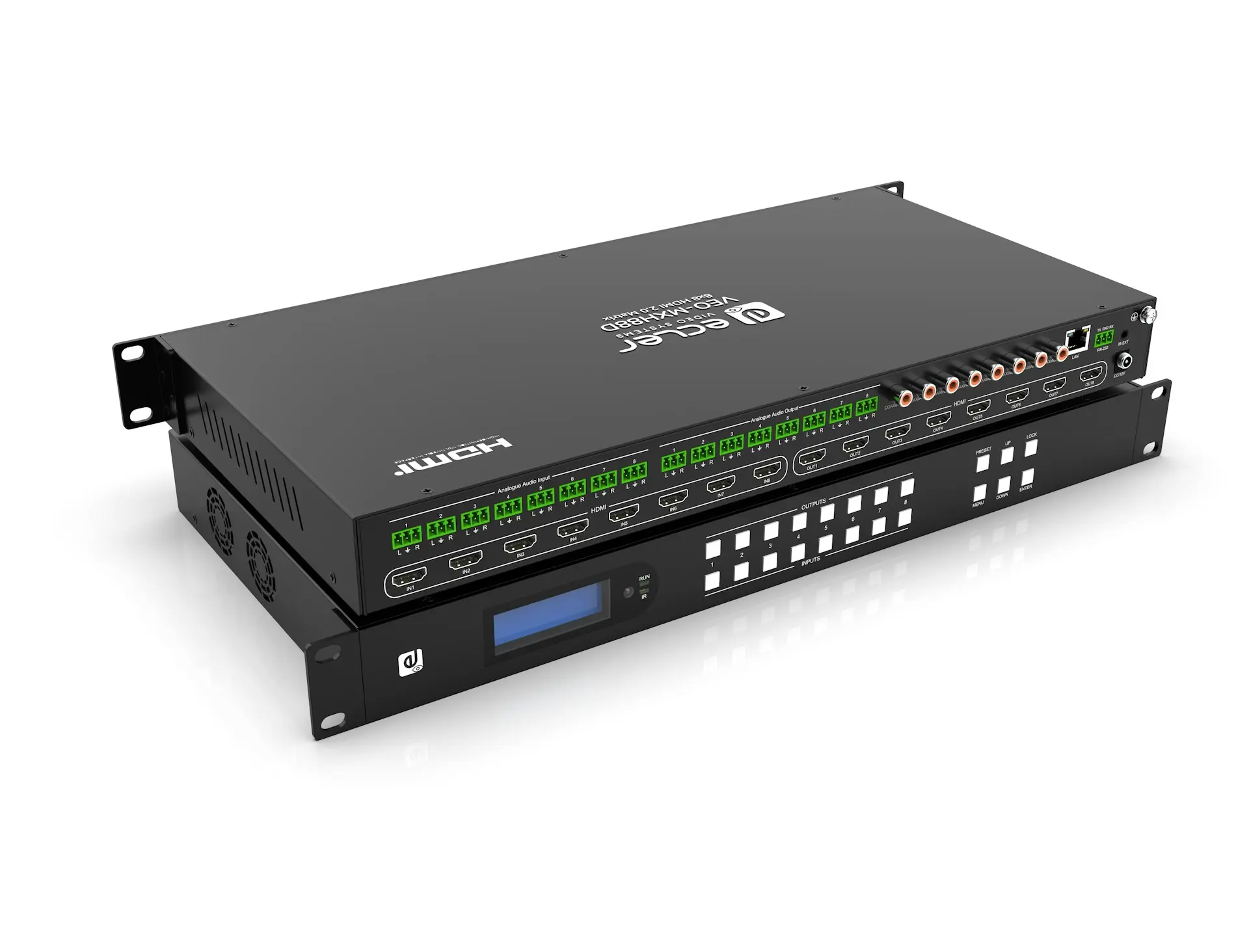

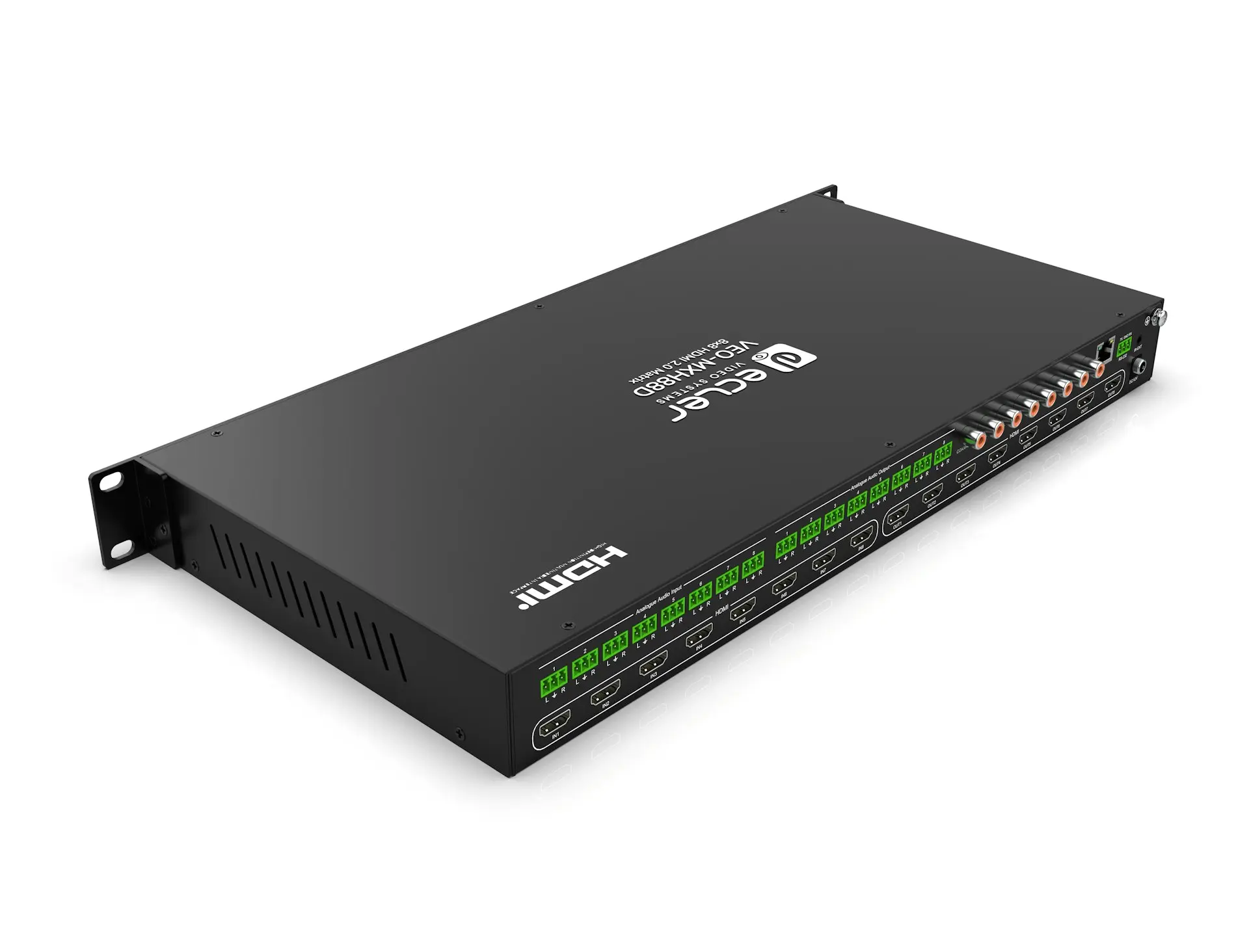

VEO-MXH88D is an 8×8 HDMI® matrix designed to handle high-quality video and audio signals. It supports up to 4K/UHD video resolution at 60 Hz with 4:4:4 chroma sampling. VEO-MXH88D offers 8 analogue audio inputs and 16 analogue and digital audio de-embedding outputs, allowing for flexible audio management. The device features EDID management, which ensures optimal compatibility between connected devices, an LCD display and an integrated WebGUI, providing a user-friendly interface for configuration and control of the unit as well as, multiple other options for addressing HDMI® sources, including the frontal panel’s selection buttons, serial commands, TCP/IP, and IR (infrared) control. The VEO-MXH88D is compliant with HDCP 2.2 and 1.4. This makes it suitable for professional applications that require secure handling of video and audio signals. Furthermore, supports for up to 8 presets allows for quick and convenient recall of specific configurations.
| Video Input Connectors | 8 x HDMI® Type A Female, 18 Gbps |
|---|---|
| Video Output Connectors | 8 x HDMI® Type A Female, 18 Gbps |
| Video Input Resolutions | 480p@60hz, 576p@50hz, 720p@60hz, 1080p@24hz, 1080p@50hz, 1080p@60hz, 4K@24hz, 4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4 |
| Video Output Resolutions | 480p@60hz, 576p@50hz, 720p@60hz, 1080p@24hz, 1080p@50hz, 1080p@60hz, 4K@24hz, 4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4 |
| Chroma Subsampling | YUV 4:4:4, YUV 4:2:0 (4K @ 60Hz) |
| Colour Depth | 8-bit, 10-bit, 12-bit |
| Colour Space | RGB, YUV |
| HDCP | 2.2 |
| HDR | HDR10, Dolby Vision, HLG |
