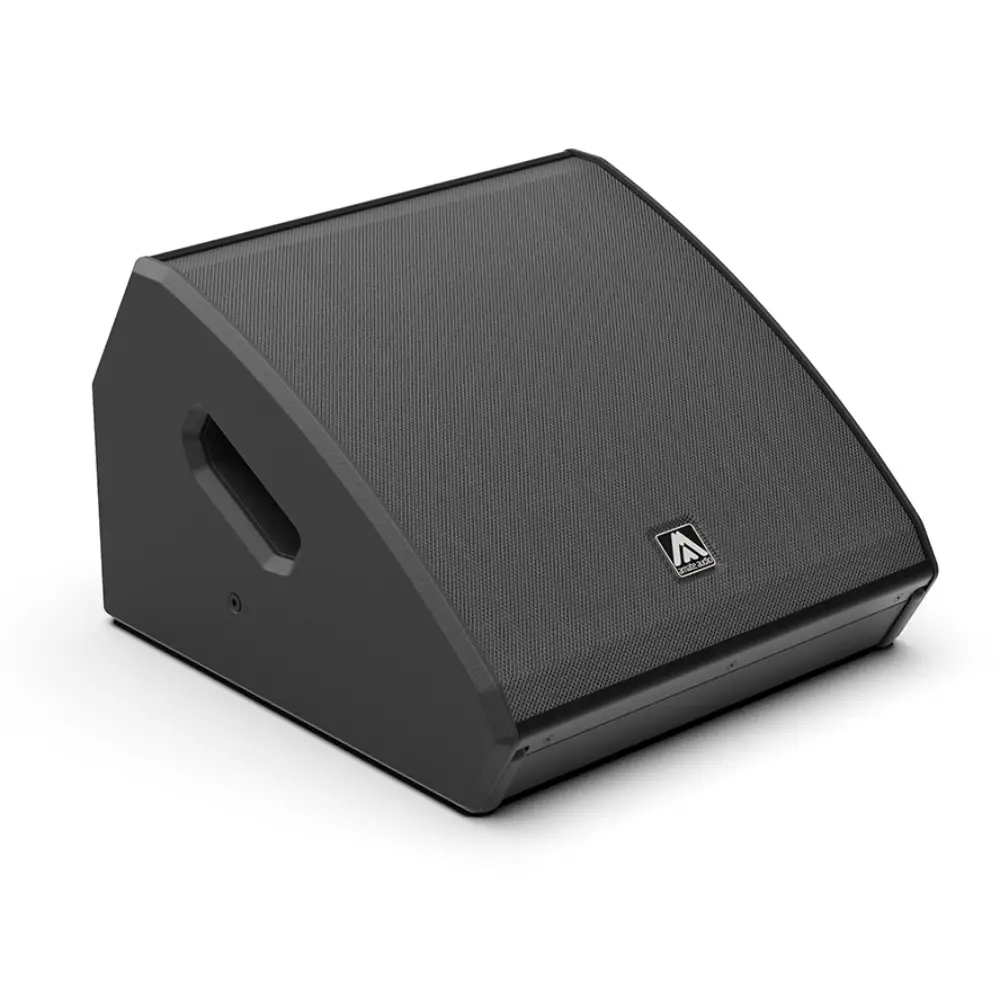

XM82
The first stage monitor in the XCELLENCE series. True to the principles of the series, it delivers exceptional power and clarity, thanks to its state-of-the-art transducers which, at maximum output, reduce distortion by up to 30% compared to current monitors.
Multiple presets
> 250 V Overvoltage protection
Exclusive high-performance asymmetrical dispersion horn
Light neodymium components| Amplifier program power | 2500 W (LF) + 500 W (HF) Class D Bi-amplified |
|---|---|
| Analog input | Nominal: +8 dBu. Max: +20 dBu. Impedance: 20 kΩ Balanced |
| Audio networking | Dante™ audio networking input, 1 channel, 48kHz |
| Mains | Universal switch mode Power Supply 85-265 V / 45-65 Hz |
| Average current draw | 2,9 A (Heavy duty musical program) |
| SPL (1m) | 132 dB continuous, 135 dB peak |
| Built-in DSP | 64- bit processing unit. Includes factory presets |
| AD/DA converters | 24 bit – 48 kHz - SNR >112dB |
| Presets | MONITOR, FR_FLAT, HPF90 + 25 configurable user memories |
| Frequency response (-10 dB) | 70 Hz – 19 kHz |
| LF | 2x 8" neodymium woofers (2" long excursion dual voice coil) |
| HF | 1 x 1.7" HT polymer diaphragm, neodymium magnet compression driver |
| Directivity (-6 dB) | 50º to 100º (H) x 55º (V) |
| Dimensions (HxWxD) | 345 x 490 x 530 mm |
| Weight | 20 kg |
| Finish | Multilayer baltic birch plywood with high resistant black Polyurea® coating and protective rubber profiles |
| Grille | 2 mm steel with grey micro-foam cloth |
| Connectors | 1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link / 1x EtherCon® RJ45 input / 1x EtherCon® RJ45 link |
Flight Case
FC-XM82 - for two units of XM82
Telescopic Distance Rod
SP/CRTL- for XM82
XM82
The first stage monitor in the XCELLENCE series. True to the principles of the series, it delivers exceptional power and clarity, thanks to its state-of-the-art transducers which, at maximum output, reduce distortion by up to 30% compared to current monitors.
Built-In DSP Control
Advanced 64-bit DSP with dedicated monitor presets, factory tuning, and 25 user memories for precise on-stage sound shaping.
High-Power Bi-Amplified
2500 W LF + 500 W HF Class-D bi-amplified design, delivering high headroom and consistent performance for demanding stage monitoring.
Ultra-Clear Audio
Dual 8″ neodymium woofers paired with a 1.7″ compression driver and an exclusive high-performance asymmetrical dispersion horn for exceptional clarity with up to 30% reduced distortion at maximum output.
Rugged & Reliable
Multilayer Baltic birch plywood enclosure with high-resistance Polyurea® coating, protective rubber profiles, and >250 V overvoltage protection for reliable touring and stage use.
Versatile Connectivity
Balanced XLR audio I/O, PowerCon® power linking, EtherCon® RJ45 connectivity, and integrated Dante™ audio networking ensure seamless integration into modern stage and PA systems.
Peak Performance
Up to 132 dB continuous and 135 dB peak SPL with flexible coverage (50º–100º H x 55º V), optimized for professional stage monitoring applications.
