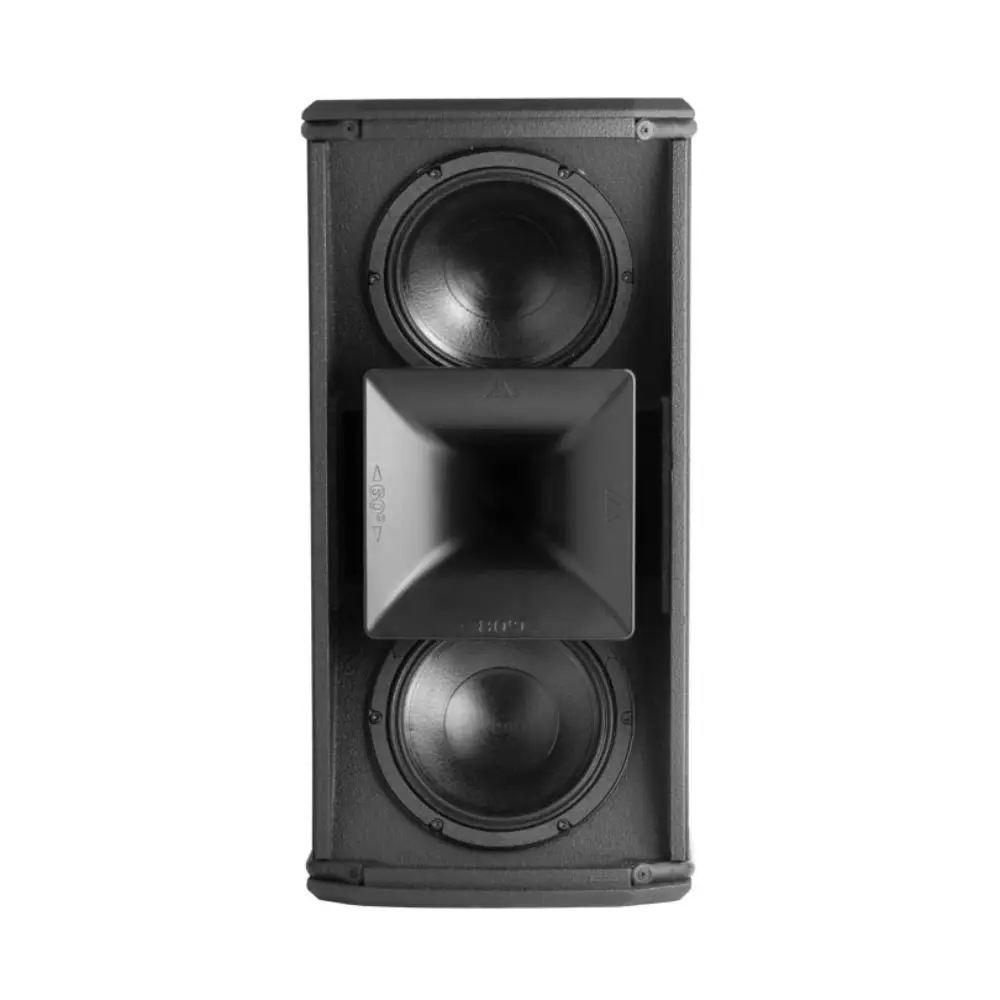

X82FD
The X82FD constitutes a significant improvement in high-performance point source design, featuring a lightweight and compact 8″ format based on the successful 2×10″ concept of the best-selling X102FD. This model is engineered to deliver outstanding acoustic power with exceptional vocal articulation. In its reduced dimensions, the X82FD achieves remarkable maximum SPL levels. The perfect choice for medium-sized applications requiring high sound quality and efficient space utilization, setting new standards in portability and acoustic performance.
Multiple presets
Coaxial speaker
> 250 V Overvoltage protection
Light neodymium components| Amplifier program power | 2500 W (LF) + 500 W (HF) Class D Bi-amplified |
|---|---|
| Analog input | Nominal: +8 dBu. Max: +20 dBu. Impedance: 20 kΩ Balanced |
| Audio networking | Dante™ audio networking input, 1 channel, 48kHz |
| Mains | Universal switch mode Power Supply 85-265 V / 45-65 Hz |
| Average current draw | 2.9 A (Heavy duty musical program) |
| SPL (1m) | 134 dB continuous, 137 dB peak |
| Built-in DSP | 64- bit processing unit. Includes factory presets |
| AD/DA converters | 24 bit – 48 kHz - SNR >112dB |
| Presets | FR_FLAT, FR_LONGTHROW, HPF90_FLAT, HPF90_LONGTHROW + 25 configurable user memories |
| Frequency response (-10 dB) | 68 Hz – 19 kHz |
| LF | 2x 8" neodymium woofers (2" long excursion dual voice coil) |
| HF | 1x 3” titanium diaphragm, neodymium magnet compression driver |
| Directivity (-6 dB) | 80º(H) x 60º(V) |
| Dimensions (HxWxD) | 624 x 303 x 402 mm |
| Weight | 23 kg |
| Finish | Multilayer baltic birch plywood with high resistant black Polyurea® coating and protective rubber profiles |
| Grille | 1.5 mm steel with grey micro-foam cloth |

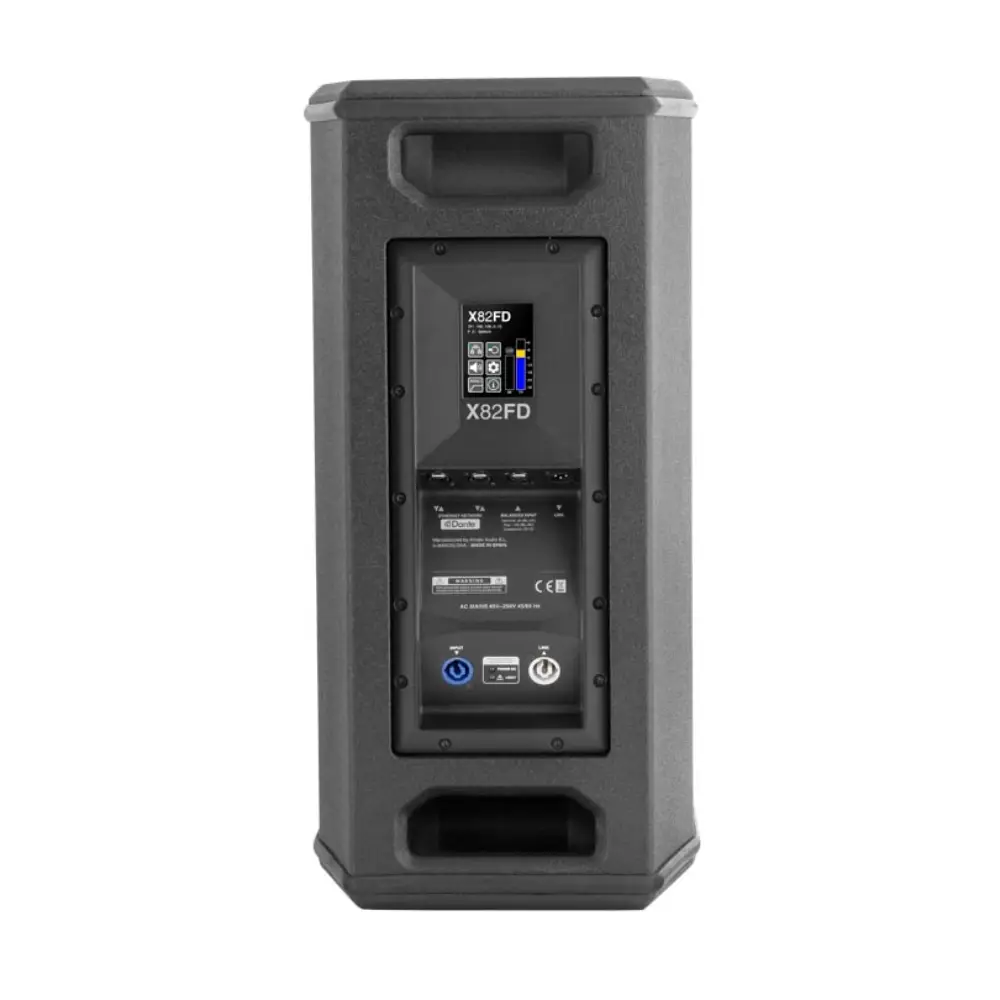

| Connectors | 1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link / 1x EtherCon® RJ45 input / 1x EtherCon® RJ45 link |
Flight Case
FC-X82FD - for two units of X82FD
Telescopic Distance Rod
SP/CRTL- for X82FD
M8 Rigging Eyebolt
ACR-M8 - for X82FD
Protective Cover
NC-X82FD for X82FD
X82FD
The X82FD constitutes a significant improvement in high-performance point source design, featuring a lightweight and compact 8″ format based on the successful 2×10″ concept of the best-selling X102FD. This model is engineered to deliver outstanding acoustic power with exceptional vocal articulation. In its reduced dimensions, the X82FD achieves remarkable maximum SPL levels. The perfect choice for medium-sized applications requiring high sound quality and efficient space utilization, setting new standards in portability and acoustic performance.
Software – DSP Studio 3 DSP Studio 3 gives you powerful remote control over Xcellence ACTIVE+ systems via Ethernet or Wi-Fi.
Featuring intelligent limiters, ECO mode, tilt sensor calibration, advanced FIR/IIR filtering, up to 200 m delay, and real-time power and temperature monitoring, it ensures reliable performance and total control in any professional environment.
Built-In Mixer
Integrated mixer designed by the company, offering ultimate control and flexibility.
High-Power Bi-Amplified
1000 W LF + 500 W HF for crystal-clear, full-range sound
Ultra-Clear Audio
14″ neodymium woofer and 3″ titanium HF driver for deep bass and pristine highs
Rugged & Reliable
Baltic birch plywood with protective coating ensures durability in demanding environments.
Versatile Connectivity
XLR, PowerCon®, and Dante™ networking ready for seamless setup
Peak Performance
Up to 132 dB SPL for professional stage and PA applications
