X212AFD
The X212AFD is the flagship of the Xcellence series and the epitome of audio perfection performance. Breakthrough technologies, cutting-edge acoustic design, the highest quality, precision-engineered, in-built DSP with F.I.R filters, taylor-made components and materials and Dante networking.
Multiple presets
Exclusive High Performance Waveguide
Light Neodymium Components
> 250 V Overvoltage Protection| Amplifier program power | 2000 W (LF) + 1000 W (MF) + 1000 W (HF) Class D Tri-amplified |
|---|---|
| Input sensitivity | 8 dBu – 1.94 V |
| Input impedance | 20 KΩ Balanced |
| Mains | Universal switch mode Power Supply 85-265 V / 45-65 Hz |
| Average current draw | 3.7 A (Heavy duty musical program) |
| SPL (1m) | 141 dB continuous, 144 dB peak |
| Built-in DSP | 64- bit processing unit. Includes factory presets |
| AD/DA converters | 24 bit – 48 kHz – SNR >112dB |
| Presets | HPF60_FLAT / HPF60_NEARFIELD / HPF60_LONGTHROW / HPF80_FLAT / HPF80_NEARFIELD / HPF80_LONGTHROW + 25 configurable user memories |
| Frequency response (-10 dB) | 42 Hz – 18 kHz |
| LF | 2 x 12″ neodymium woofers (3″ voice coil) |
| MF | 4 x 6″ neodymium woofers (1.5″ voice coil) |
| HF | 2 x 3″ titanium diaphragm, neodymium magnet compression drivers |
| Directivity (HxV) | 100º x 8º |
| Dimensions (HxWxD) | 372 x 1100 x 657 mm |
| Weight | 64.6 kg |
| Finish | Multilayer baltic birch plywood with high resistant black Polyurea® coating |
| Grille | 1.5mm steel with grey micro-foam cloth |
| Rigging | Stainless-steel black painted integrated rigging bars |
| Connectors | 1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link / 1x EtherCon® RJ45 input / 1x EtherCon® RJ45 link |
Flight Case
FC-X212AF - for three units of X212AFD
Flight Case
FC-TAX212 - for two units of TA-X212

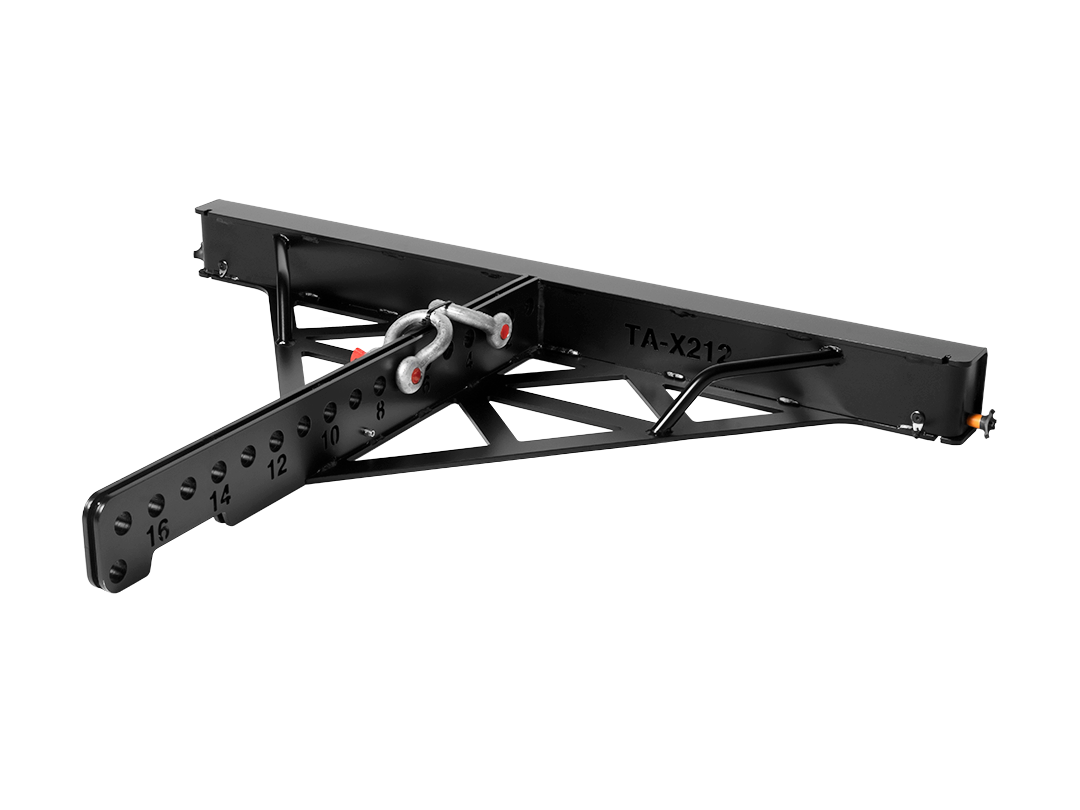

Touring Bumper
TA-X212 - for X212AFD
X212AFD
The X212AFD is the flagship of the Xcellence series and the epitome of audio perfection performance. Breakthrough technologies, cutting-edge acoustic design, the highest quality, precision-engineered, in-built DSP with F.I.R filters, taylor-made components and materials and Dante networking.
Smart Touchscreen Control Advanced touchscreen control with the ACTIVE +™ platform
Amate Audio’s next-generation ACTIVE +™ power and control platform features an intuitive 3.5” rear-mounted TFT color touchscreen, offering fast and effortless access to all system settings.
The highly ergonomic graphical user interface (GUI) allows precise and efficient control of the DSP parameters, ensuring a smooth and user-friendly operation experience.
Software – DSP Studio 3 DSP Studio 3 gives you powerful remote control over Xcellence ACTIVE+ systems via Ethernet or Wi-Fi.
Featuring intelligent limiters, ECO mode, tilt sensor calibration, advanced FIR/IIR filtering, up to 200 m delay, and real-time power and temperature monitoring, it ensures reliable performance and total control in any professional environment.
