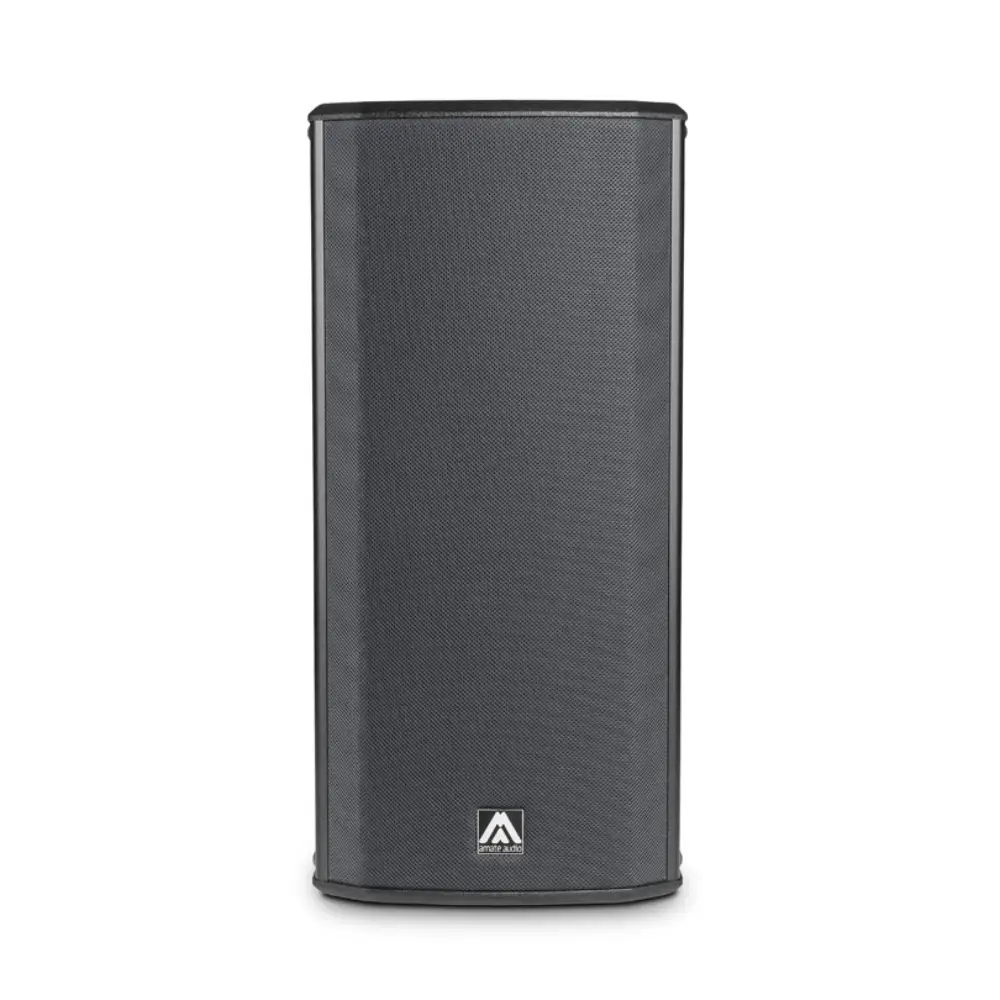

X102FD
The X102FD has been developed as a powerful and compact, more efficient point source alternative to line arrays in medium size application environments. The design objective was to optimally achieve the highest quality sound at the highest possible output levels from the most compact enclosure possible.
Multiple presets
Exclusive Low Frequency Phase Plug
Exclusive High Performance Rotable Horn
Light neodymium components| Amplifier program power | 2500 W (LF) + 500 W (HF) Class D Bi-amplified |
|---|---|
| Input sensitivity | 8 dBu – 1.94 V |
| Input impedance | 20 KΩ Balanced |
| Mains | Universal switch mode Power Supply 85-265 V / 45-65 Hz |
| Average current draw | 3.3 A (Heavy duty musical program) |
| SPL (1m) | 136 dB continuous , 139 dB peak |
| Built-in DSP | 64- bit processing unit. Includes factory presets |
| AD/DA converters | 24 bit – 48 kHz – SNR > 112dB |
| Presets | FR_FLAT, FR_LONGTHROW, HPF90_FLAT, HPF90_LONGTHROW + 25 configurable user memories |
| Frequency response (-10 dB) | 58 Hz – 19 kHz |
| LF | 2 x 10″ neodymium woofers (2″ voice coil) |
| HF | 3” titanium diaphragm, neodymium magnet compression driver |
| Directivity (HxV) | 80º x 60º / 60º x 80º (rotated horn) |
| Dimensions (HxWxD) | 704 x 330 x 460 mm |
| Weight | 28 kg |
| Finish | Multilayer baltic birch plywood with high resistant black Polyurea® coating and protective rubber profiles |
| Grille | 1.5 mm steel with grey micro-foam cloth |
| Connectors | 1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link / 1x EtherCon® RJ45 input / 1x EtherCon® RJ45 link |
Flight Case
FC-X102FD - for two units of X102FD

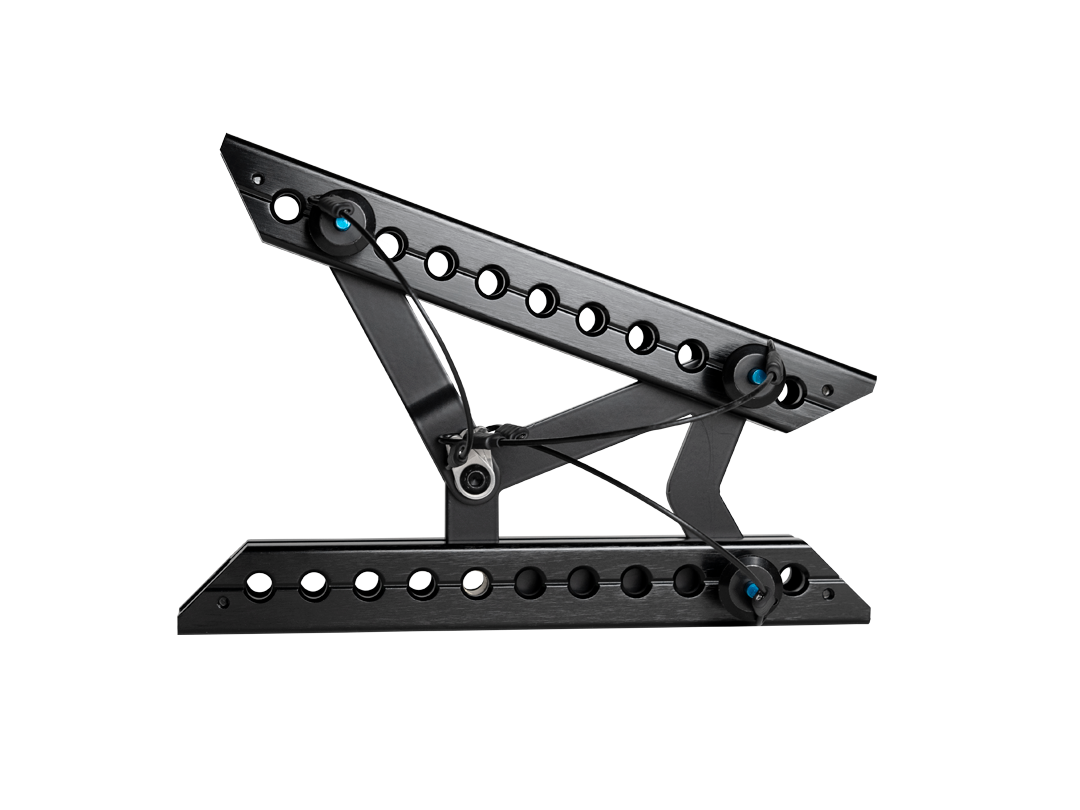

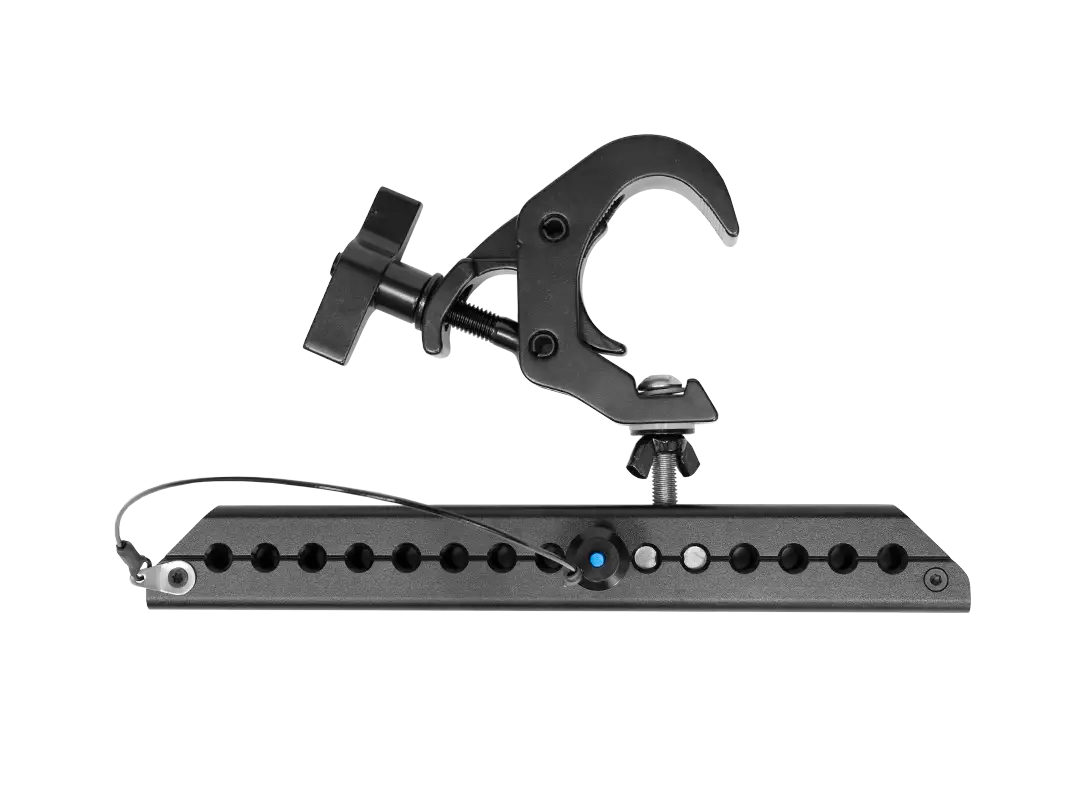

Rigging bar
RB-L1082 - for two units of X102FD, one unit of X102FD + one unit of X82FD
Telescopic Distance Rod
SP/CRTL- for X102FD
M8 Rigging Eyebolt
ACR-M8 - for X102FD

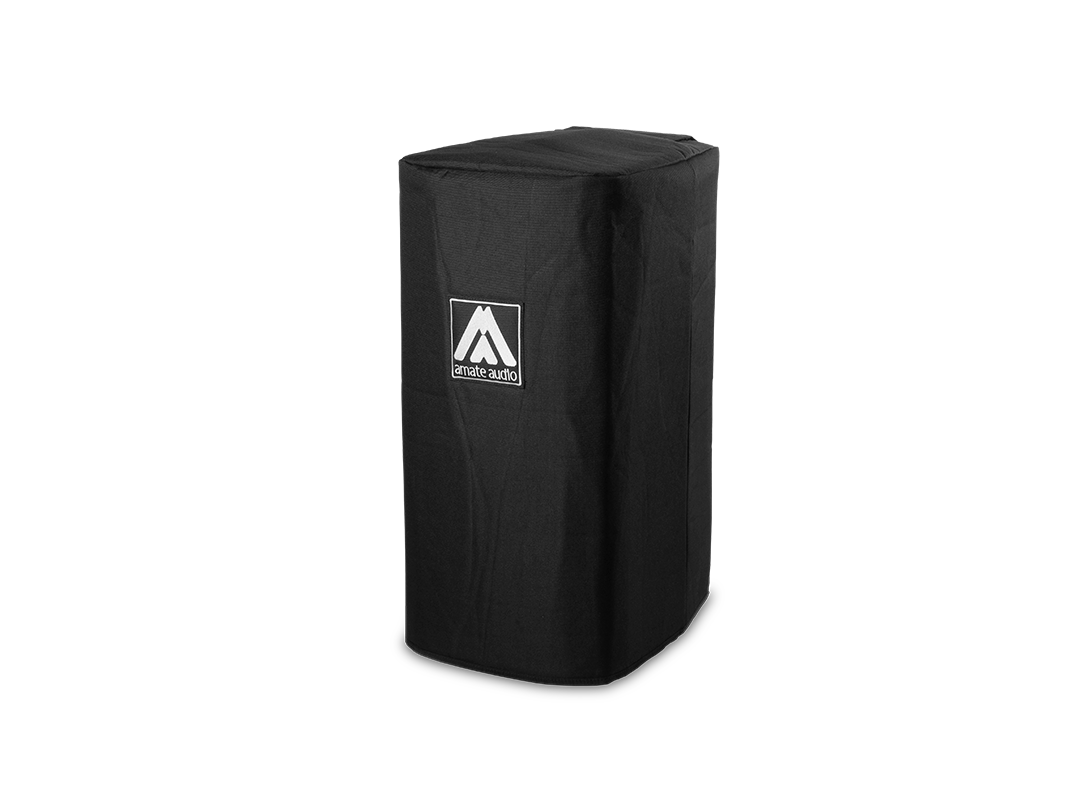

Protective Cover
NC-X102FD for X102FD
X102FD
The X102FD has been developed as a powerful and compact, more efficient point source alternative to line arrays in medium size application environments. The design objective was to optimally achieve the highest quality sound at the highest possible output levels from the most compact enclosure possible.

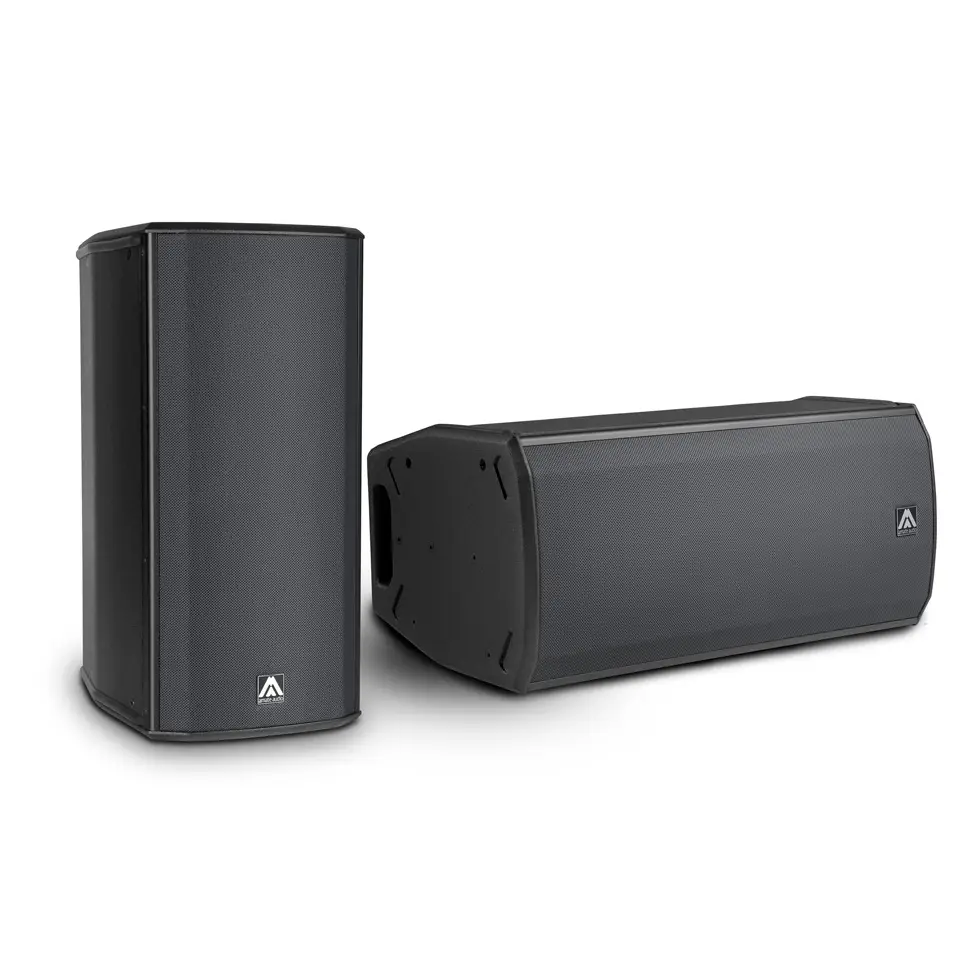

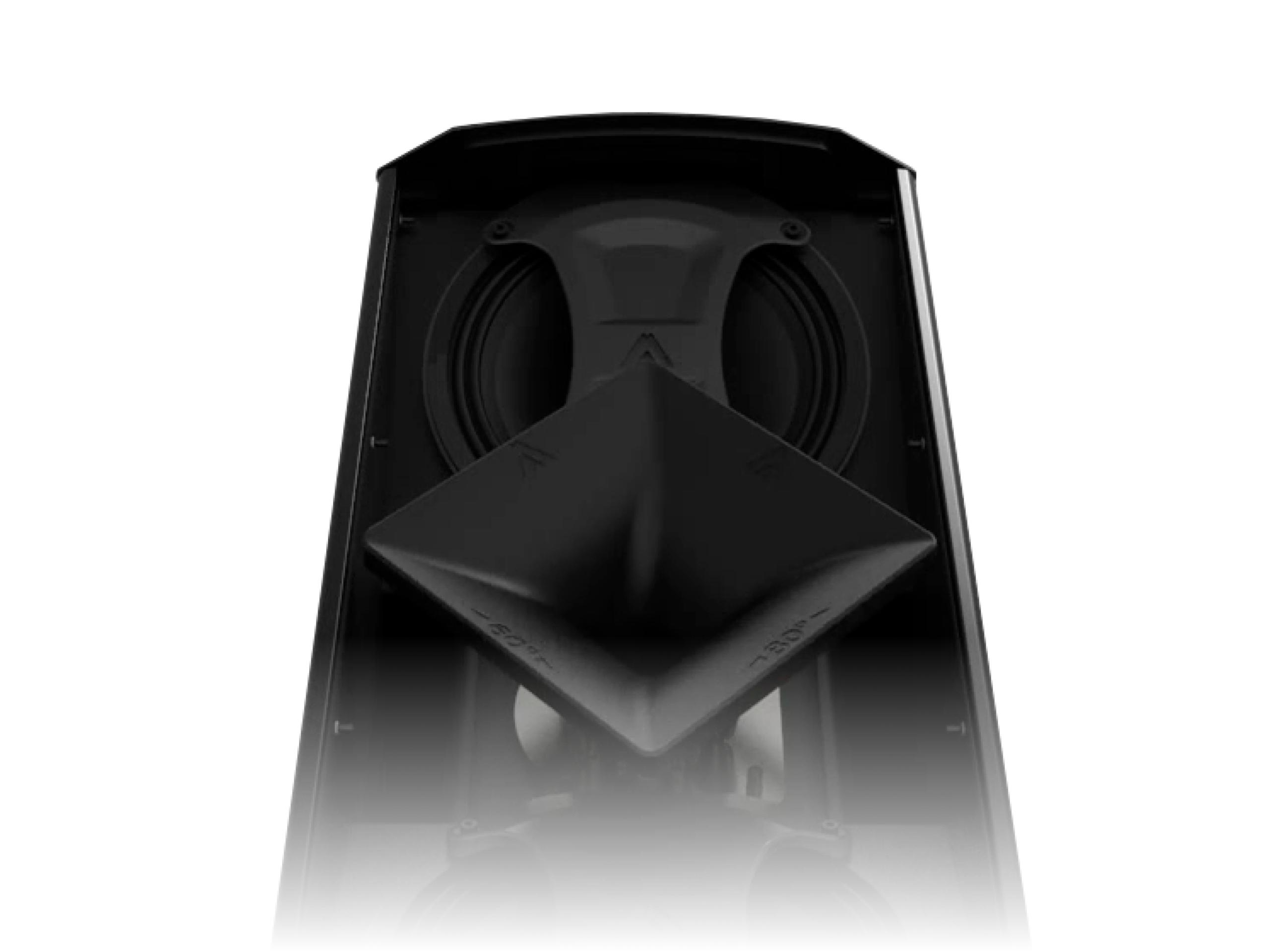

Smart Rotatable Horn Tool-free rotation for vertical and horizontal use
The X102FD features a rotatable horn with a simple pull, turn, and release mechanism, allowing quick vertical or horizontal deployment without tools. It delivers consistent (HxV) 80 × 60 or 60 × 80 dispersion in any orientation, making it ideal for FOH, front-fill, and near-ceiling installations.
Software – DSP Studio 3 DSP Studio 3 gives you powerful remote control over Xcellence ACTIVE+ systems via Ethernet or Wi-Fi.
Featuring intelligent limiters, ECO mode, tilt sensor calibration, advanced FIR/IIR filtering, up to 200 m delay, and real-time power and temperature monitoring, it ensures reliable performance and total control in any professional environment.
Ultra-Clear Audio

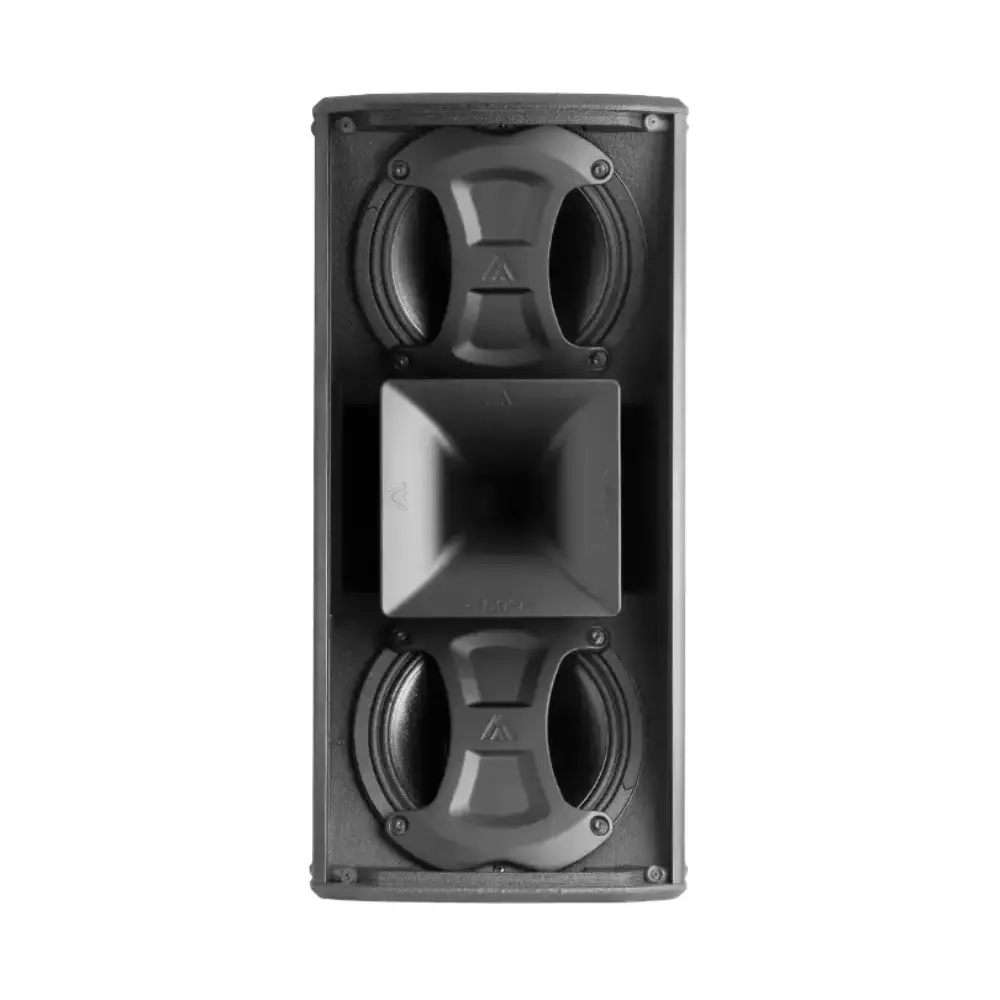

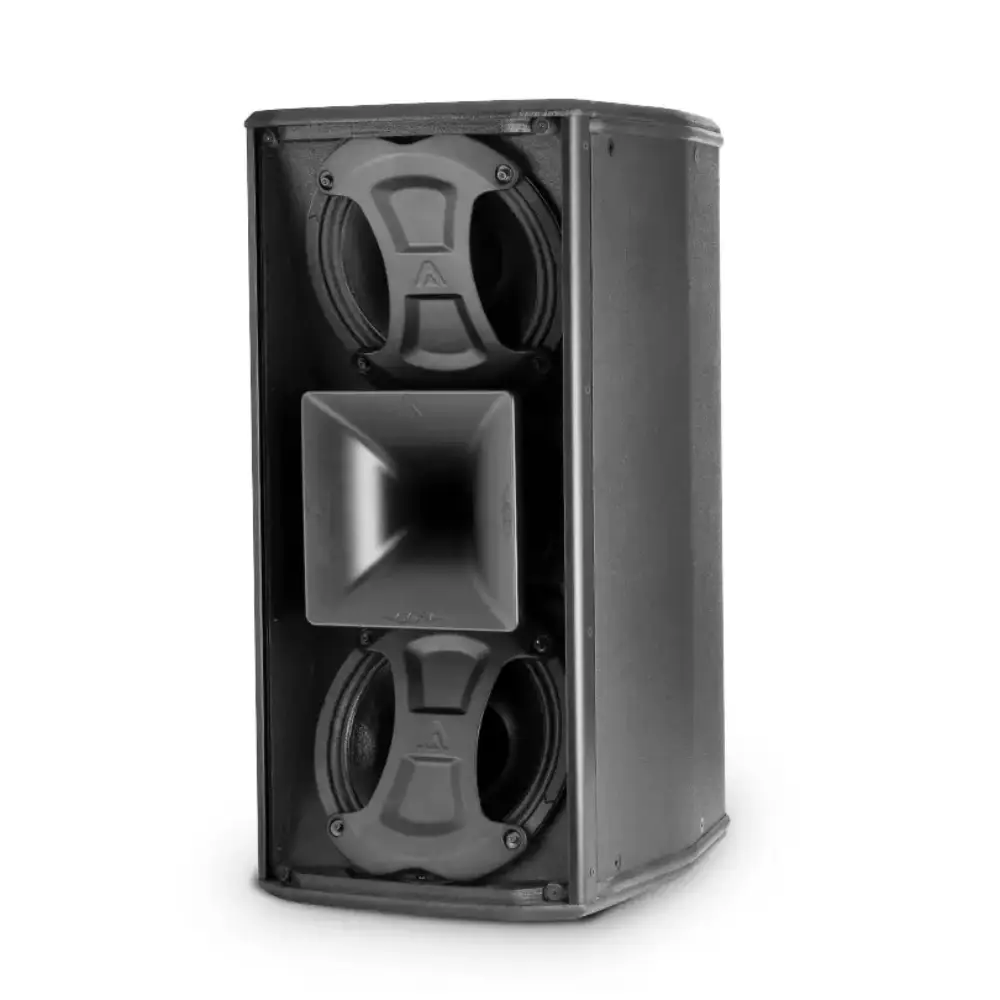

Dual 10″ neodymium woofers with exclusive LF phase plug and a 3″ titanium compression driver ensure powerful lows, controlled mids, and pristine highs.
High-Power Bi-Amplified
2500 W LF + 500 W HF Class-D bi-amplified system, engineered for maximum output efficiency from a compact enclosure.
Rugged & Reliable
Multilayer Baltic birch plywood enclosure with high-resistance Polyurea® coating and protective rubber profiles for demanding professional use.
Versatile Connectivity
XLR audio I/O, PowerCon® power linking, and EtherCon® RJ45 networking provide seamless integration into professional sound systems.
Built-In DSP Control
Advanced 64-bit DSP with factory presets and 25 user memories, delivering precise system tuning and optimal performance in any setup.
Peak Performance
Up to 136 dB continuous and 139 dB peak SPL, designed as a high-output point source alternative to line arrays for medium-size venues.
