WP22DN

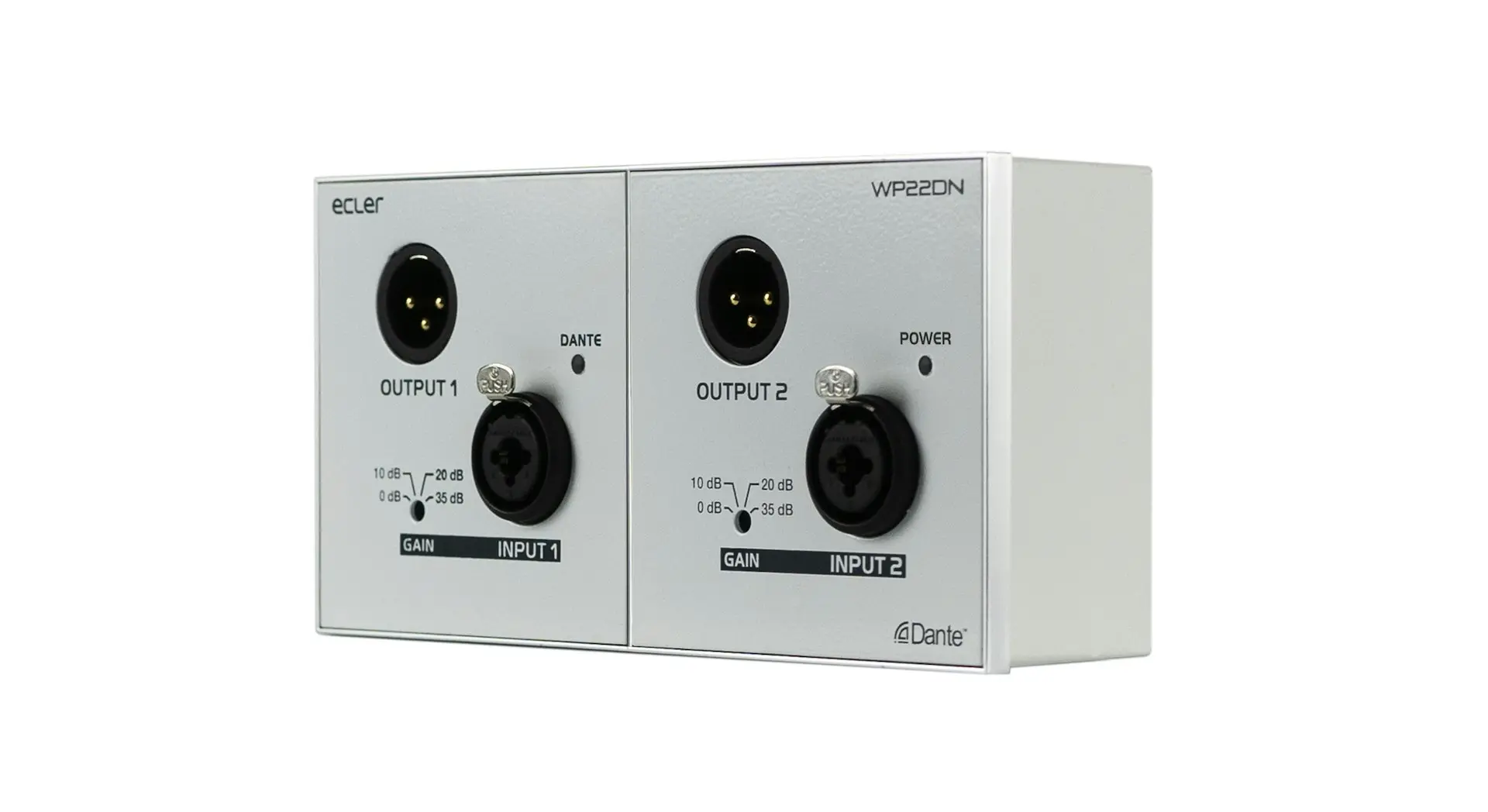

WP22DN is a Dante™ interface in a wall panel format. It features 2 audio MIC/LINE Combo connector inputs in its frontal panel and 2 Dante™ conversion channels either directly or by the sum of channels (stereo to mono conversion). Also, it features 2 analogue outputs with duplicated connectors in XLR format for the front panel and Euroblock on the rear panel, both linked to 2 Dante™ channels coming from the local network.
| Number of output channels | 2 + 2 DANTE™/AES67 |
|---|---|
| Number of input channels | 2 MIC/LINE + 2 DANTE™/AES67 conversion channels |
| Phantom power | +48VDC, 5mA max. ON / OFF by DIP SWITCH |
| Input connection type | 2 x XLRF + jack Combo |
| Input Gain | 0 / 10 / 20 / 35dB |
| Input impedance | Balanced > 4kΩ |
| Max input level | +10dBV / +12dBu @ 0dB Gain |
| CMRR | 65dB typ. @ 20Hz- 20kHz |
| THD + Noise | <0.004% @ 1kHz, 0dBV Gain |
