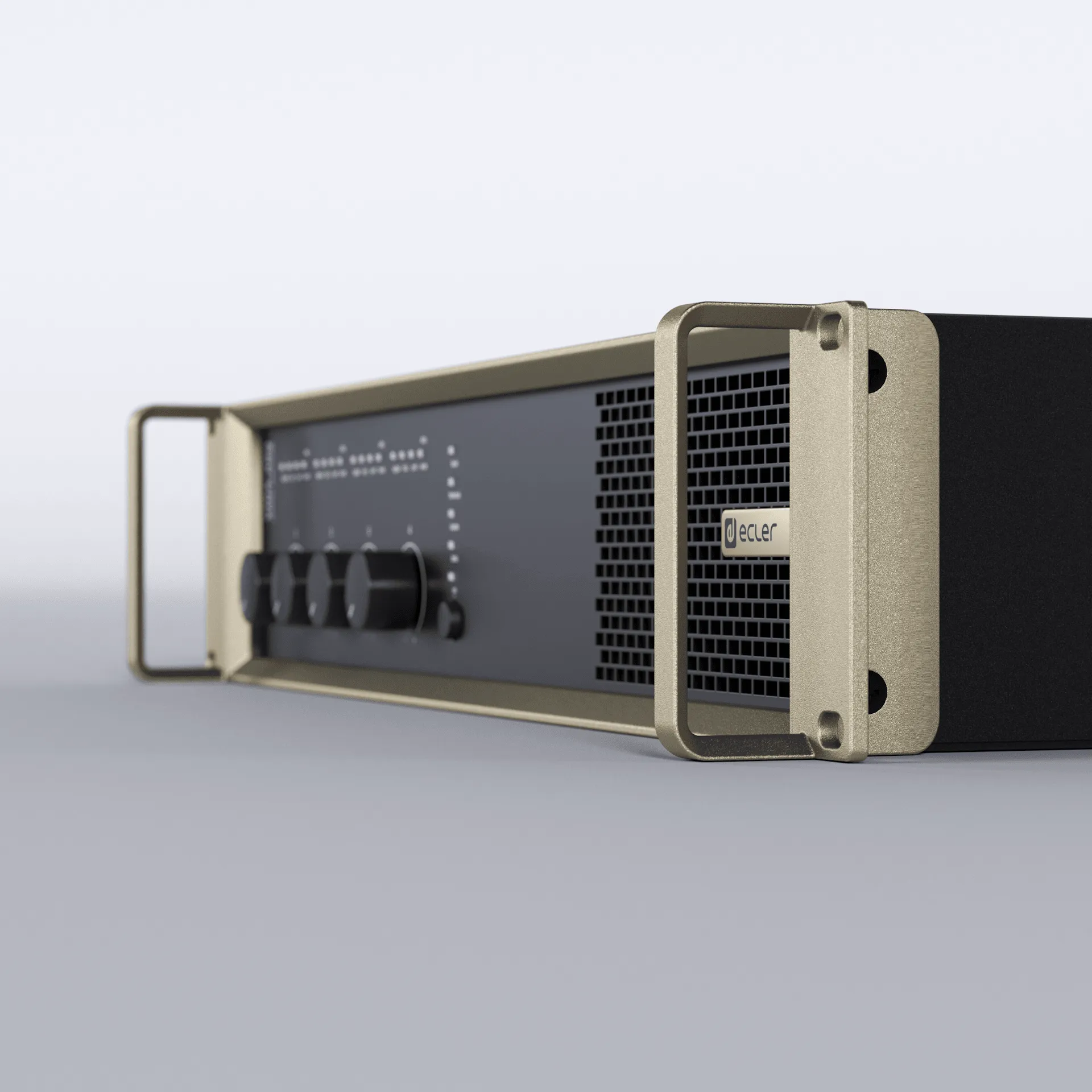

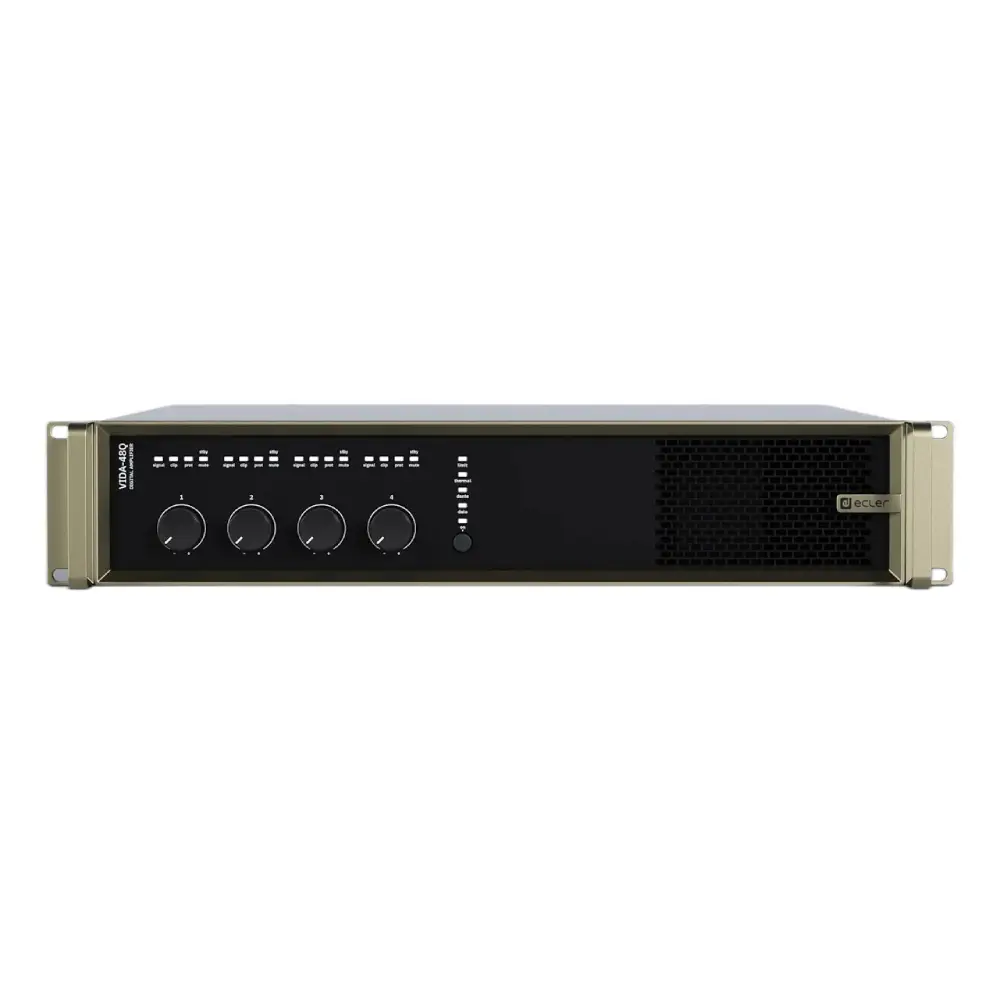

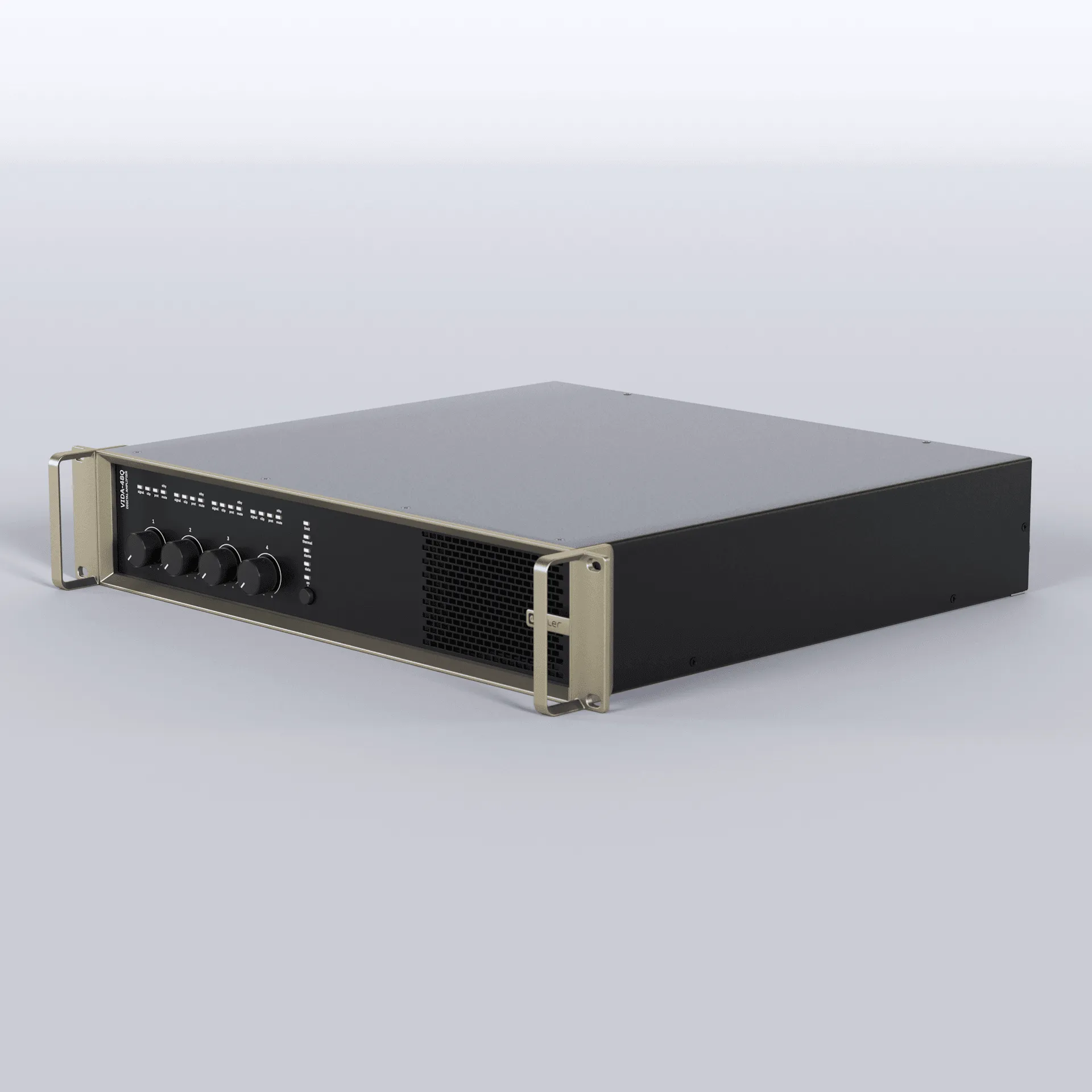

VIDA-48Q

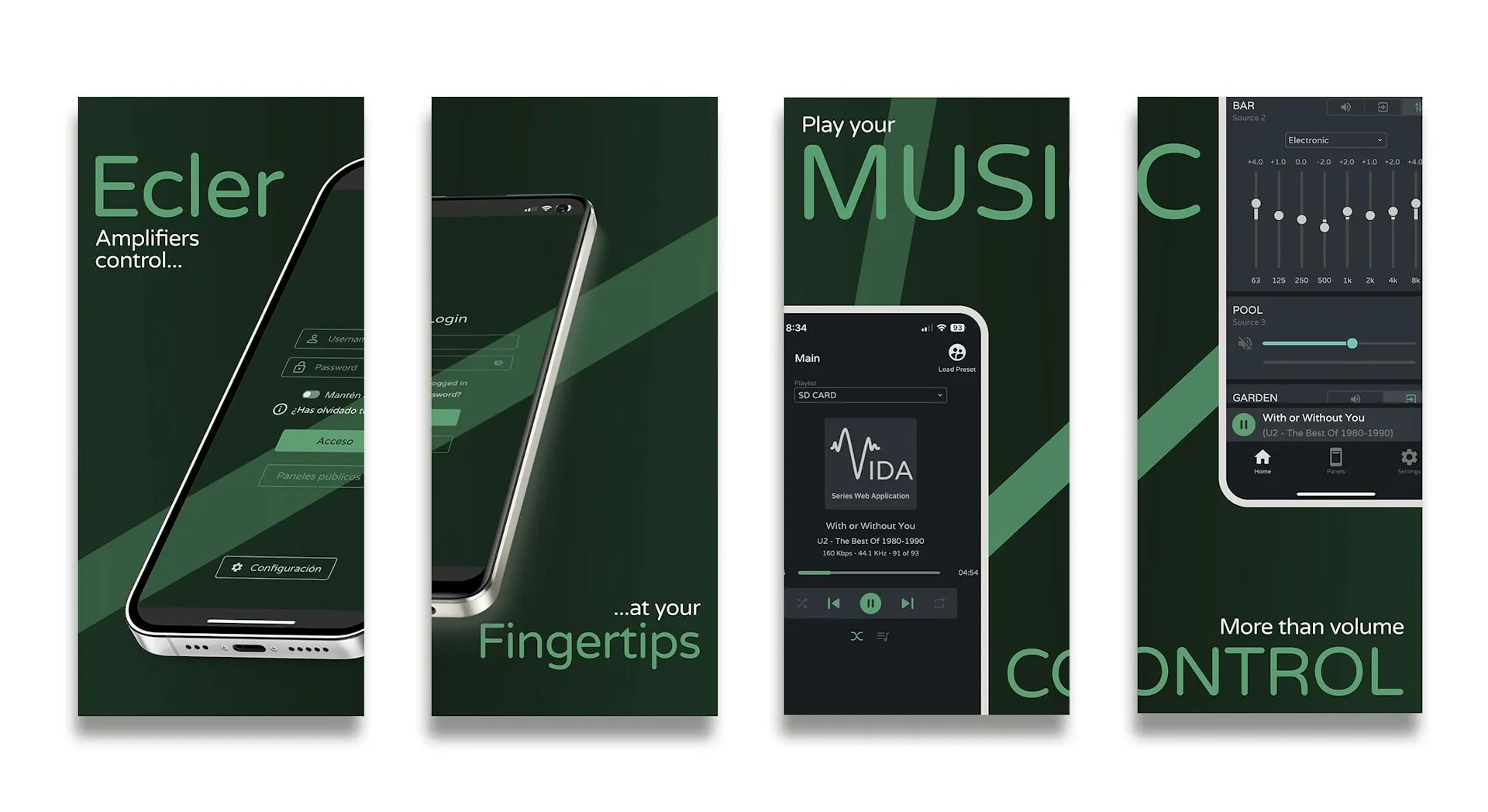

VIDA-48Q is a 4800W digital amplifier, with 4 amplified outputs that can be independently configured in high (100/70V) or low (8/4/2ohm) impedance. The VersaPower technology, developed by Ecler, allows an asymmetrical power distribution, and thanks to the Smart VersaPower tool it helps installers by facilitating a smart and fast configuration. In addition, the Class D amplification technology as well as the configurable 4-outputs auto standby and sleep mode functions, both configurable, further improve energy efficiency. This device offers a wide range of possibilities thanks to its 4 analogue and 4 Dante/AES67 digital inputs, audio player – with microSD slot for local audio files – as well as signal generator, plus 2 auxiliary line outputs and 4 Dante/AES67 digital outputs. All these features are managed from its intuitive web application which, among other functionalities, allows signal routing – matrix -, audio signal processing – such as equalisation or limiters -, priority management, GPIO configuration through events, as well as calendar events, playlist management and SD card content, thus facilitating the start-up of the audio-visual installation, its maintenance and customisation. Thanks to the Android/iOS/Web application available to the end user, the audio installation can be managed by them in an easy, intuitive, and customised way.
| Number of output channels | 4 |
|---|---|

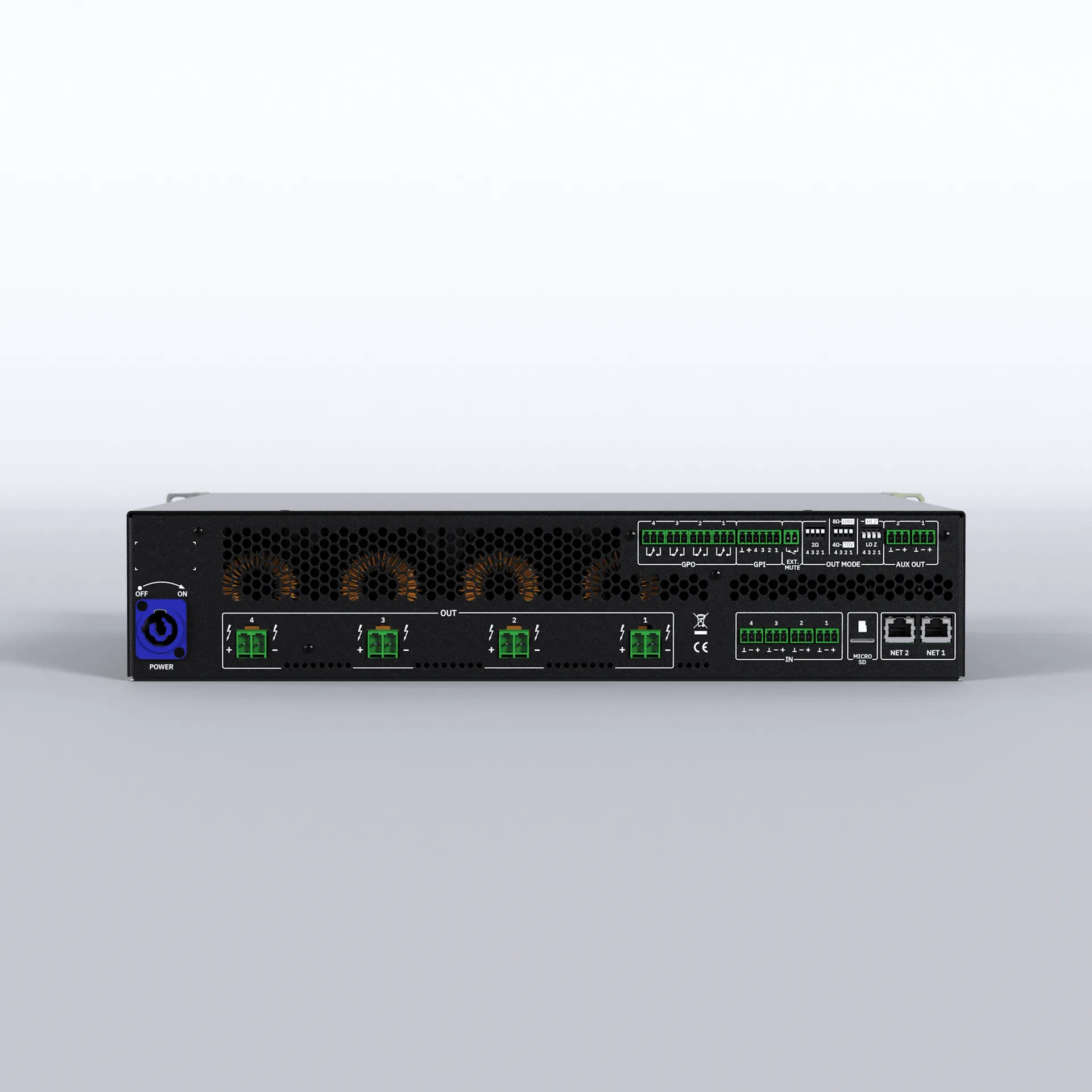

| Output connection type | 2-pin Euroblock. Pitch: 7,62 mm Ref: DEGSON 5EDGRC-7.62 |
| Output configuration | Lo-Z/Hi-Z, 70V/100V, 4Ω/8Ω/2Ω Output mode selection per channel Rear panel DIP SWITCH selectors |
| Number of input channels | 4 analogue input channels 4 DANTE/ AES67 Network Rx channels 1 embedded player, 1 embedded signal generator |
| Input connection type | Digital: Ethernet, managed via Dante/ AES67 Controller Analogue: IN1-4: 3-pin Euroblock, balanced, pitch 3,5 mm |
| Input configuration | Input configuration |
VIDA-48Q
VIDA-48Q is a 4800W digital amplifier, with 4 amplified outputs that can be independently configured in high (100/70V) or low (8/4/2ohm) impedance. The VersaPower technology, developed by Ecler, allows an asymmetrical power distribution, and thanks to the Smart VersaPower tool it helps installers by facilitating a smart and fast configuration. In addition, the Class D amplification technology as well as the configurable 4-outputs auto standby and sleep mode functions, both configurable, further improve energy efficiency. This device offers a wide range of possibilities thanks to its 4 analogue and 4 Dante/AES67 digital inputs, audio player – with microSD slot for local audio files – as well as signal generator, plus 2 auxiliary line outputs and 4 Dante/AES67 digital outputs. All these features are managed from its intuitive web application which, among other functionalities, allows signal routing – matrix -, audio signal processing – such as equalisation or limiters -, priority management, GPIO configuration through events, as well as calendar events, playlist management and SD card content, thus facilitating the start-up of the audio-visual installation, its maintenance and customisation. Thanks to the Android/iOS/Web application available to the end user, the audio installation can be managed by them in an easy, intuitive, and customised way.
