VEO-XTI2L

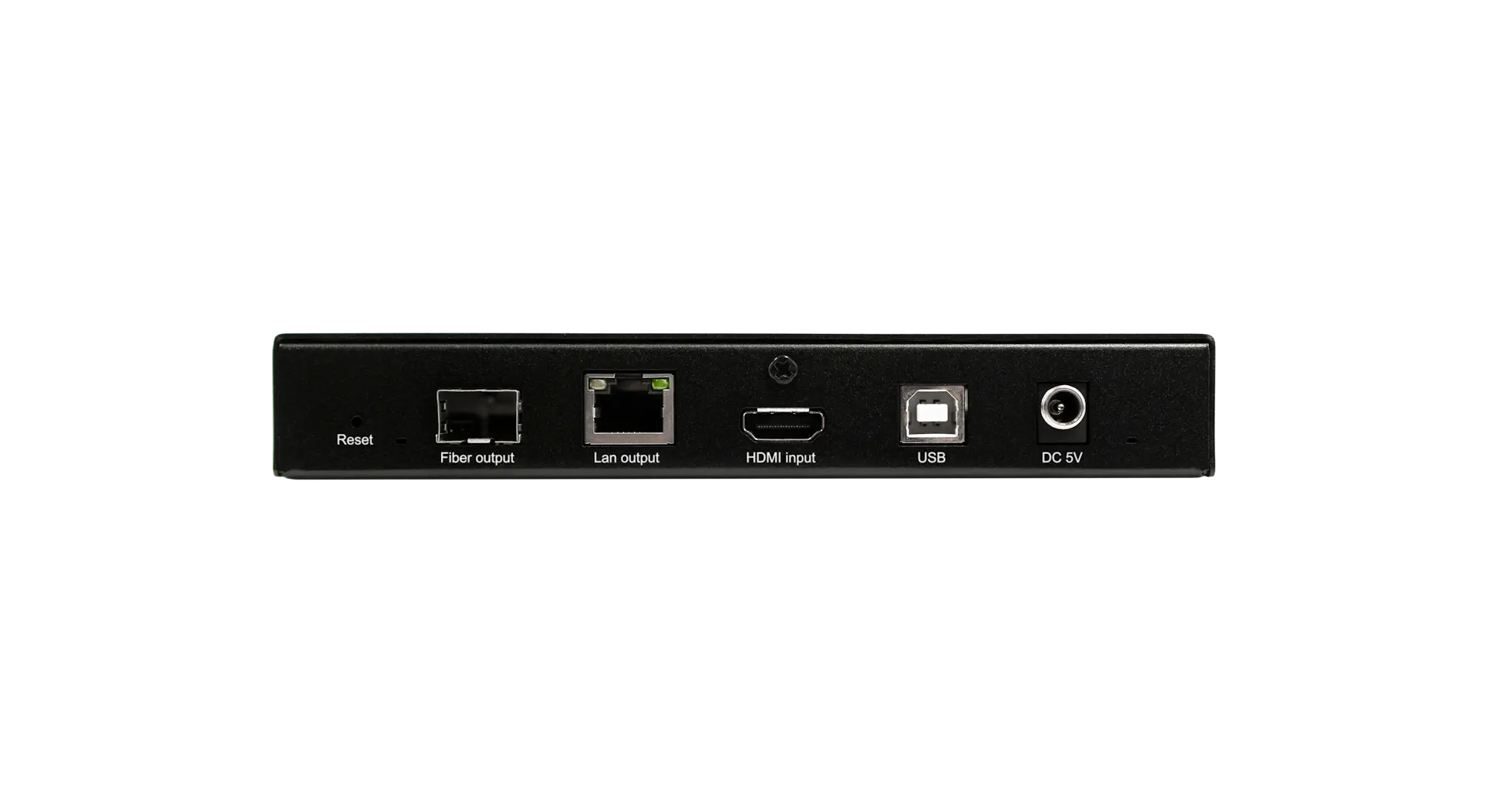

VEO-XTI2L is a low latency 4K HDMI® extenders over IP. They also provide optional fiber optic connection for extension of 4K signals up to 2Km. This over IP solution is widely suitable for all the applications that require low latency video extension such as real time application or KVM. An intuitive user panel with LEDs display allows to select the stream channel just out of the box, without the need of connecting a PC. The extenders can be power supplied both via PoE or via the included external PSU. Web browser interface, PC tools and third party control protocol are available for advanced settings and advanced control.
| Video Input Connectors | 1 HDMI® Type A Female, 2.0, 18 Gbps |
|---|---|
| Video Output Connectors | 2 HDMI® Type A Female, 2.0, 18 Gbps |
| Video Input Resolutions | Up to 4096x2160@60Hz 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p 1080p@23.98/24/25/29.97/30/50/59.94/60Hz,1080i@50/59.94/60Hz,720p@50/59.94/60Hz, 576p, 576i, 480p, 480i |
| Video Output Resolutions | Up to 4096x2160@60Hz 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p 1080p@23.98/24/25/29.97/30/50/59.94/60Hz,1080i@50/59.94/60Hz,720p@50/59.94/60Hz, 576p, 576i, 480p, 480i |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Colour Depth | 8-bit, 10-bit, 12-bit |
| Colour Space | RGB, YCbCr |
| HDCP | 2.2/1.4 Compliant |
| HDR | HDR10 |
| HDMI® Distance | up to 10 meters (33 feet) with Ecler VEO cables |
