VEO-XPT44A

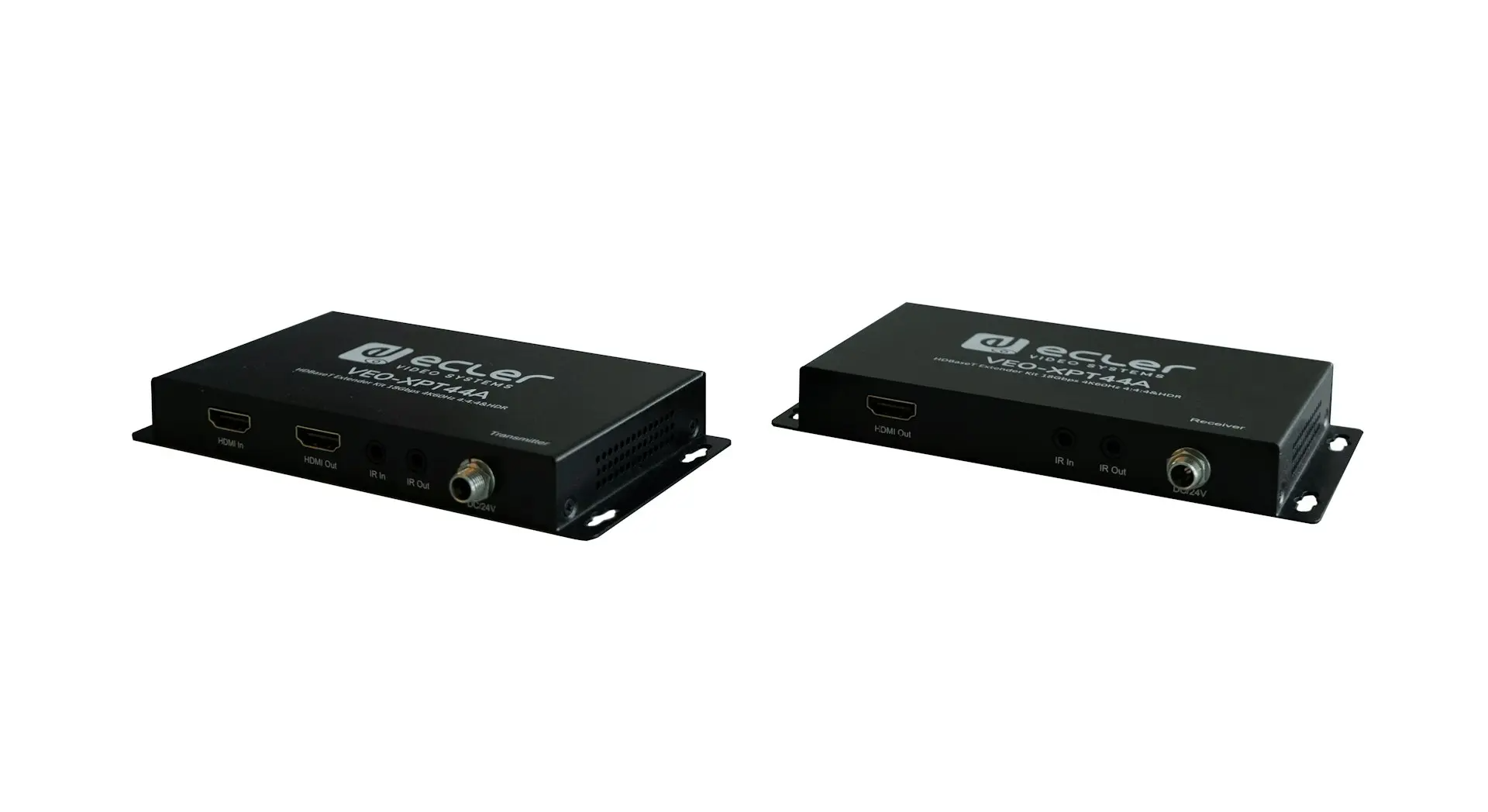

VEO-XPT44A is a professional HDBaseT extension kit that includes a transmitter and a receiver. It allows to extend a 4K video signal up to 40m or a Full HD signal up to 70m over a single Cat 5e/6 cable. It supports 4K video signals at 60Hz with 4:4:4 YUV chroma subsampling and HDR10. The transmitter includes a HDMI® loop output for monitoring or daisy-chain connection. A stereo unbalanced output on Euroblock connector is available both, on the transmitter and the receiver, for easy integration. In addition, VEO-XPT44A includes bidirectional PoH feature so the transmitter can be powered by the receiver and vice versa. With a reduced form factor and the added features of RS-232 and bidirectional IR, this is the perfect solution for any applications where AV and control extensions are required.
| Video Input Connectors | Tx: HDMI® Type A Female, 18 Gbps |
|---|---|
| Video Output Connectors | HDMI® Type A Female, 18 Gbps (loop output on Tx) |
| Video Input Resolutions | 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 60Hz |
| Video Output Resolutions | 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 60Hz |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Colour Depth | 8-bit, 10-bit, 12-bit, 16-bit only @4K30 |
| Colour Space | RGB, YCbCr |
| HDCP | 2.2/1.4 compliant |
