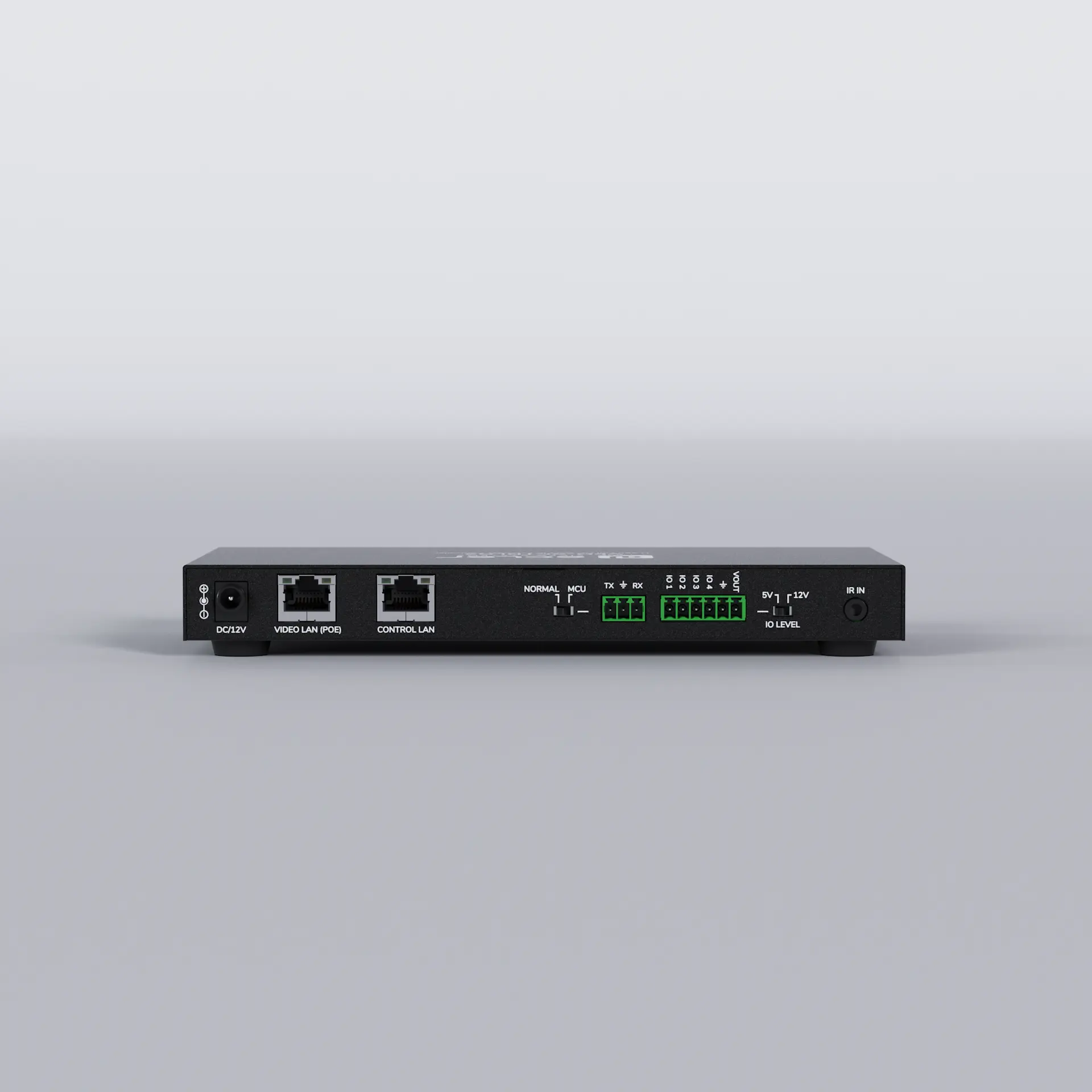

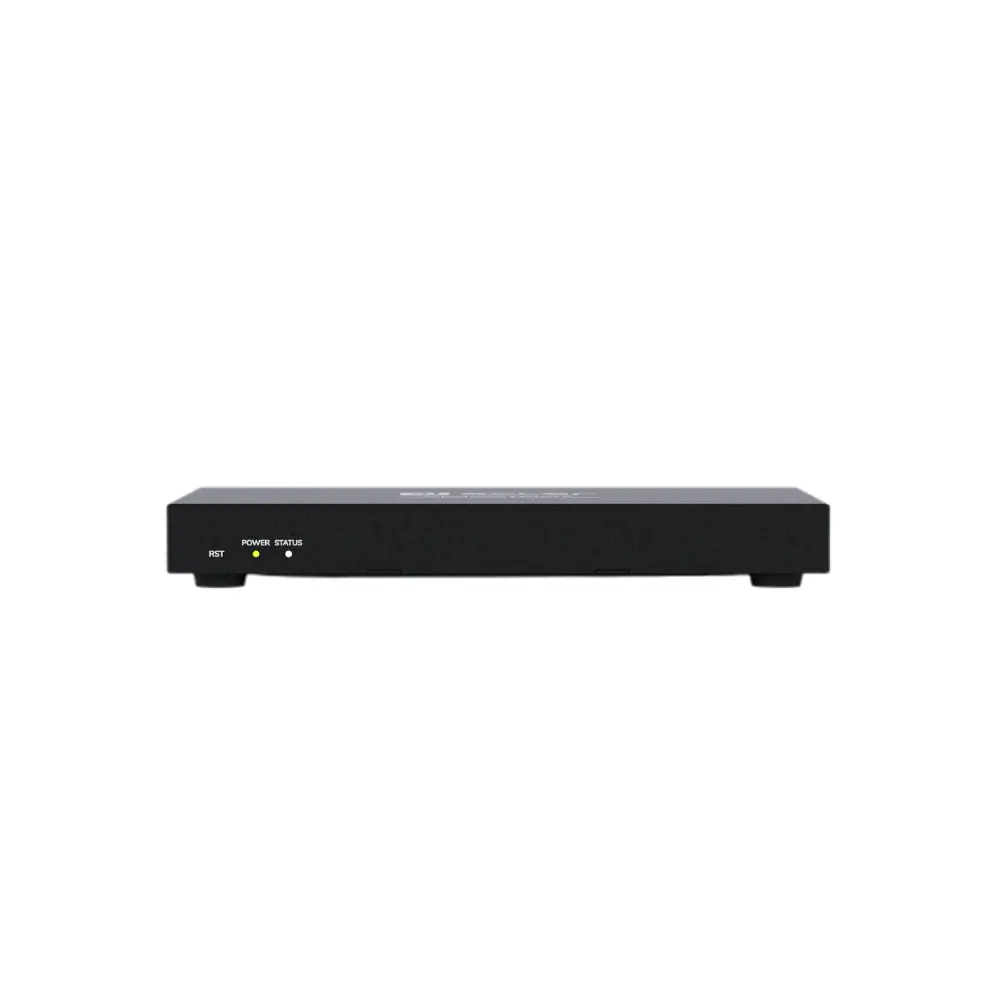

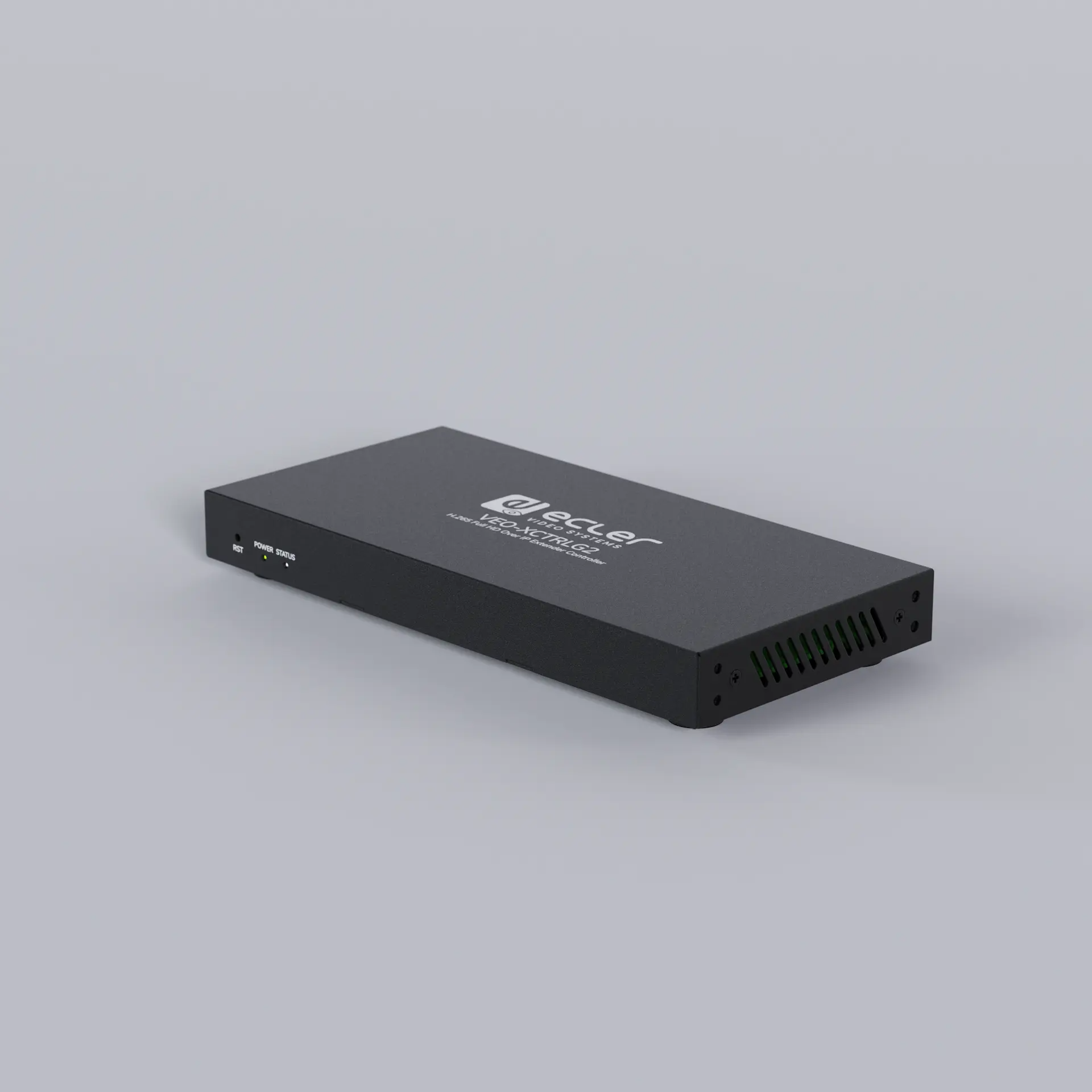

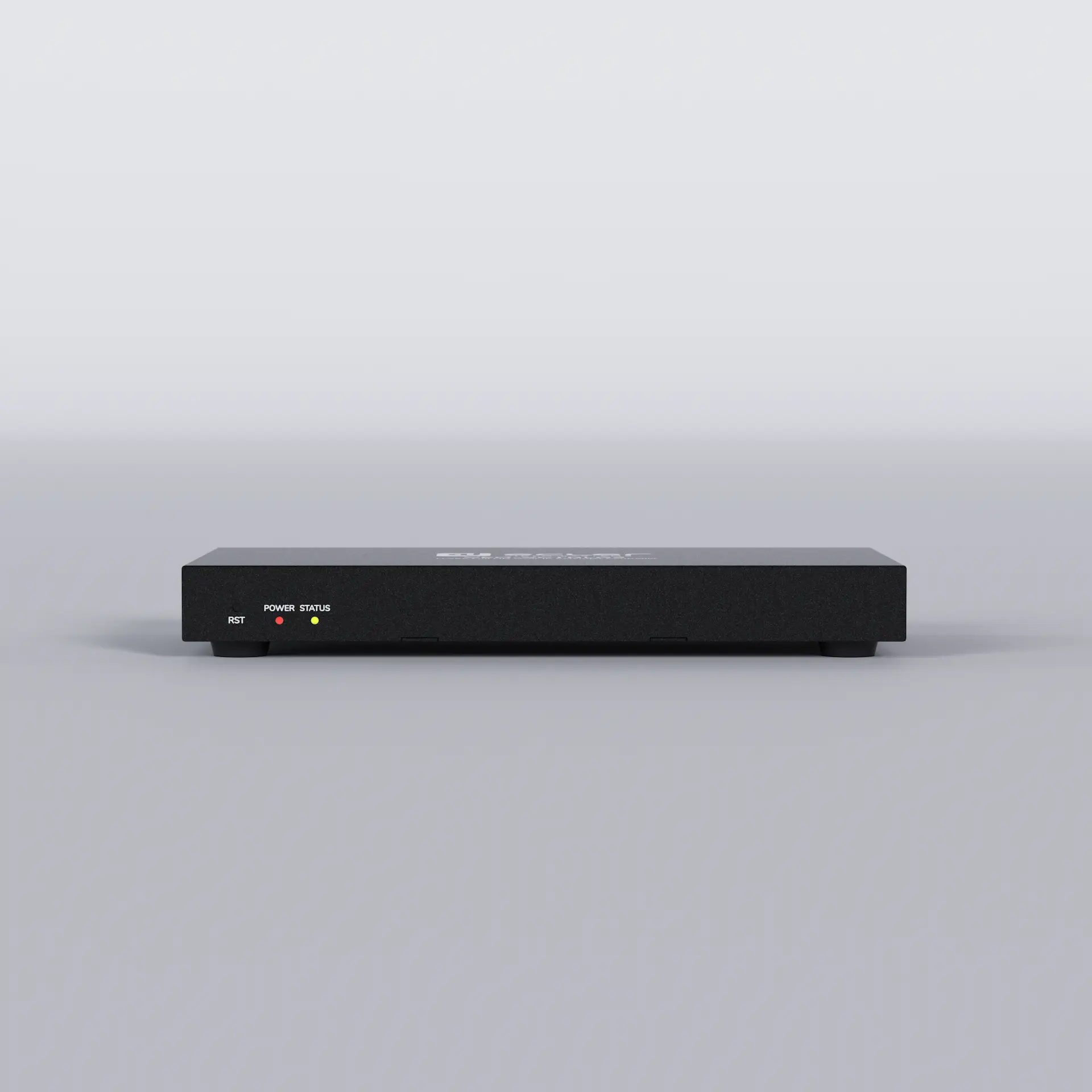

VEO-XCTRLG2
VEO-XCTRLG2 is a controller module that allows the user to manage and operate VEO-XTI1CG2 and VEO-XRI1CG2 video over IP devices in large multipoint to multipoint systems. It mounts two dedicated LAN ports to host independent Control and Video networks. VEO-XCTRLG2 offers a dedicated web interface that features a setup wizard, matrix control, videowall smart creation and operation, drag and drop source selection, video preview and TCP and RS-232 control commands. It supports POE function which makes this advanced managing tool a perfect fit more all sorts of AV over IP installations.
| Control Connectors | RJ-45, Euroblock, Jack 3.5mm |
|---|---|
| Control Protocols | Web, TCP, RS-232 |
| Status Indicators | POWER LED: Red, STATUS LED: Green |
| Pass-through Connectors | Euroblock, Jack 3.5mm |
| Pass-through Protocols | RS-232 |
| Network Connectors | RJ-45 x 2 |
| Network Requirements | IGMP Snooping |
| Average Streaming Bitrate | Configurable via software 1-20 Mbps |
