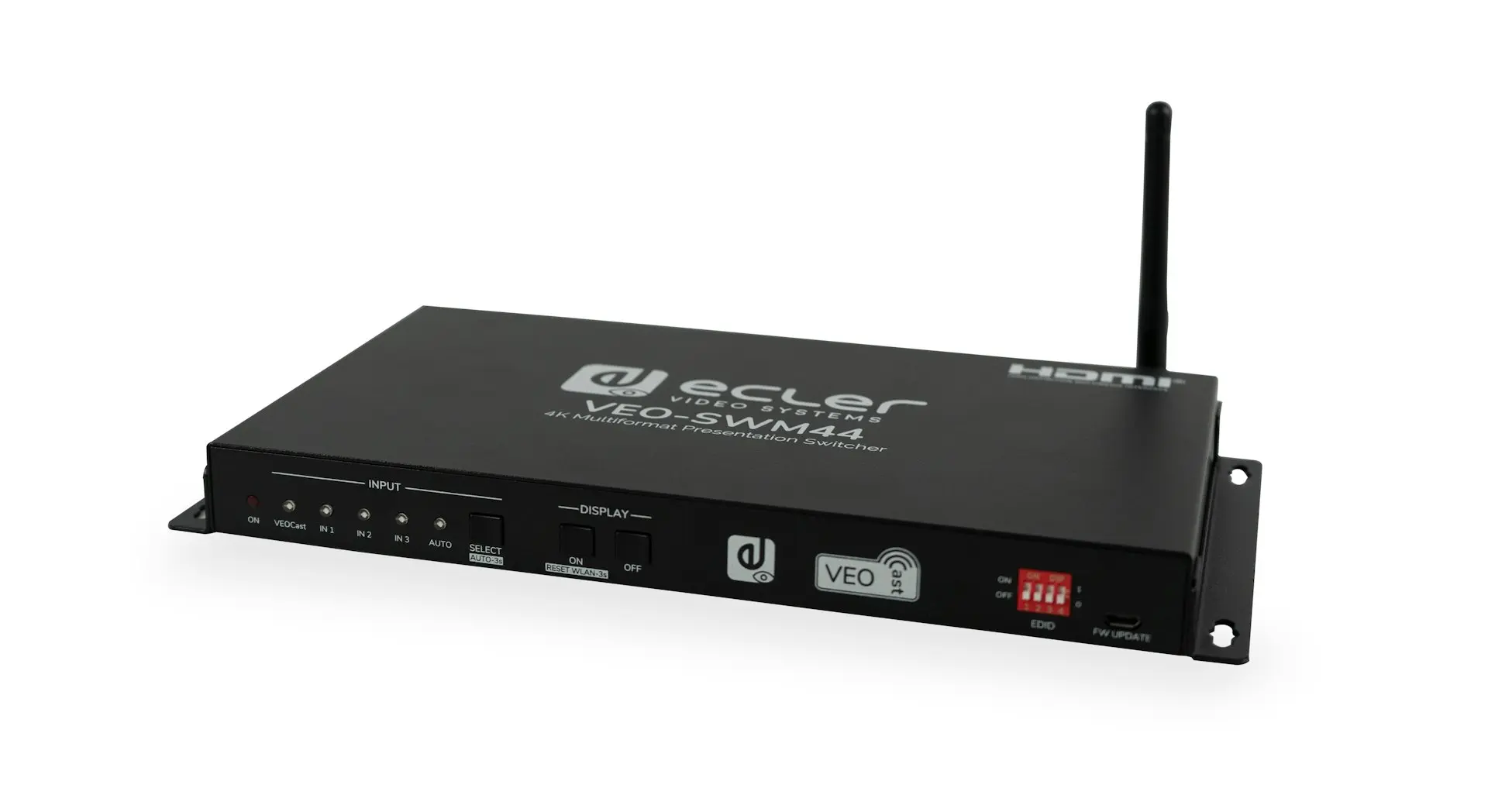

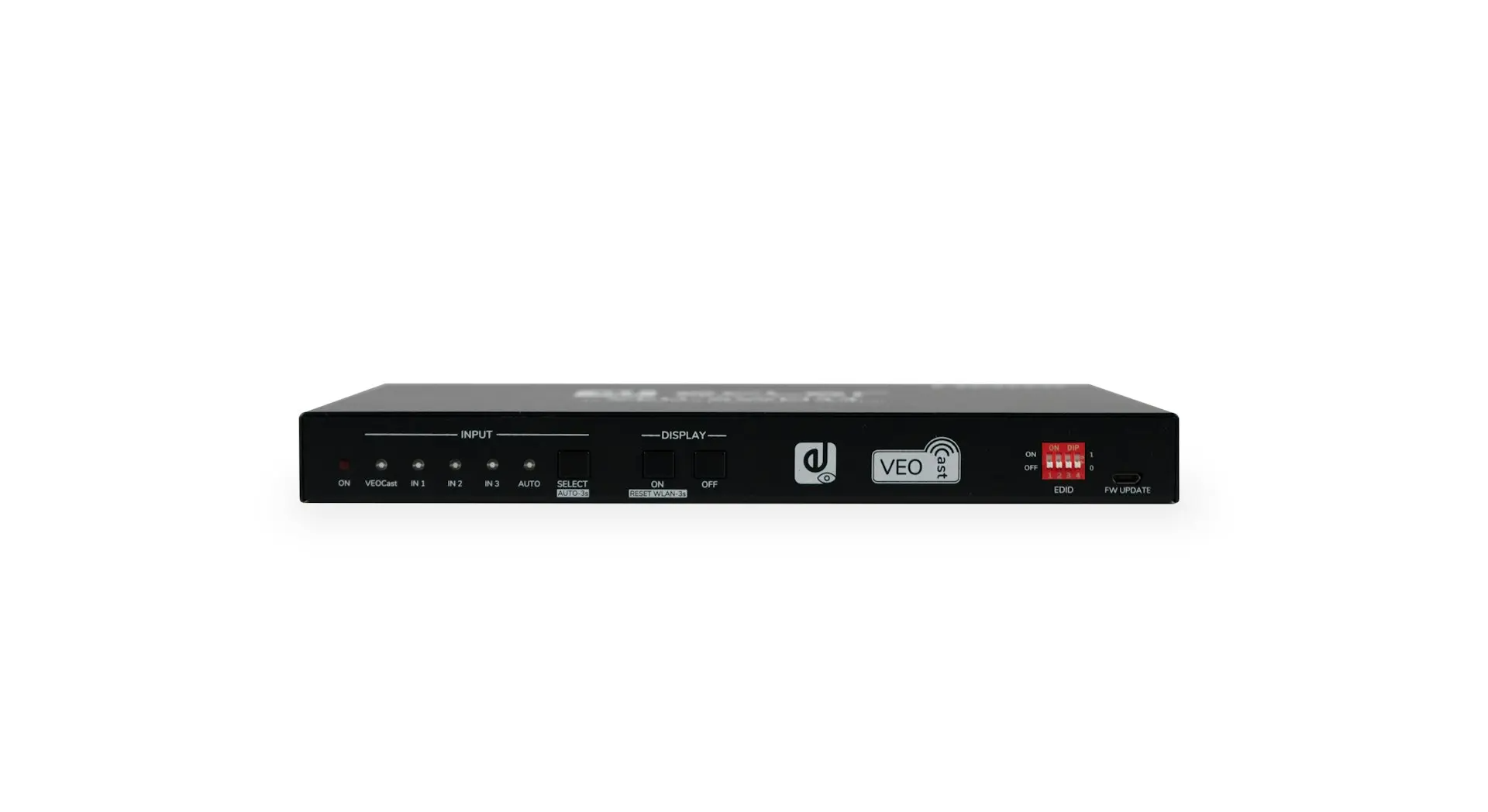

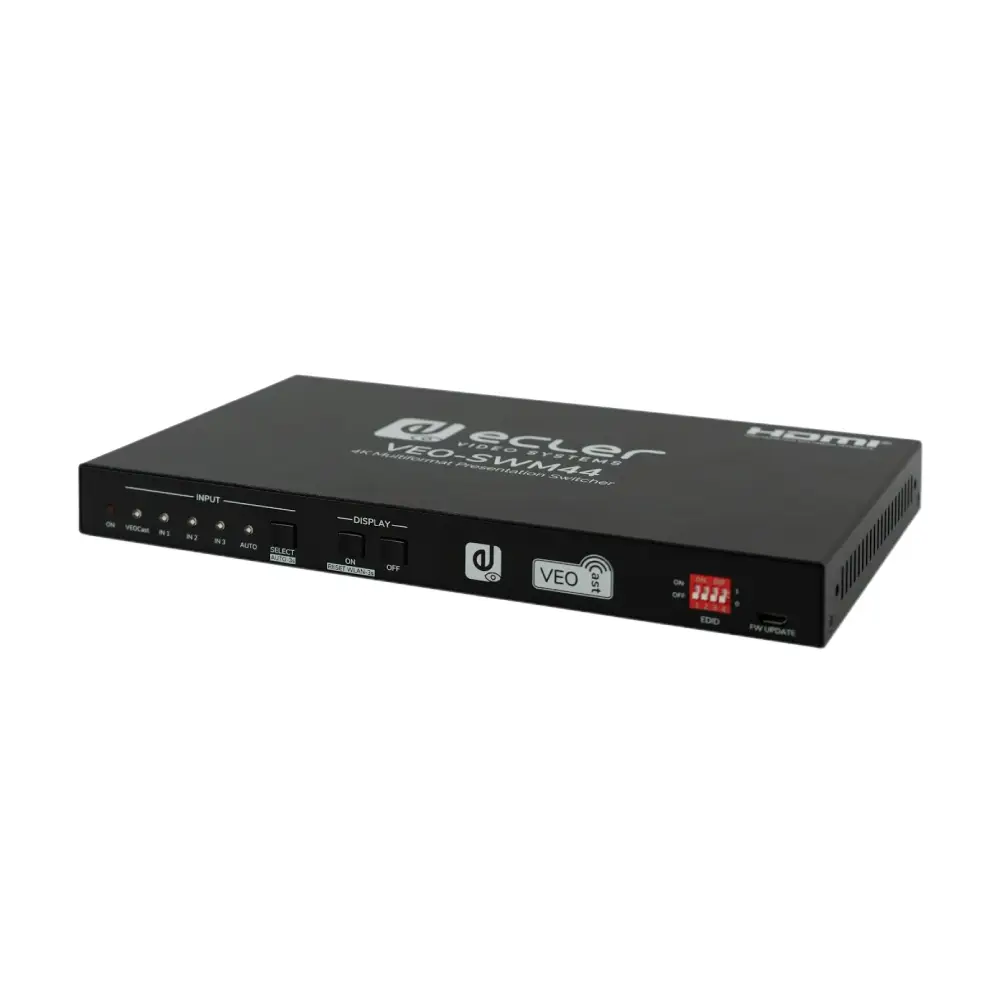

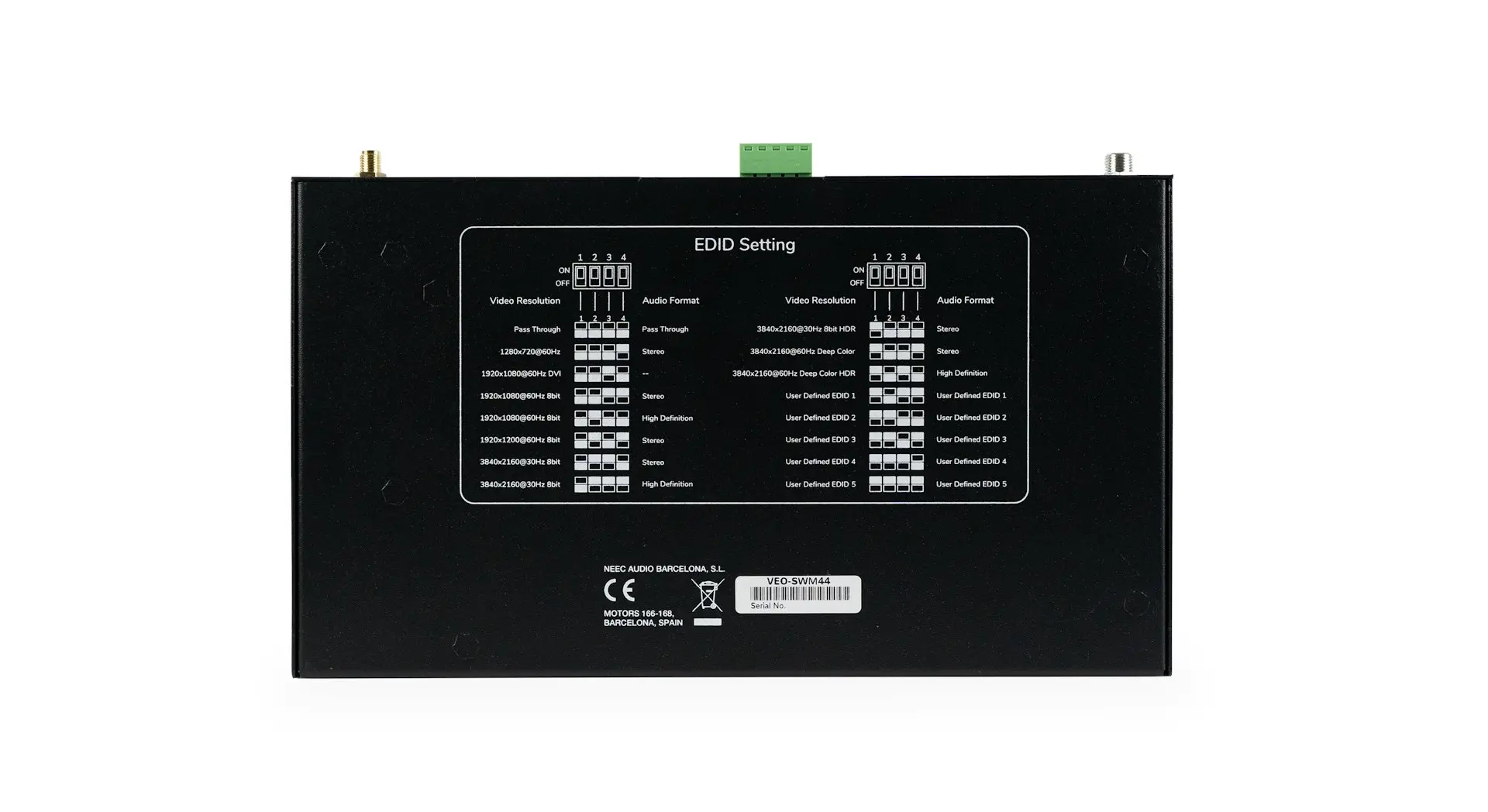

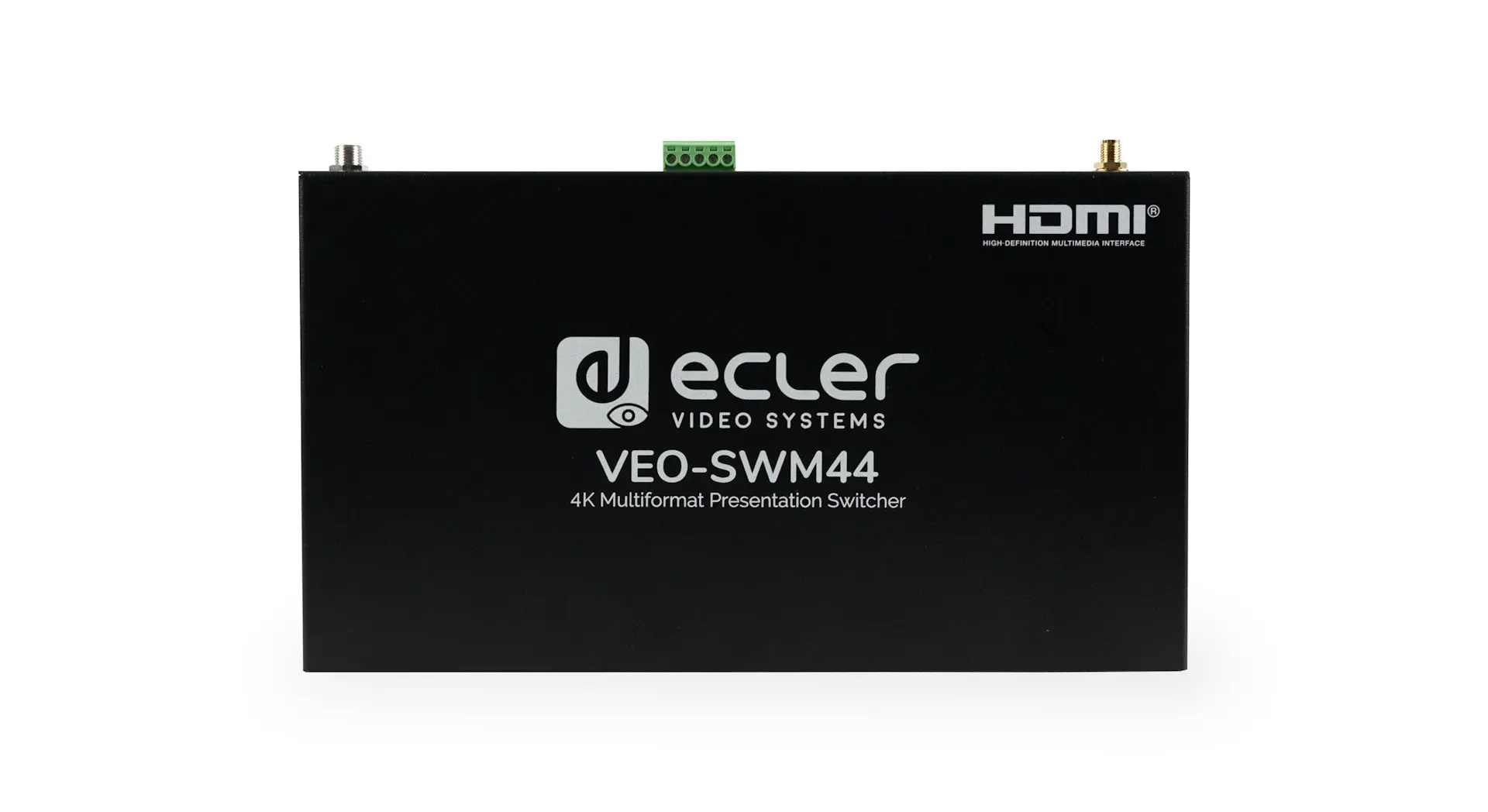

VEO-SWM44
VEO-SWM44 is a compact 4K presentation switcher that includes 2 HDMI®, a USB-C and wireless input selection via VEOCast to a single HDMI® output, supporting resolutions up to 4K/60Hz 4:4:4 HDR10 and Dolby Vision. An integrated audio de-embedder provides stereo analogue balanced outputs on Euroblock connectors. VEO-SWM44 includes 2 USB 3.0 type B and 2 USB 3.0 type A in order to support soft codec applications and external devices like webcam and KVM kits. Input selection is available via Auto-switching function, front panel buttons or RS-232. Display control via front panel buttons through CEC or RS-232. Smart EDID management and HDCP 2.2 support.
| Video Input Connectors | 2 x Type A female HDMI® 1 x Type C USB 3.0 with DP ALT-MODE connector 1 x External Antenna connector |
|---|---|
| Video Output Connectors | 1 x Type A female HDMI® |
| Video Input Resolutions | HDMI®: Up to 4Kx2K@60Hz 4:4:4 HDR10, Dolby Vision USB-C (DP Alt Mode compliant): Up to 4K@30Hz 4:4:4 VEOCast: Up to 4K@30Hz 4:4:4 |
| Video Output Resolutions | Up to 4Kx2K@60Hz 4:4:4 HDR10, Dolby Vision |
| Chroma Subsampling | 4:4:4 |
| HDCP | 2.2/1.4 Compliant |
| Colour Depth | Up to 12-bit |
VEO-SWM44
VEO-SWM44 is a compact 4K presentation switcher that includes 2 HDMI®, a USB-C and wireless input selection via VEOCast to a single HDMI® output, supporting resolutions up to 4K/60Hz 4:4:4 HDR10 and Dolby Vision. An integrated audio de-embedder provides stereo analogue balanced outputs on Euroblock connectors. VEO-SWM44 includes 2 USB 3.0 type B and 2 USB 3.0 type A in order to support soft codec applications and external devices like webcam and KVM kits. Input selection is available via Auto-switching function, front panel buttons or RS-232. Display control via front panel buttons through CEC or RS-232. Smart EDID management and HDCP 2.2 support.
