VEO-SWH44

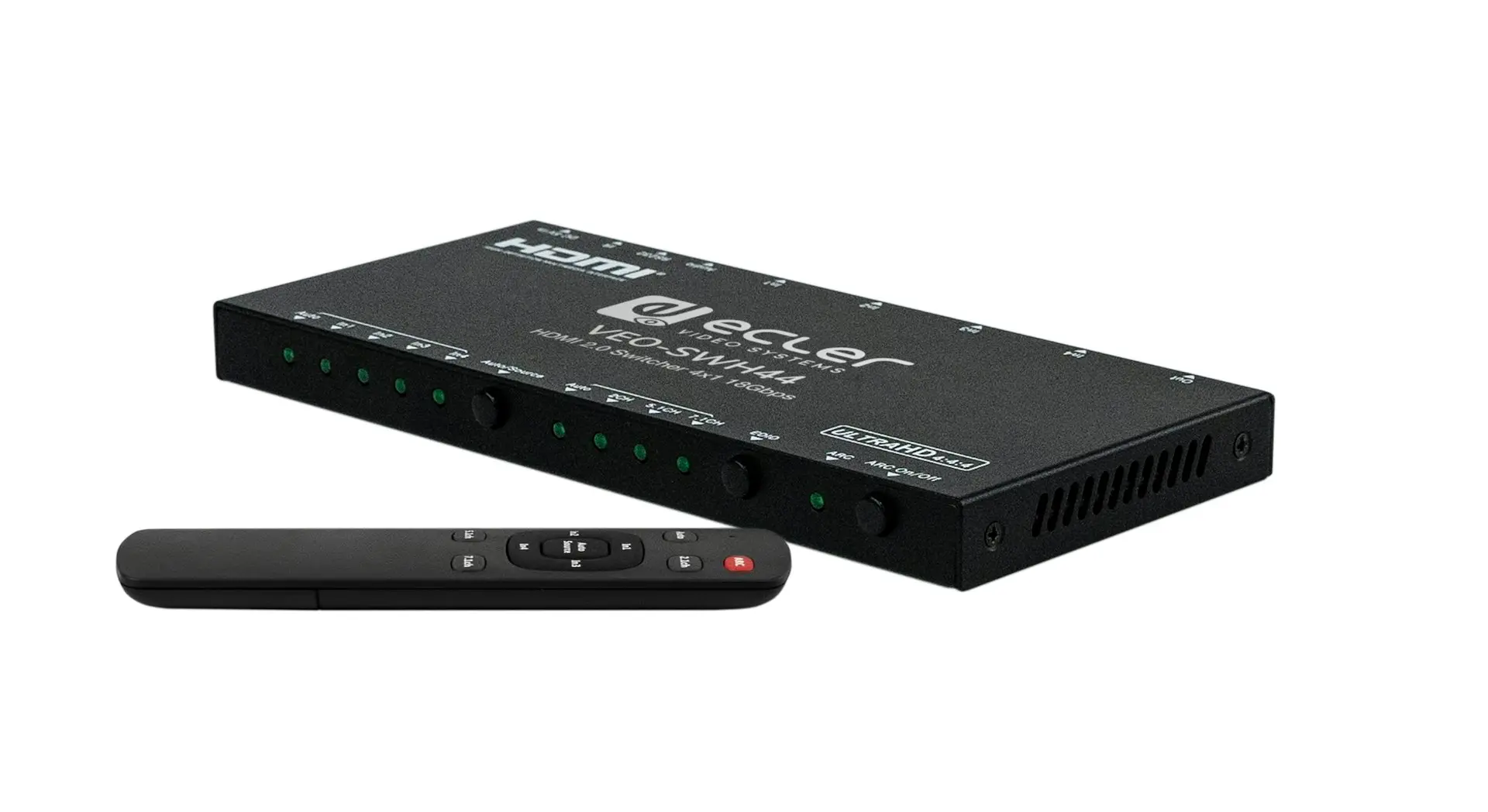

VEO-SWH44 is a 4×1 HDMI® switcher for high dynamic range (HDR) formats. It is the ideal solution for applications requiring 4K/UHD and HDR sources and displays. VEO-SWH44 includes audio de-embedding features and audio EDID management. The HDMI® selection could be automatic (sense selection) and manual (frontal panel, remote control or serial commands). The controls include ARC mute and LED indications of the selected sources and settings.
| Video Input Connectors | HDMI® Type A Female, 18 Gbps |
|---|---|
| Video Output Connectors | HDMI® Type A Female, 18 Gbps |
| Video Input Resolutions | 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p 1080p@23.98/24/25/29.97/30/50/59.94/60Hz,108 0i@50/59.94/60Hz,720p@50/59.94/60Hz, 576p,576i, 480p, 480i 1920x1200@60Hz |
| Video Output Resolutions | 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p 1080p@23.98/24/25/29.97/30/50/59.94/60Hz,108 0i@50/59.94/60Hz,720p@50/59.94/60Hz, 576p, 576i, 480p, 480i 1920x1200@60Hz |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Colour Depth | 8-bit, 10-bit, 12-bit |
| Colour Space | YCbCr, RGB |
| HDCP | 2.2, 1.4 Compliant |
| HDR | HDR10 |
