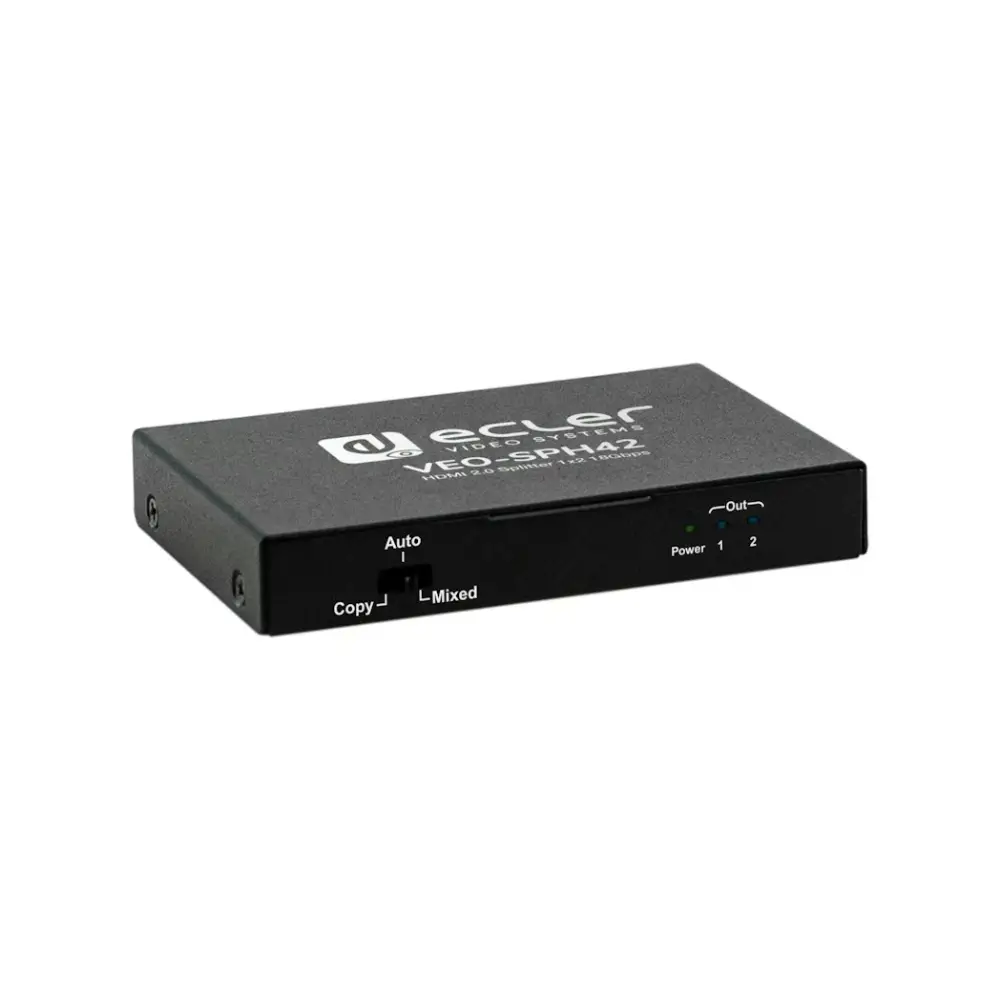

VEO-SPH42
VEO-SPH42 is a 1×2 HDMI® splitter for high dynamic range (HDR) formats. Simultaneously displays an UItra Hi-Definition source on up to two UItra HD displays.
| Video Input Connectors | 1 HDMI® Type A Female, 2.0, 18 Gbps |
|---|---|
| Video Output Connectors | 2 HDMI® Type A Female, 2.0, 18 Gbps |
| Video Input Resolutions | Up to 4096x2160@60Hz 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p 1080p@23.98/24/25/29.97/30/50/59.94/60Hz,1080i@50/59.94/60Hz,720p@50/59.94/60Hz, 576p, 576i, 480p, 480i |
| Video Output Resolutions | Up to 4096x2160@60Hz 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p 1080p@23.98/24/25/29.97/30/50/59.94/60Hz,1080i@50/59.94/60Hz,720p@50/59.94/60Hz, 576p, 576i, 480p, 480i |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Colour Depth | 8-bit, 10-bit, 12-bit |
| Colour Space | RGB, YCbCr |
| HDCP | 2.2/1.4 Compliant |
VEO-SPH42
VEO-SPH42 is a 1×2 HDMI® splitter for high dynamic range (HDR) formats. Simultaneously displays an UItra Hi-Definition source on up to two UItra HD displays.
