VEO-DACS4

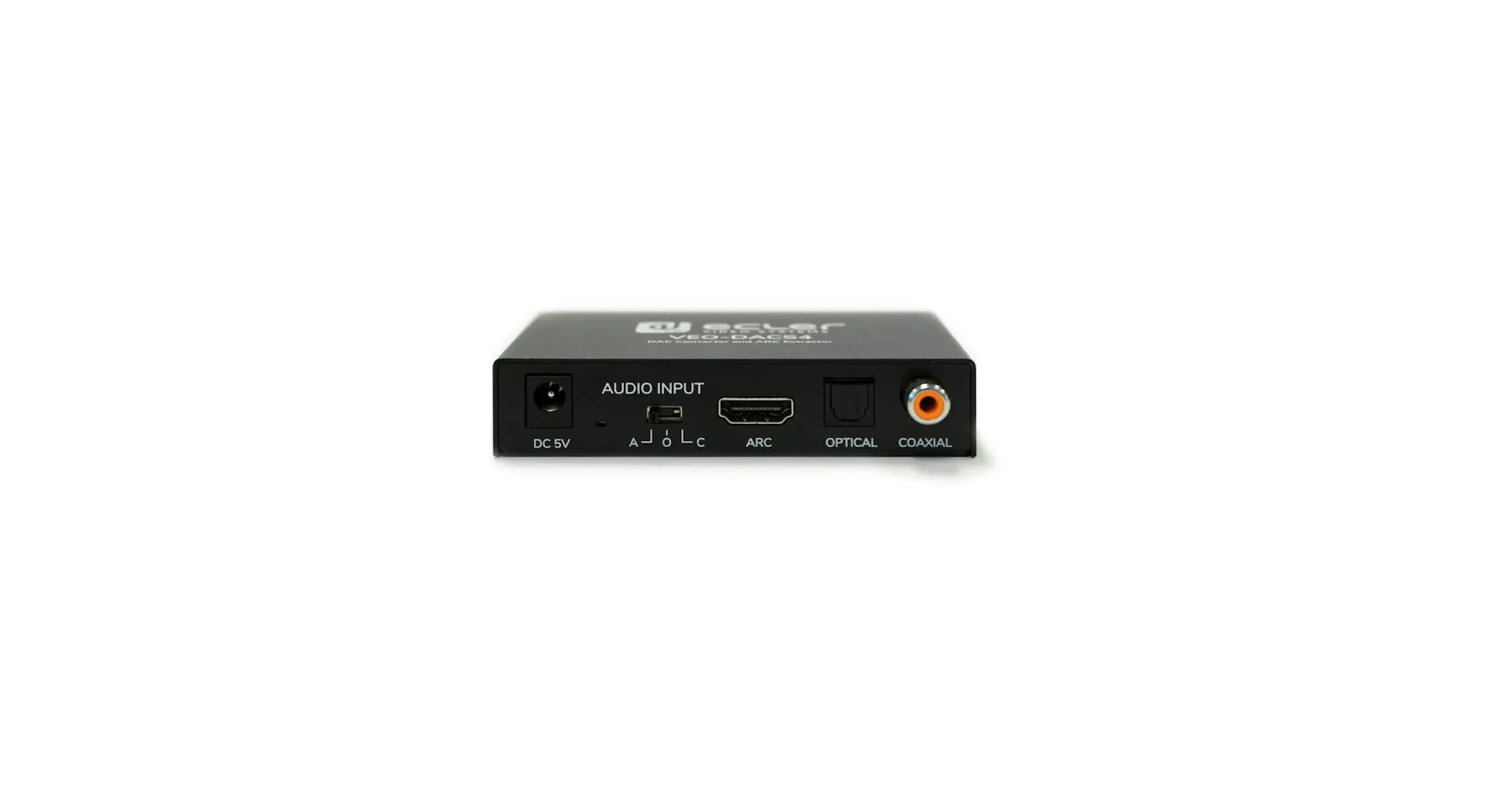

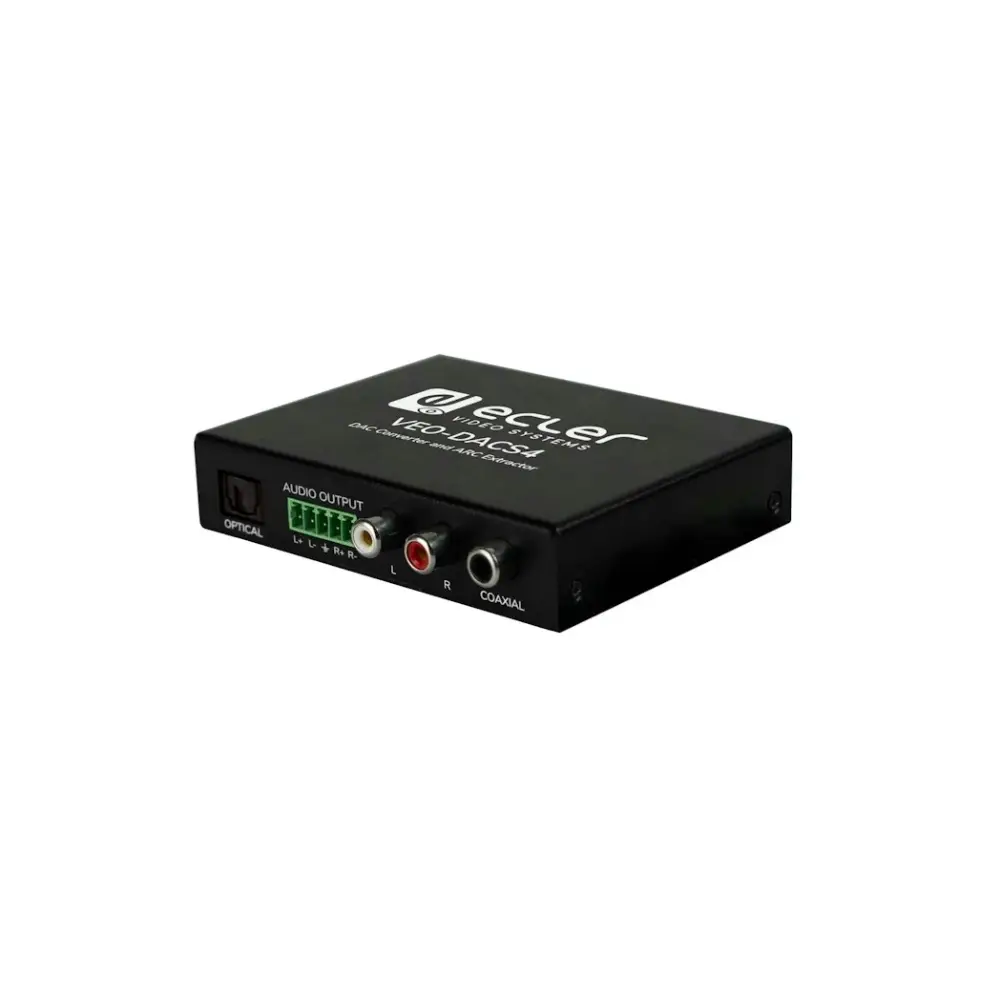

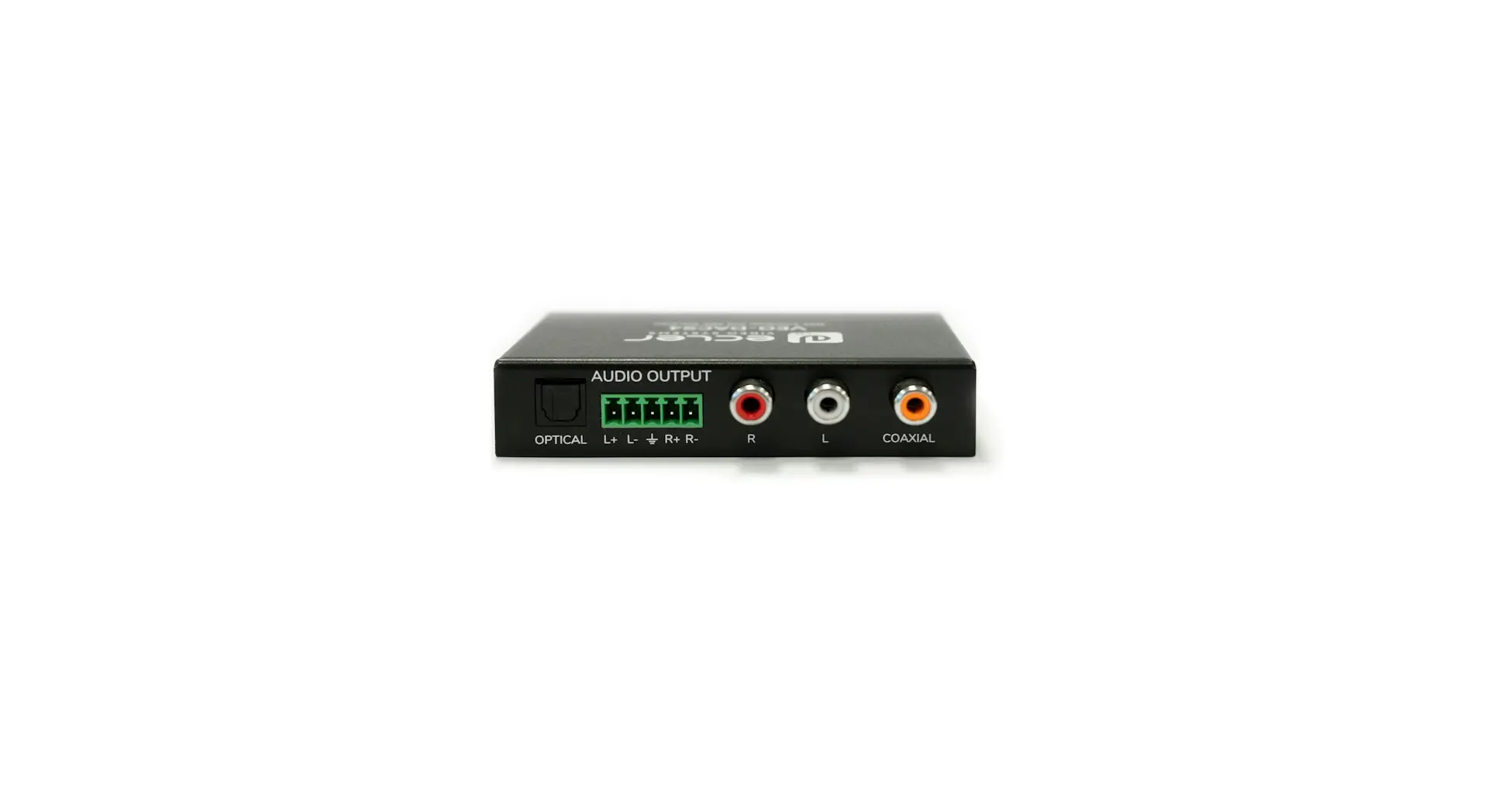

VEO-DACS4 allows converting digital audio signals from HDMI® ARC and S/PDIF optical or coaxial inputs to a stereo analogue signal. In addition it can be used to convert digital S/PDIF audio coming from the optical input to coaxial and vice versa. It provides a stereo unbalanced analogue output on Euroblock and RCA connectors. Function mode is selectable through the onboard switch.
| Video Input Connectors | HDMI® |
|---|---|
| HDMI® Distance | 10m / 33ft with Ecler VEO Cables |
| Audio Input Connectors | 1 x HDMI® (ARC) 1 x S/PDIF Toslink 1 x S/PDIF Coaxial |
| Audio Output Connectors | 1 x 5pins Euroblock for Stereo Balanced Output (PCM 2.0) 1 x S/PDIF Toslink 1 x S/PDIF Coaxial |
| Audio Formats | Dolby Digital, DTS 5.1, PCM |
| Sample Rate | up to 192KHZ |
| Bit Depth | 16 to 24-bit |
| Frequency Response | 20Hz-20KHz (±3dB) |
| ARC/eARC | ARC extractor |
