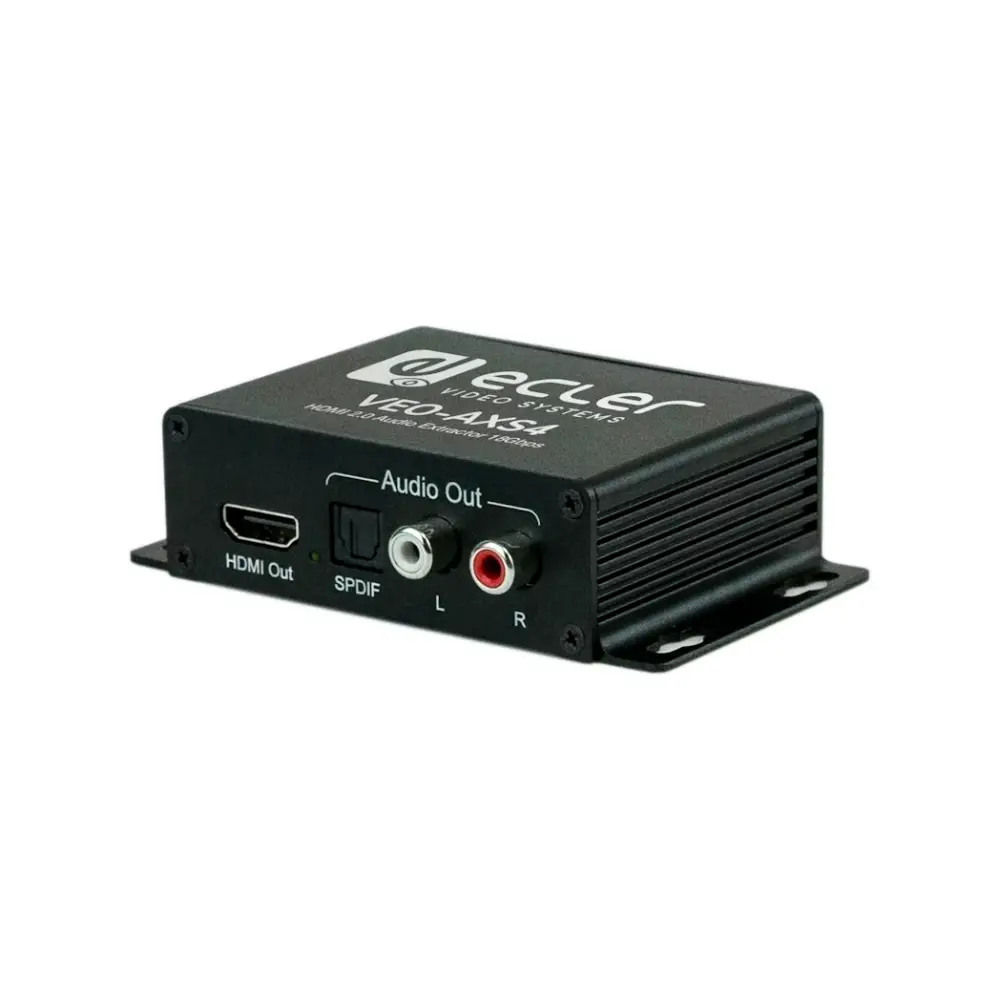

VEO-AXS4

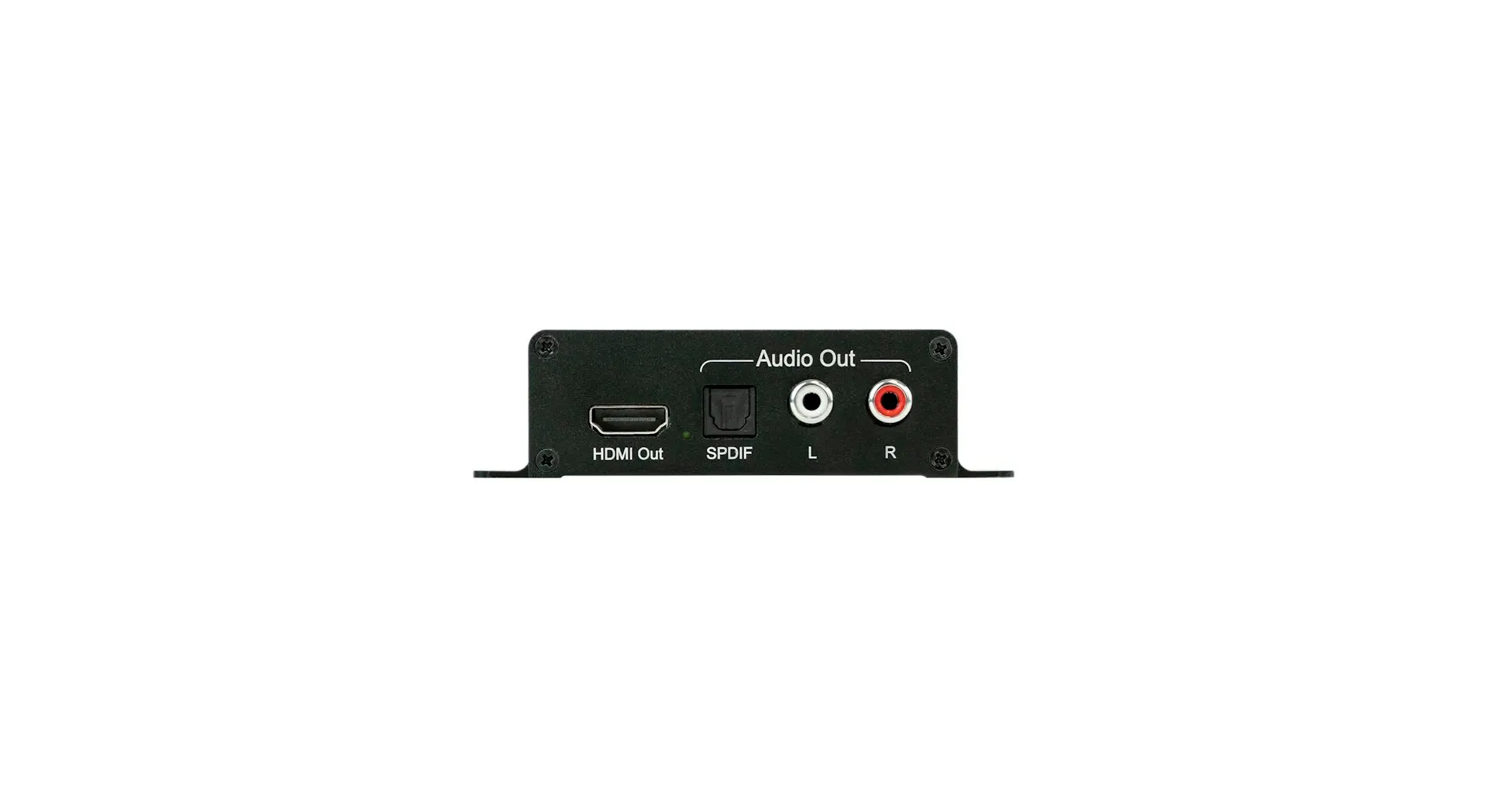

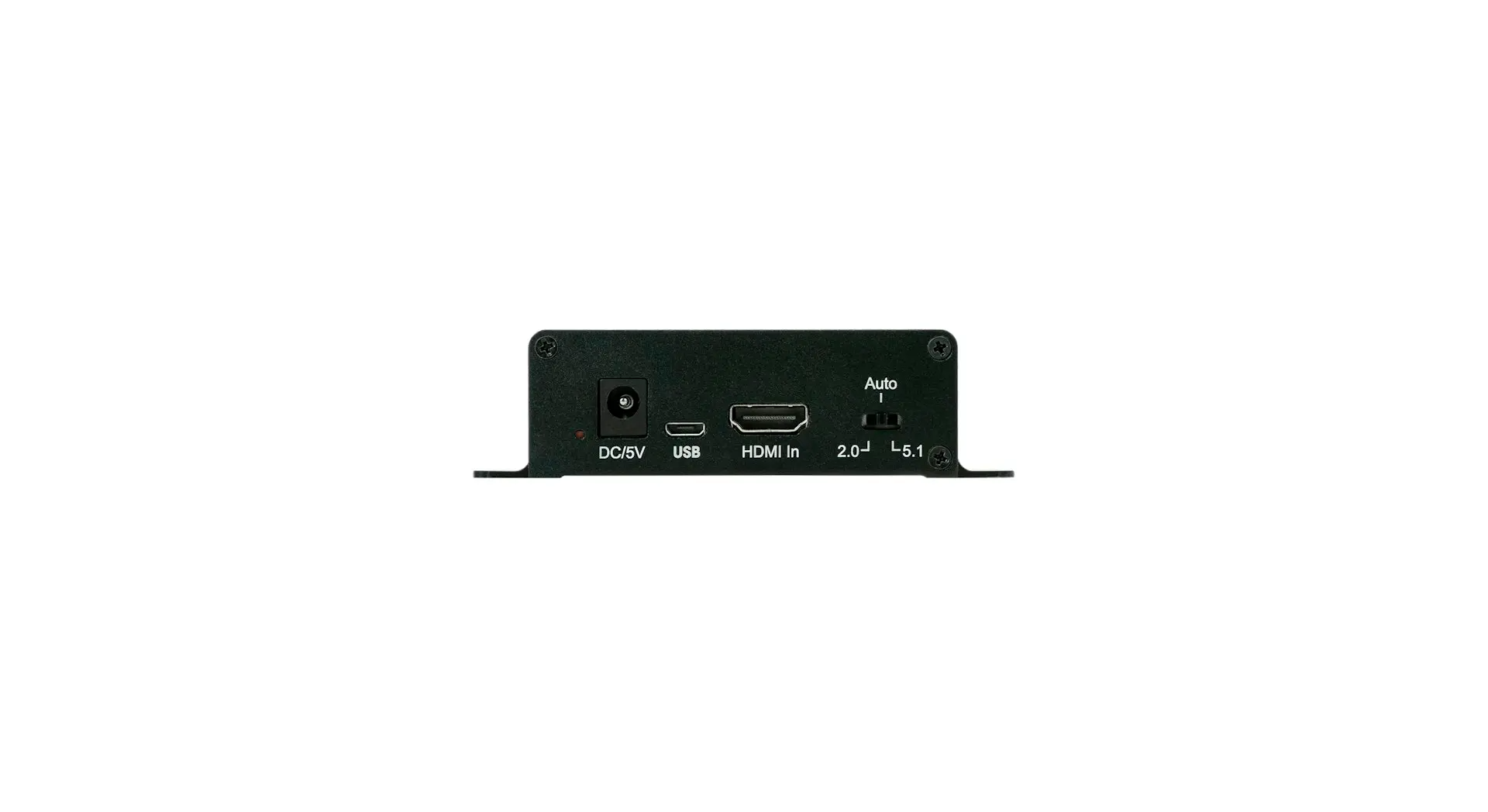

VEO-AXS4 allows to extract audio signals from HDMI® signals up to 4K. It provides a stereo analog output on RCA connectors or a 5.1 digital output on Toslink connector, selectable through the onboard switch.
| Video Input Connectors | HDMI® Type A Female, 2.0, 18 Gbps |
|---|---|
| Video Output Connectors | HDMI® Type A Female, 2.0, 18 Gbps |
| Video Input Resolutions | 4Kx2K@60Hz/1080P/1080i/720p/576p/576i/480p/480i |
| Video Output Resolutions | 4Kx2K@60Hz/1080P/1080i/720p/576p/576i/480p/480i |
| Chroma Subsampling | 4:4:4 |
| Colour Depth | 8-bit, 10-bit, 12-bit |
| Colour Space | RGB, YCbCr |
| HDCP | 2.2/1.4 Compliant |
VEO-AXS4
VEO-AXS4 allows to extract audio signals from HDMI® signals up to 4K. It provides a stereo analog output on RCA connectors or a 5.1 digital output on Toslink connector, selectable through the onboard switch.
