VEO-AEXS4

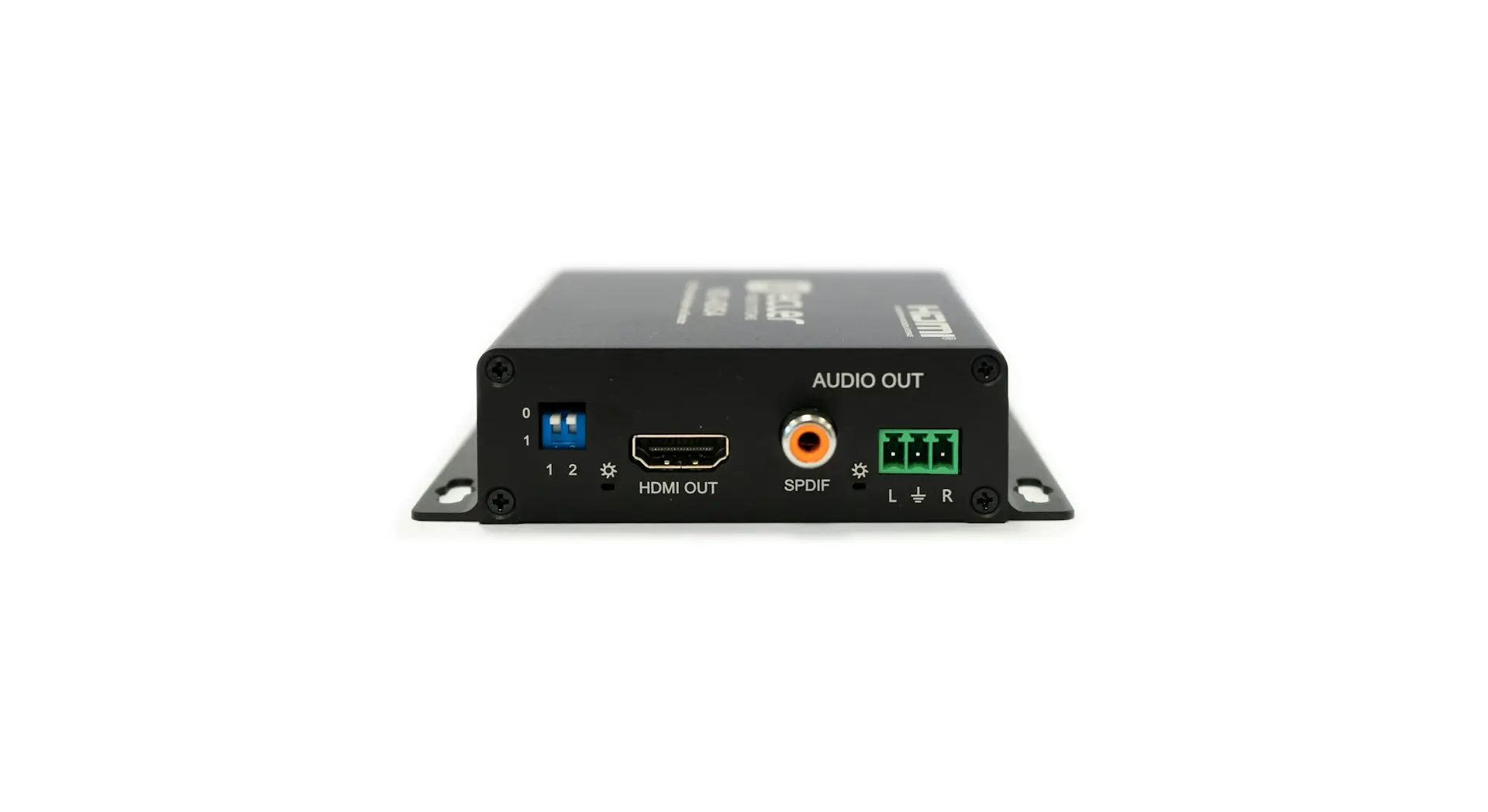

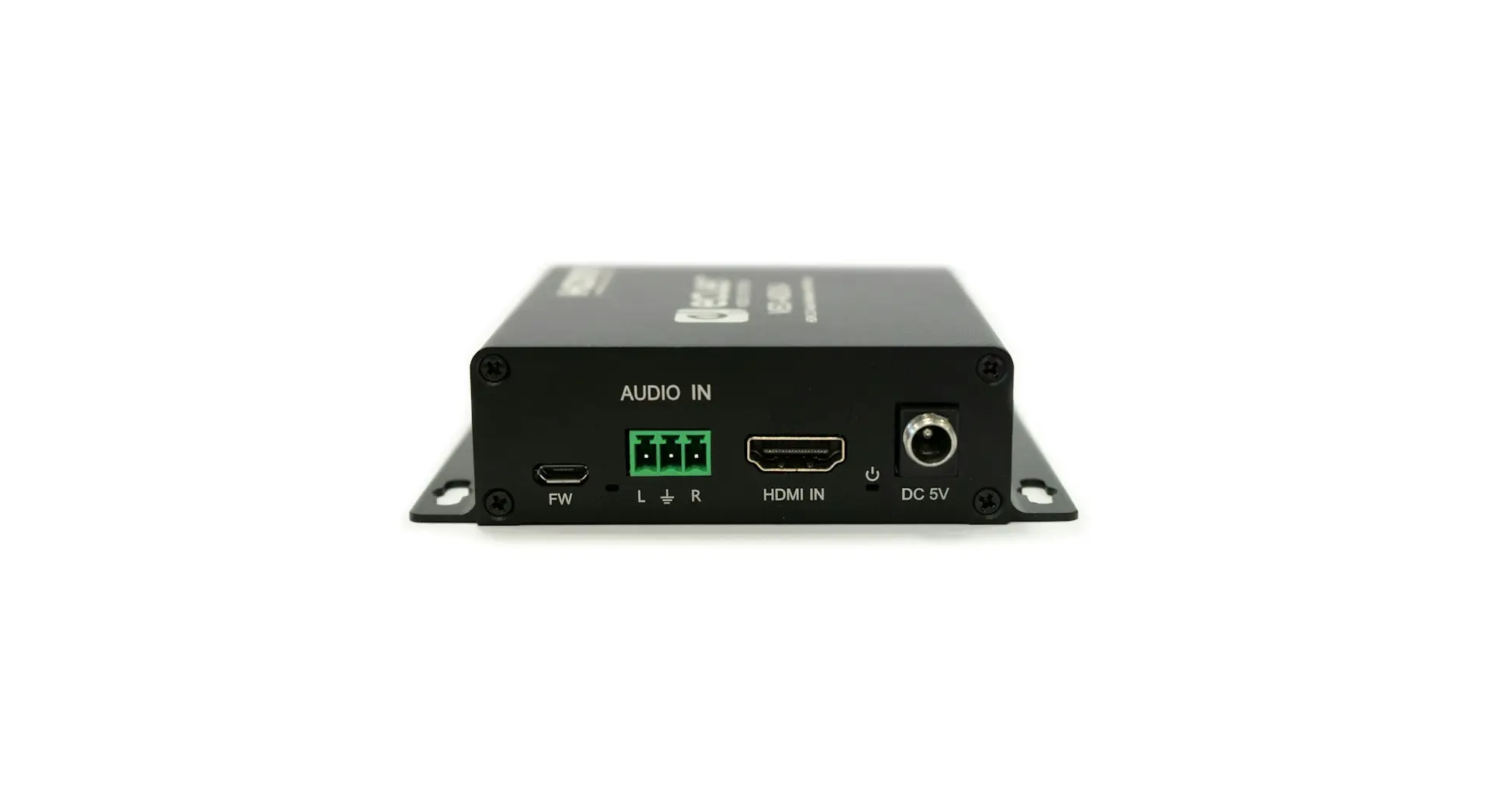

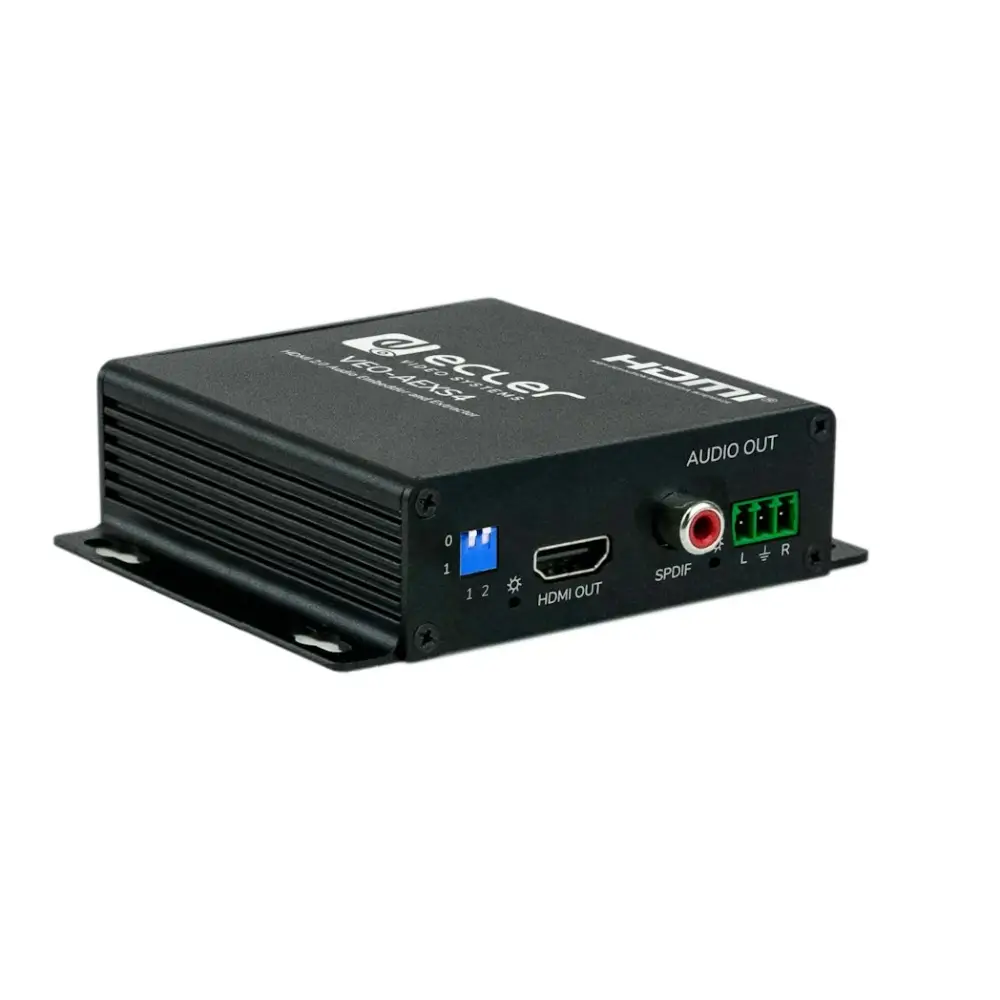

VEO-AEXS4 allows to extract and embed audio signals from the HDMI® input with support up to 4K video. It includes an unbalanced stereo analogue input and output with Euroblock connectors and a digital S/PDIF output with a coaxial connector. Function mode is selectable through the onboard dip-switch.
| Video Input Connectors | HDMI® 2.0 |
|---|---|
| Video Output Connectors | HDMI® 2.0 |
| Video Input Resolutions | 4096x2160@60Hz, UHD@60Hz, 1080p@60Hz |
| Video Output Resolutions | 4096x2160@60Hz, UHD@60Hz, 1080p@60Hz |
| Chroma Subsampling | 4:4:4 4:2:2 |
| Colour Depth | 8-bit, 10-bit, 12-bit |
| Colour Space | RGB, YCbCr |
| HDCP | 2.0 compliant |
VEO-AEXS4
VEO-AEXS4 allows to extract and embed audio signals from the HDMI® input with support up to 4K video. It includes an unbalanced stereo analogue input and output with Euroblock connectors and a digital S/PDIF output with a coaxial connector. Function mode is selectable through the onboard dip-switch.
