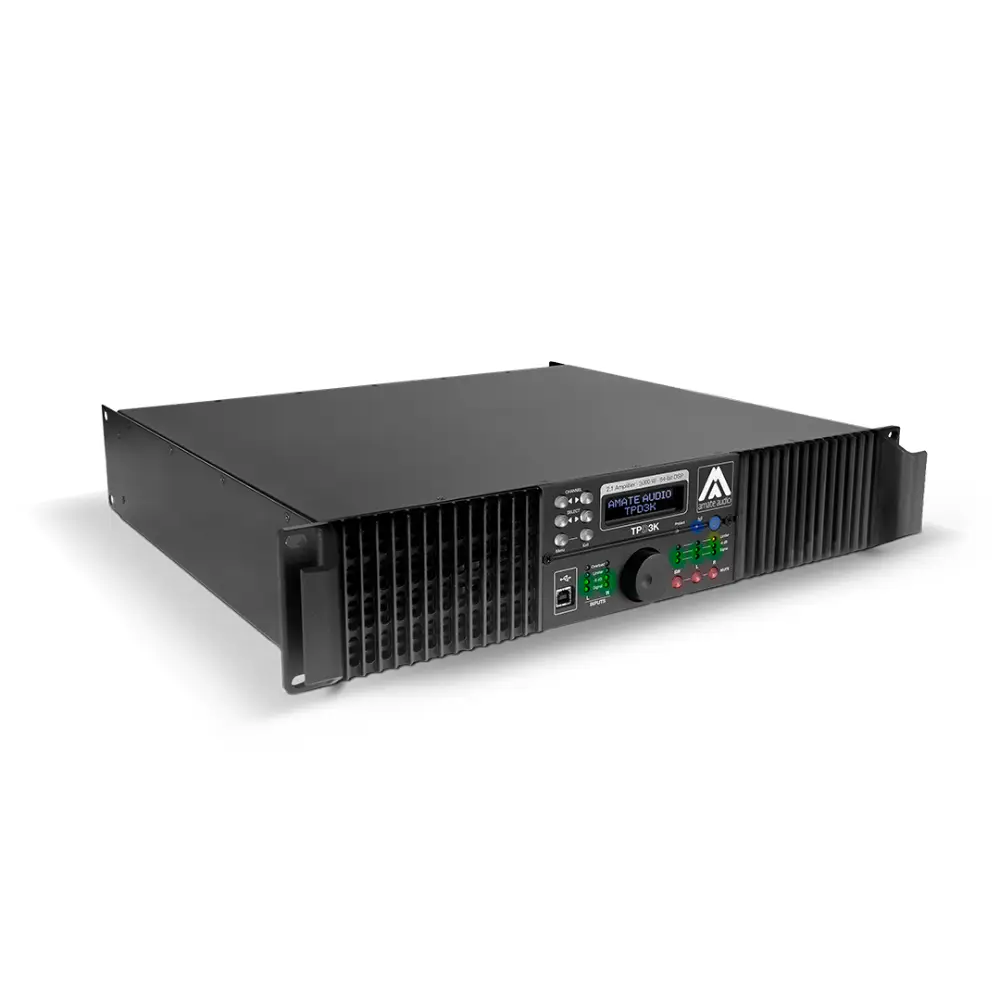

TPD3K
Our most iconic all-in-one digital amplification unit has improved! Welcome TPD3K. From the legacy of the original TP born in 1986 we developed the TPD with integrated DSP, Class D amplification and improvement in the analogue circuit stage.
Now we went further.
We present the new TPD3K: 3000W of total amplification in a compact multifunctional unit that allows to drive bigger, more powerful speakers. With more gain, more amplification for both subwoofer and the stereo channels and a virtually the same weight the new TPD3K gives us more to drive our top Nítid series speakers. This is why we factory include the presets for the N218WP subwoofer and the N15P/N15PR cabinets. We combined them both perfectly for
guarantee power, protection and sound fidelity for our sound system, as always with our factory presets.
| Sensitivity | 1.5 V |
|---|---|
| Input Impedance | >10 kΩ |
| Output Power (1) | L & R 400 + 400 W @ 8 Ω / 750 + 750 W @ 4 Ω Subwoofer 1500 W @ 8 Ω / 2000 W @ 4 Ω |
| Average Current Draw (2) | 5 A @ 230VAC |
| Frequency Response (adjustable DSP) | L & R 70 Hz – 20 kHz (-3 dB) Subwoofer 30 Hz – 200 Hz (-3 dB) |
| Damping Factor (1 kHz @ 8 Ω) | L & R > 1200, Subwoofer > 600 |
| Crosstalk | 65 dB |
| THD | < 0.05% |
| S/N Ratio (A-weighted) | 104 dB |
| Mains | 85~240 V AC- 50/60 Hz |
| Dimensions (HxWxD) | 88 x 482 x 370 mm (2U Rack 19”) |
| Weight | 8.5 kg |
