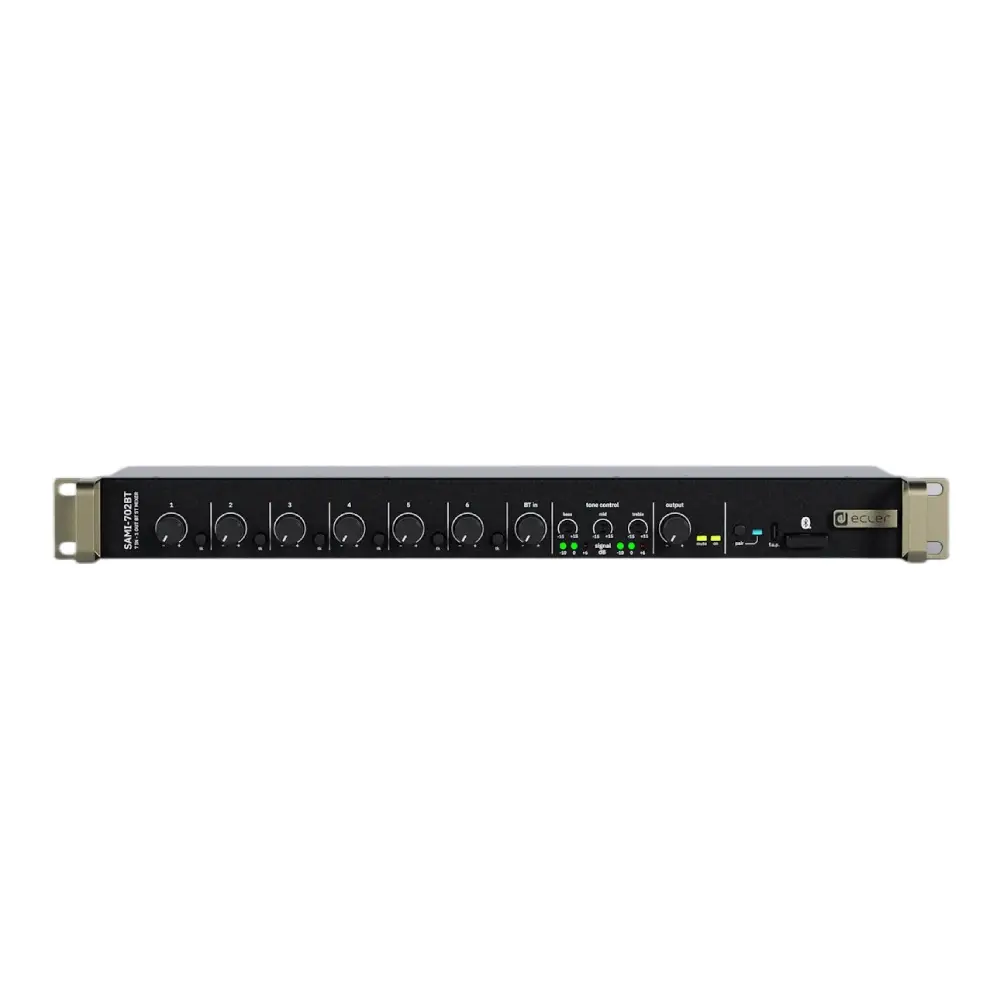

SAMI-702BT
SAMI-702BT is an installation audio mixer in standard rack format, featuring 6 MIC/LINE Stereo inputs + 1 Bluetooth® Stereo input, 1 main mix output and one AUX/REC additional output. It includes a 3 band tone control section, Talkover (priority) function assignable to each MIC/LINE input over the mix bus, ST/MONO mix switch and MUTE port for external dry contact triggering.
| Number of input ports | 6, MIC/LINE 1, BT in (Bluetooth® LINE STEREO) |
|---|---|
| Connection type | MIC: 3-pin Euroblock LINE/MIX: RCA Bluetooth® Receiver |
| Input sensitivity | LINE 1-6: 0dB Bluetooth® LINE 7: 0dB/-6dB (internally selectable) MIC BAL: -35dB |
| Input sensitivity adjust | MIC/LINE 1-6: ±15dB |
| Input impedance | LINE 1-6: 50kΩ MIC BAL: >1kΩ |
| CMRR | MIC: >60dB @ 1 kHz |
| Phantom voltage | +18VDC |
