SAMI-603

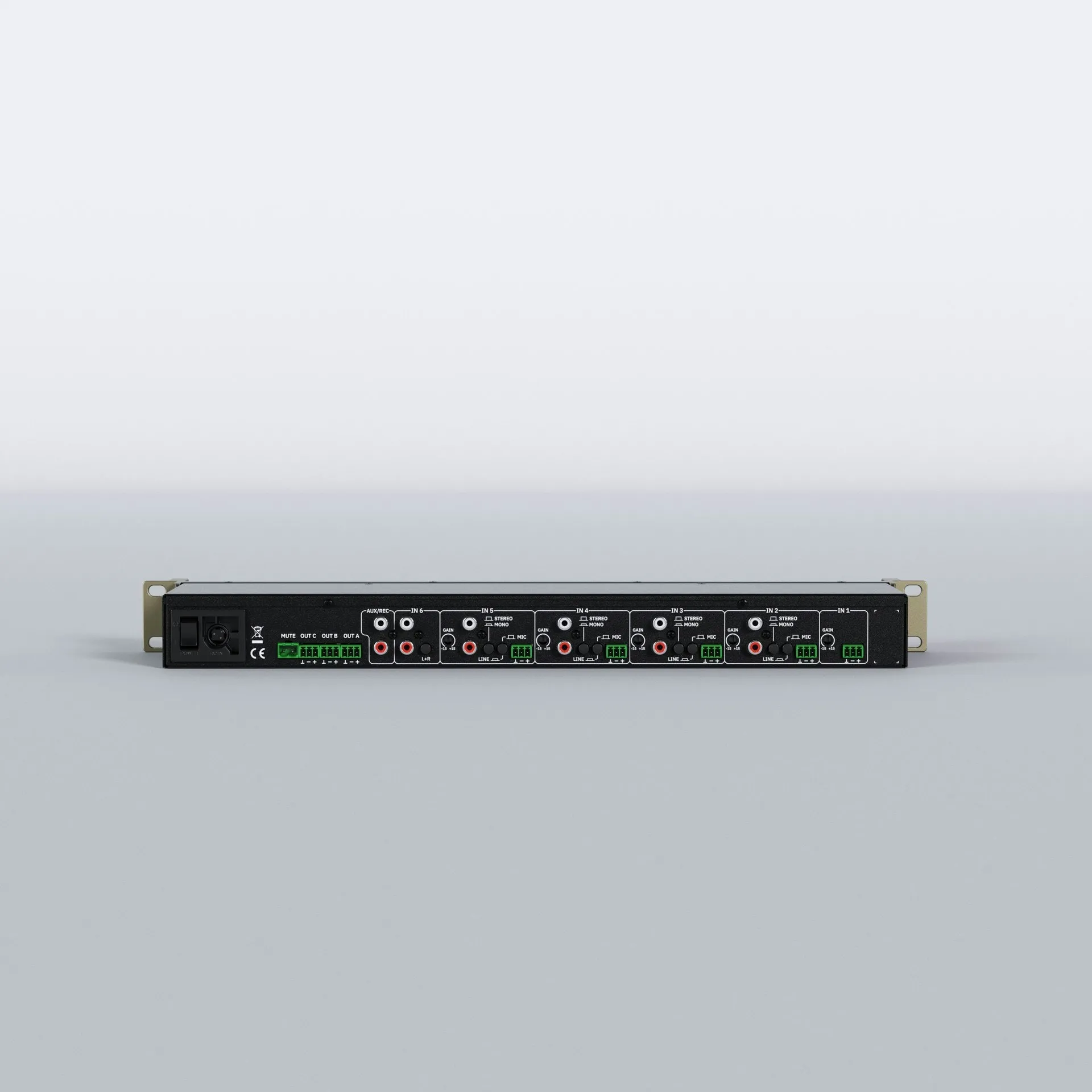

SAMI-603 is an installation audio mixer in standard rack format, featuring 1 MIC input + 4 MIC/LINE Stereo inputs + 1 LINE Stereo input and 3 outputs that can be configured as 1 stereo couple + 1 mono or 3 independent mono. Each output can get a dedicated mix from the available inputs and has a 3-band tone control. Talkover (priority) function is assignable to each input from IN1 to IN5 over the mix output buses. ST/MONO mix switch for the A/B outputs and MUTE port for external dry contact triggering.
| Number of input ports | 4, MIC/LINE 1, MIC 1, LINE STEREO |
|---|---|
| Connection type | MIC: 3-pin Euroblock LINE: RCA |
| Input sensitivity | LINE 2-5: 0dB LINE 6: 0dB/-6dB (internally selectable) MIC 1-5 BAL: -35dB |
| Input sensitivity adjust | MIC/LINE: ±15dB |
| Input impedance | LINE 2-5: 50kΩ LINE 6: 50kΩ MIC 1-5 BAL: >1kΩ |
| CMRR | MIC: >60dB @ 1 kHz |
| Phantom voltage | +18VDC |
