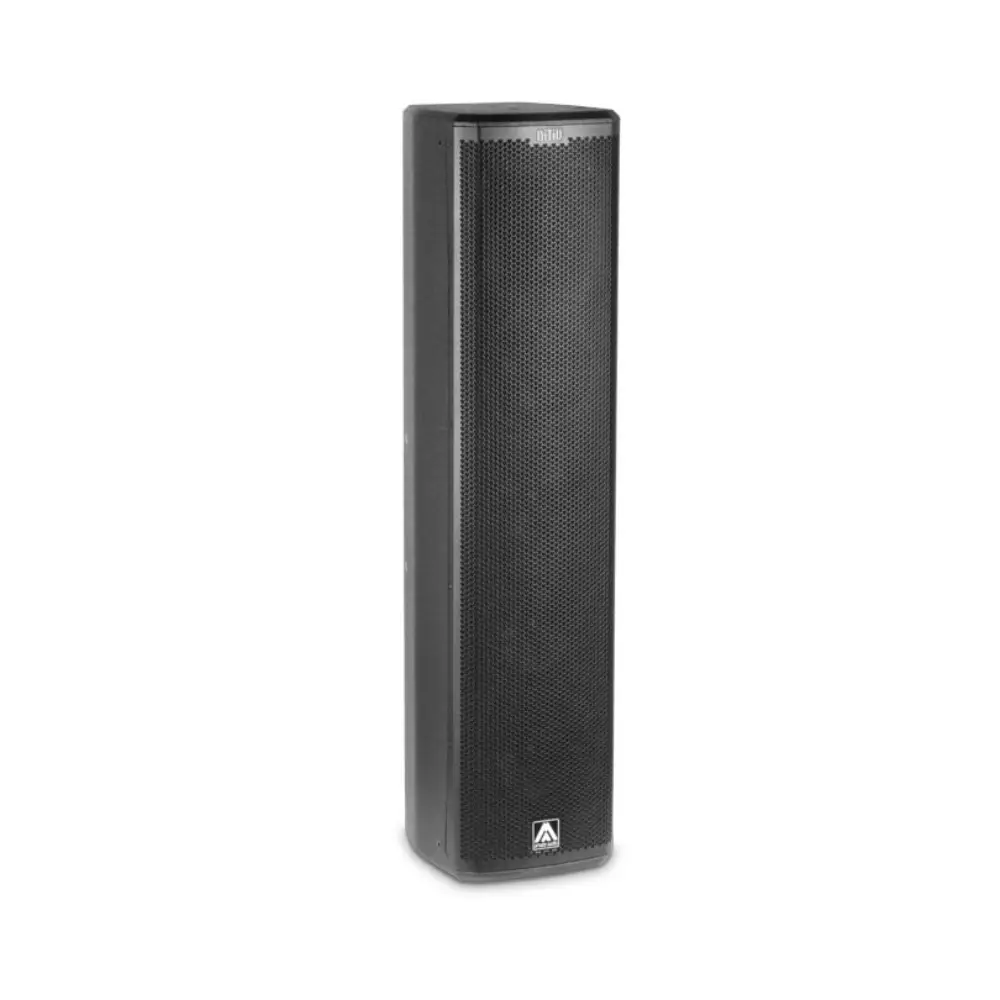

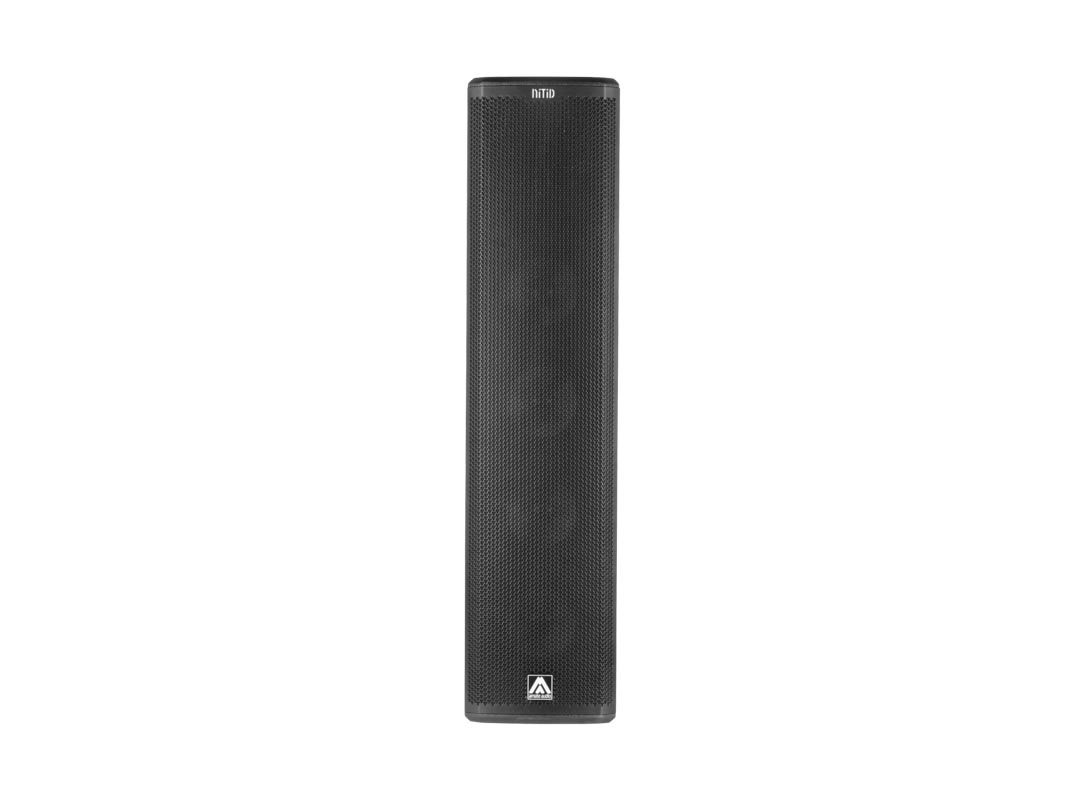

S46P
Full range, high-fidelity signal reproduction with exceptional LF response. The S46P provides high intelligibility, musicality and 126 dB continuous SPL, for unrivalled coverage in all kinds of large and medium auditoria and entertainment venues.
Carbon fiber cones
Asymmetrical dispersion horn
High resistance Polyurea® finish
Easy rigging & installation accessories| Program power | 800 W |
|---|---|
| Impedance | 8 Ω |
| SPL (1W/1m) | 97 dB |
| Maximum SPL (continuous/1m) | 126 dB |
| Frequency response (-10 dB) | 50 Hz – 19 kHz |

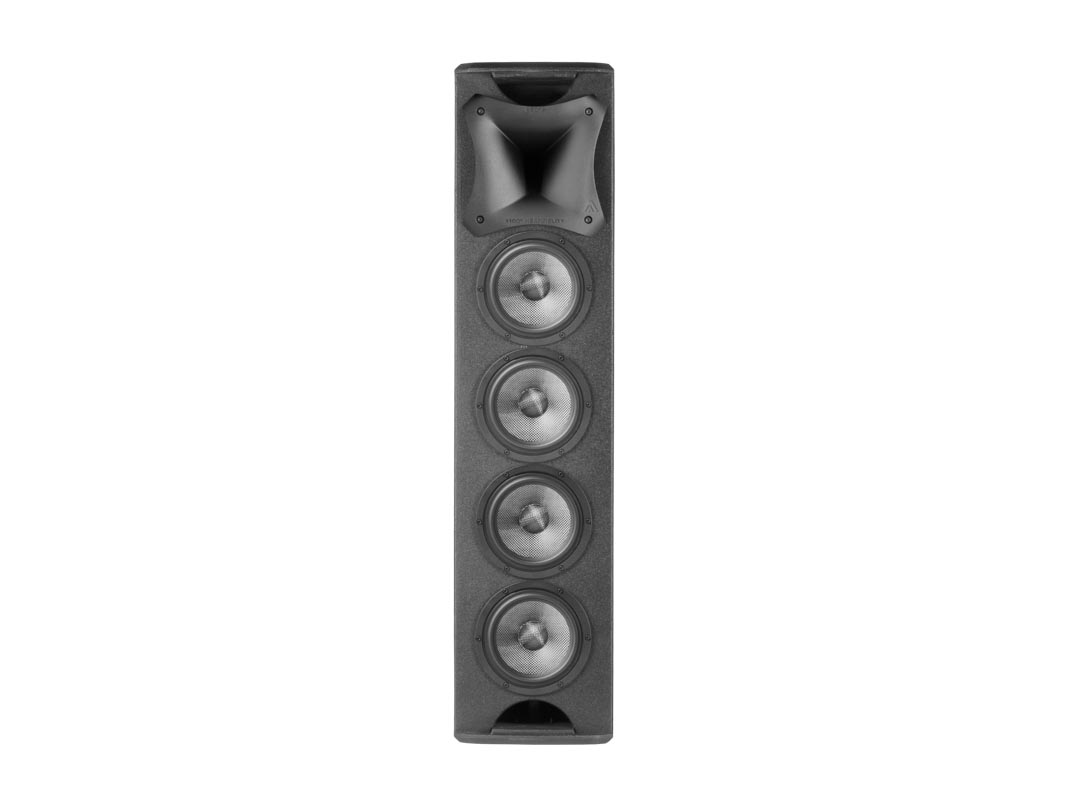

| LF | 4x 6” neodymium woofers with carbon fiber cone (1.5” voice coil) |
| HF | 1.4” polyester diaphragm compression driver |
| Directivity (-6dB) | 50º to 100º (H) x 55º (V) |
| Dimensions (HxWxD) | 1056 x 250 x 274 mm |
| Weight | 19.7 Kg |
| Finish | Multilayer baltic birch plywood with high resistant black Polyurea® coating |
| Grille | 1.5 mm powder coated steel with black acoustic mesh |
| Connectors | 1x Speakon NL4MP input / 1x Speakon NL4MP link |
Protective Cover
NC-S46 for S46P
Telescopic Distance Rod
SP/CRTL- for S46P
M8 Rigging Eyebolt
ACR-M8 - for S46P
S46P
Full range, high-fidelity signal reproduction with exceptional LF response. The S46P provides high intelligibility, musicality and 126 dB continuous SPL, for unrivalled coverage in all kinds of large and medium auditoria and entertainment venues.
CUSTOM CARBON FIBER DRIVER 6″ high-performance low frequency driver
A custom 6″ low-frequency driver featuring a carbon fiber cone, specially developed rubber suspension, and a neodymium magnet.
This ultra-powerful yet lightweight design delivers near-audiophile signal accuracy, extended low-frequency response, and high SPL performance.
