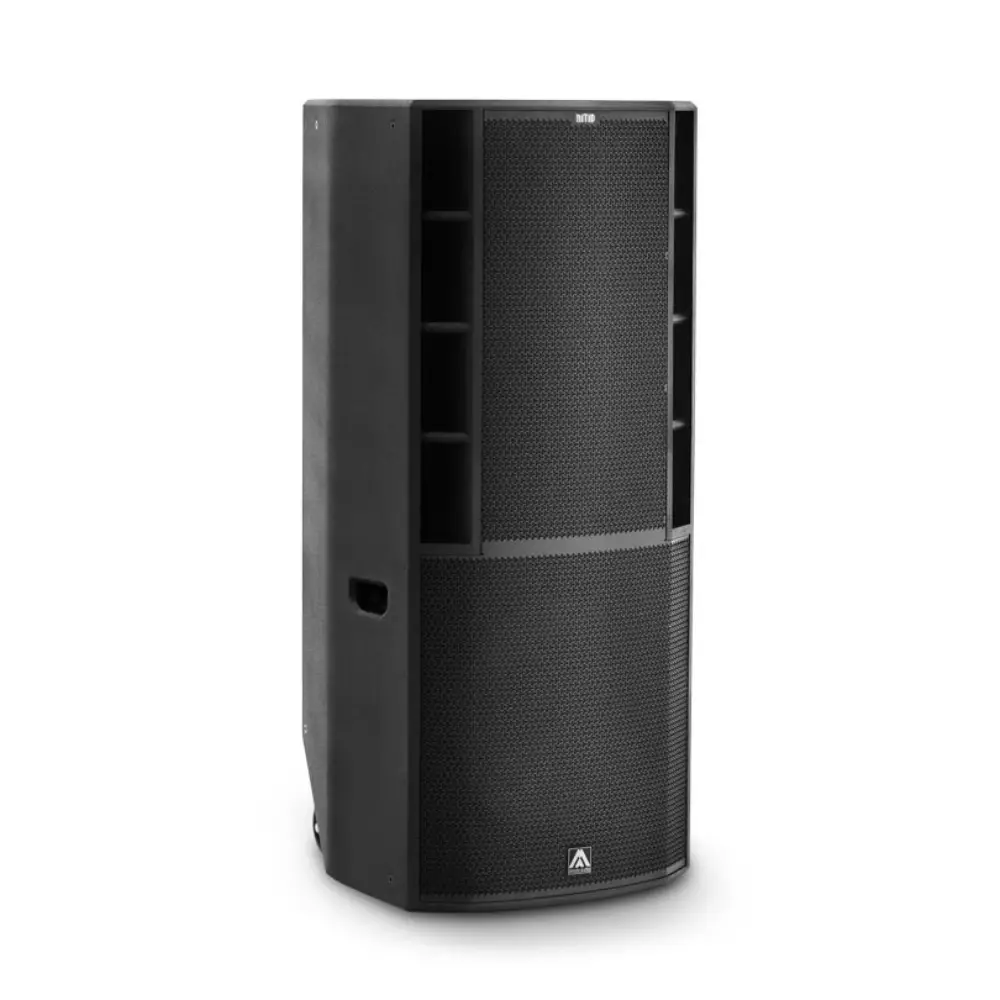

S318
A single enclosure three-way system without equal. Equipped with a smart two-wheel transport system and with a weight of 63 kg, a single person can move this 3200 W enclosure into position for an instant, massive sound experience.
Integrated power & control with multiple presets
Long throw
High resistance Polyurea® finish
3200 W self-powered 3-Way System| Amplifier program power | 2400 W (LF) + 800 W (MF-HF) Class D Bi-amplified |
|---|---|
| Input sensitivity | 8 dBu – 1.94 V |
| Input impedance | 50 KΩ Balanced |
| Mains | Universal switch mode Power Supply 85-265 V / 45-65 Hz |
| Average current draw | 5.5 A (Heavy duty musical program) |
| SPL (1m) | 133 dB continuous, 136 dB peak |
| Built-in DSP | 64-bit processing unit. Includes factory presets. |
| AD/DA converters | 24 bit – 48 kHz |
| Presets | FLAT / NEARFIELD / LONGTHROW / SPEECH |
| Standby mode consumption | 5 W @230VAC |
| Adjustable delay line | 294 ms / 100 m |
| Frequency response (-10 dB) | 35 Hz – 19 kHz |

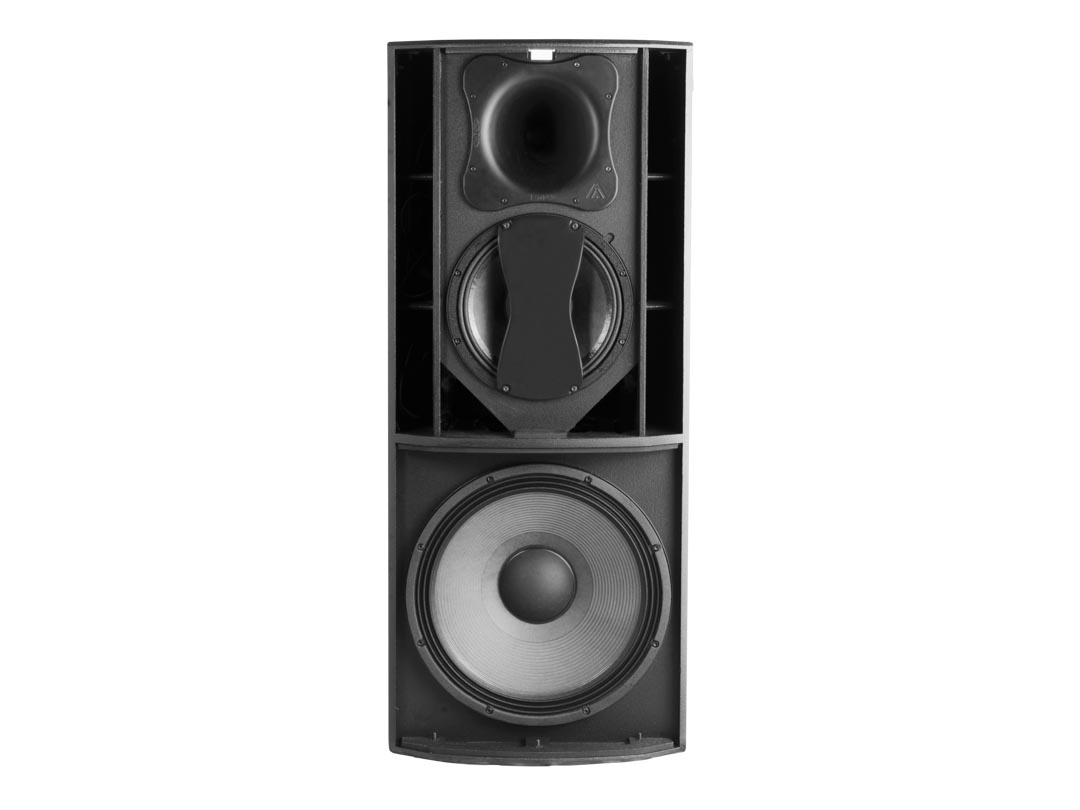

| LF | 18” woofer (4″ voice coil) |
| MF | 12” neodymium woofer (3″ voice coil) |
| HF | 1.75” PM4 diaphragm compression driver |
| Directivity (-6 dB) | 60º (H) x 50º (V) |
| Dimensions (HxWxD) | 1230 x 520 x 540 mm |
| Weight | 63 kg |
| Finish | Multilayer birch plywood with high resistant black Polyurea® coating |
| Grille | 2mm powder coated steel with black acoustic mesh |
| Connectors | 1x XLR input / 1x XLR link / 1xAC PowerCon® input / 1xAC PowerCon® link |
Protective Cover
NC-S318 for S318
M8 Rigging Eyebolt
ACR-M8 for S318
S318
A single enclosure three-way system without equal. Equipped with a smart two-wheel transport system and with a weight of 63 kg, a single person can move this 3200 W enclosure into position for an instant, massive sound experience.
TOUCHSCREEN CONTROL Integrated DSP and Class D amplification
Amate Audio’s latest-generation DSP system management is fully integrated with 3rd-generation Class D amplification.
The color touchscreen enables intuitive operation and monitoring, with access to powerful presets engineered by Amate Audio’s R&D team to instantly configure Nítid loudspeakers for most common applications within seconds, prior to rigging or installation.
