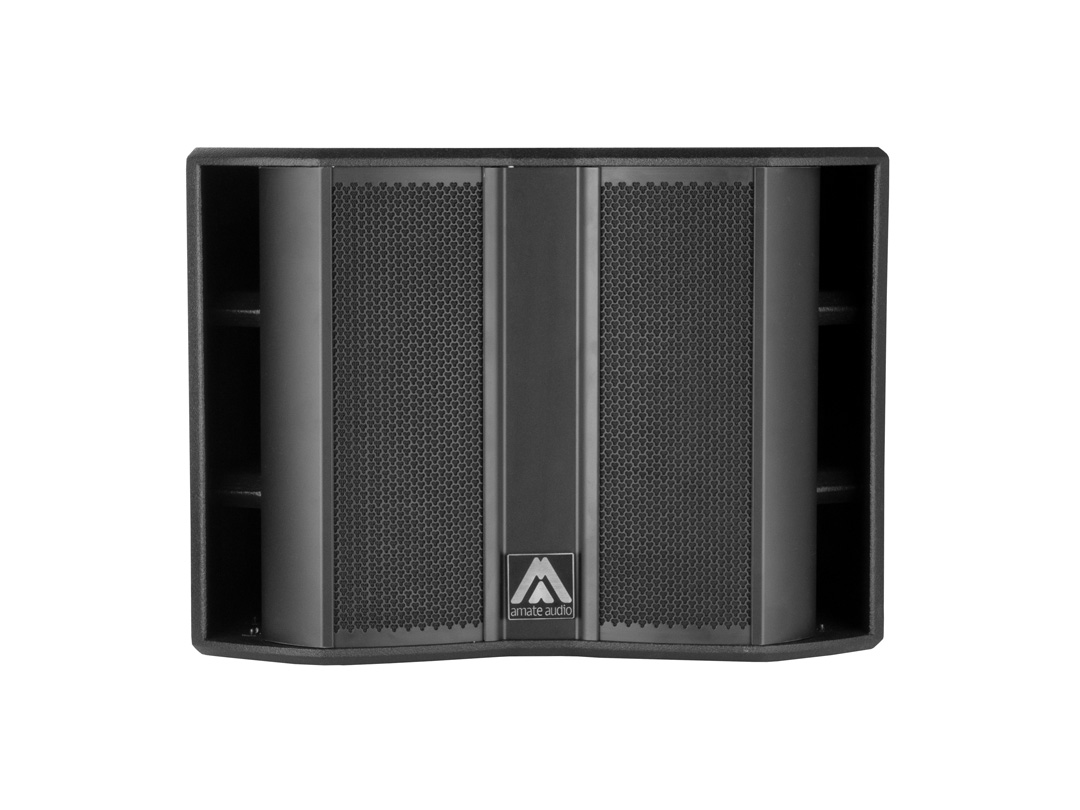

S15W
Bridging the gap between compact and powerful, the S15W combines the portability and ergonomy of the S12W with the extended low-frequency performance of the S18W.
Featuring a finely tuned 15” neodymium woofer, custom-developed exclusively for this enclosure, the S15W delivers impactful bass response with a frequency extension that strikes the perfect balance. Enhanced with the latest 64-bit FIR filtering DSP power and control electronics, it integrates seamlessly with other Nítid-S series systems, offering precision phase alignment and effortless usability through its intuitive touchscreen interface.
With its refined aesthetics, recessed carry handles, and high performance, the S15W sets a new standard in versatility for professional audio setups.
Light neodymium woofer
Integrated power & control with multiple presets
Integrated cardioid presets
M8 flying points| Amplifier program power | 2000 W - Class D |
|---|---|
| Input sensitivity | 2 dBu – 1V |
| Input impedance | 50 KΩ Balanced |
| Mains | Universal switch mode Power Supply 85-265 V / 45-65 Hz |
| Average current draw | 4.5 A (Heavy duty musical program) |
| SPL (1m) | 129 dB continuos , 132 dB peak |
| Built-in DSP | 64-bit processing unit. Includes factory presets. |
| Presets | S-ALIGNED / LPF80 / LPF90 / LPF100 / CARD S-ALIGNED / CARD80 / CARD90 / CARD100 |
| AD/DA converters | 24 bit – 48 kHz |
| Standby mode consumption | 4.8 W @230VAC |
| Adjustable delay line | 294 ms / 100 m |
| Crossover frequency | 80 Hz / 90 Hz / 100 Hz |
| Frequency response (-10 dB) | 35 Hz – 140 Hz (LPF100) |
| Components LF | 15″ woofer (4” voice coil) |
| Directivity (-6dB) | Omnidirectional |
| Weight | 39.7 kg |
| Dimensions (HxWxD) | 463 x 630 x 680 mm |
| Finish | Multilayer birch plywood with high resistant black Polyurea® coating |
| Grille | 2 mm powder coated steel with black acoustic mesh |
| Connectors | 1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link |
Protection Cover
NC-S15W - for S15W/S15WP
Trolley
TR-S15W - for S15W/S15WP
Telescopic Distance Rod
SP/CRTL - for S15W/S15WP
M8 Rigging Eyebolt
ACR-M8 - for S15W/S15WP
S15W
Bridging the gap between compact and powerful, the S15W combines the portability and ergonomy of the S12W with the extended low-frequency performance of the S18W.
Featuring a finely tuned 15” neodymium woofer, custom-developed exclusively for this enclosure, the S15W delivers impactful bass response with a frequency extension that strikes the perfect balance. Enhanced with the latest 64-bit FIR filtering DSP power and control electronics, it integrates seamlessly with other Nítid-S series systems, offering precision phase alignment and effortless usability through its intuitive touchscreen interface.
With its refined aesthetics, recessed carry handles, and high performance, the S15W sets a new standard in versatility for professional audio setups.
TOUCHSCREEN CONTROL Integrated DSP and Class D amplification
Amate Audio’s latest-generation DSP system management is fully integrated with 3rd-generation Class D amplification.
The color touchscreen enables intuitive operation and monitoring, with access to powerful presets engineered by Amate Audio’s R&D team to instantly configure Nítid loudspeakers for most common applications within seconds, prior to rigging or installation.
