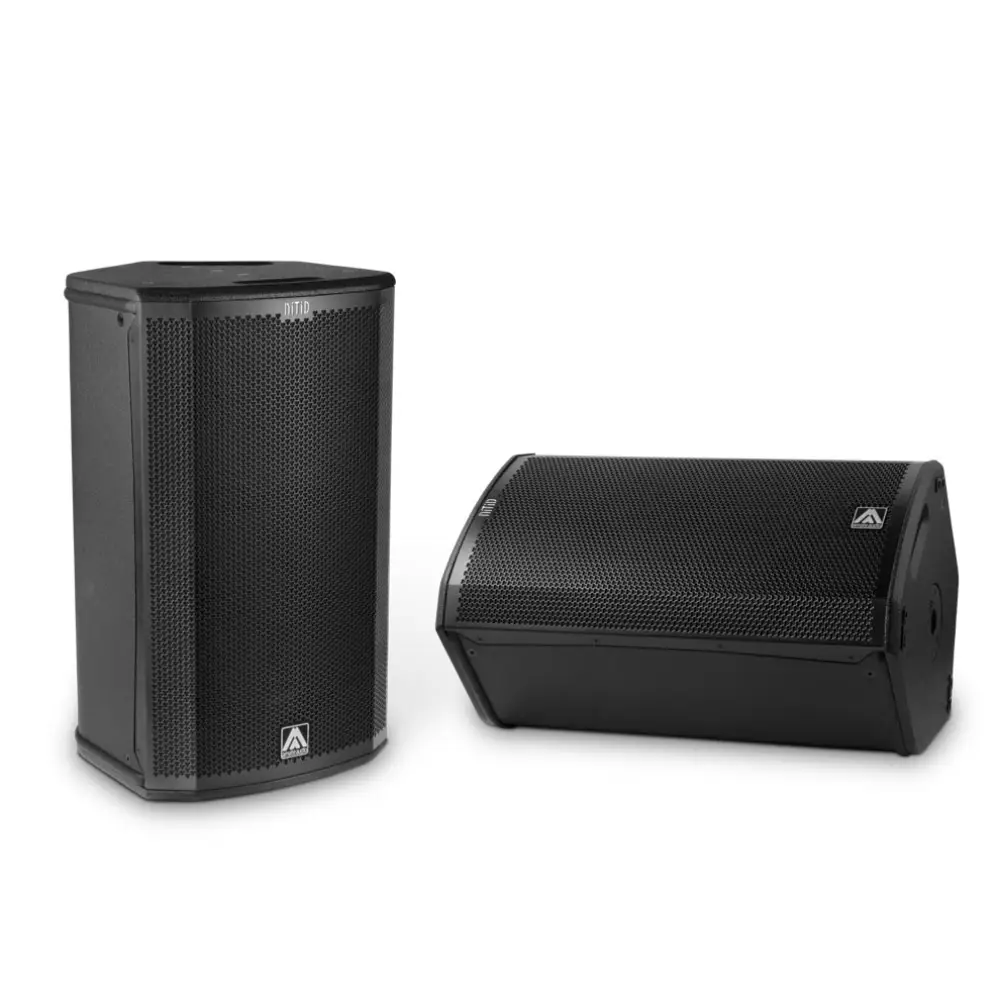

S12A7
Compact dual-purpose main PA and stage monitor system. Superb vocal articulation and crystal clear high frequencies in a 700 W cabinet give S12A7 an optimum balance in its class.
Versatile FoH PA & stage monitor system
Integrated power & control with multiple presets
High resistance Polyurea® finish
Easy rigging & installation accessories| Amplifier program power | 500 W (LF) + 200 W (HF) Class D Bi-amplified |
|---|---|
| Input sensitivity | 8 dBu – 1.94 V |
| Input impedance | 50 KΩ Balanced |
| Mains | Universal switch mode Power Supply 85-265 V / 45-65 Hz |
| Average current draw | 1.4 A (Heavy duty musical program) |
| SPL (1m) | 125 dB continuous, 128 dB peak |
| Built-in DSP | 64-bit processing unit. Includes factory presets. |
| Presets | FLAT / SPEECH / MONITOR / HPF90 |
| AD/DA converters | 24 bit – 48 kHz |
| Standby mode consumption | 3.7 W @230VAC |
| Adjustable delay line | 294 ms / 100 m |
| Frequency response (-10 dB) | 52 Hz – 19 kHz |
| LF – MF | 12″ neodymium woofer (2.5″ voice coil) |
| HF | 1.4″ polyester diaphragm compression driver |
| Directivity (-6dB) | 50º to 100º (H) x 55º (V) |
| Dimensions (HxWxD) | 623 x 363 x 398 mm |
| Weight | 18 kg |
| Finish | Multilayer baltic birch plywood with high resistant black Polyurea® coating and protective rubber profiles |
| Grille | 1.5mm powder coated steel with black acoustic mesh |
| Connectors | 1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link |
Flight Case
FC-S12 for 2 units of S12A7
Protection Cover
NC-S12 - for S12A7
Telescopic Distance Rod
SP/CRTL - for S12A7
M8 Rigging Eyebolt
ACR-M8 - for S12A7
S12A7
Compact dual-purpose main PA and stage monitor system. Superb vocal articulation and crystal clear high frequencies in a 700 W cabinet give S12A7 an optimum balance in its class.
TOUCHSCREEN CONTROL Integrated DSP and Class D amplification
Amate Audio’s latest-generation DSP system management is fully integrated with 3rd-generation Class D amplification.
The color touchscreen enables intuitive operation and monitoring, with access to powerful presets engineered by Amate Audio’s R&D team to instantly configure Nítid loudspeakers for most common applications within seconds, prior to rigging or installation.
