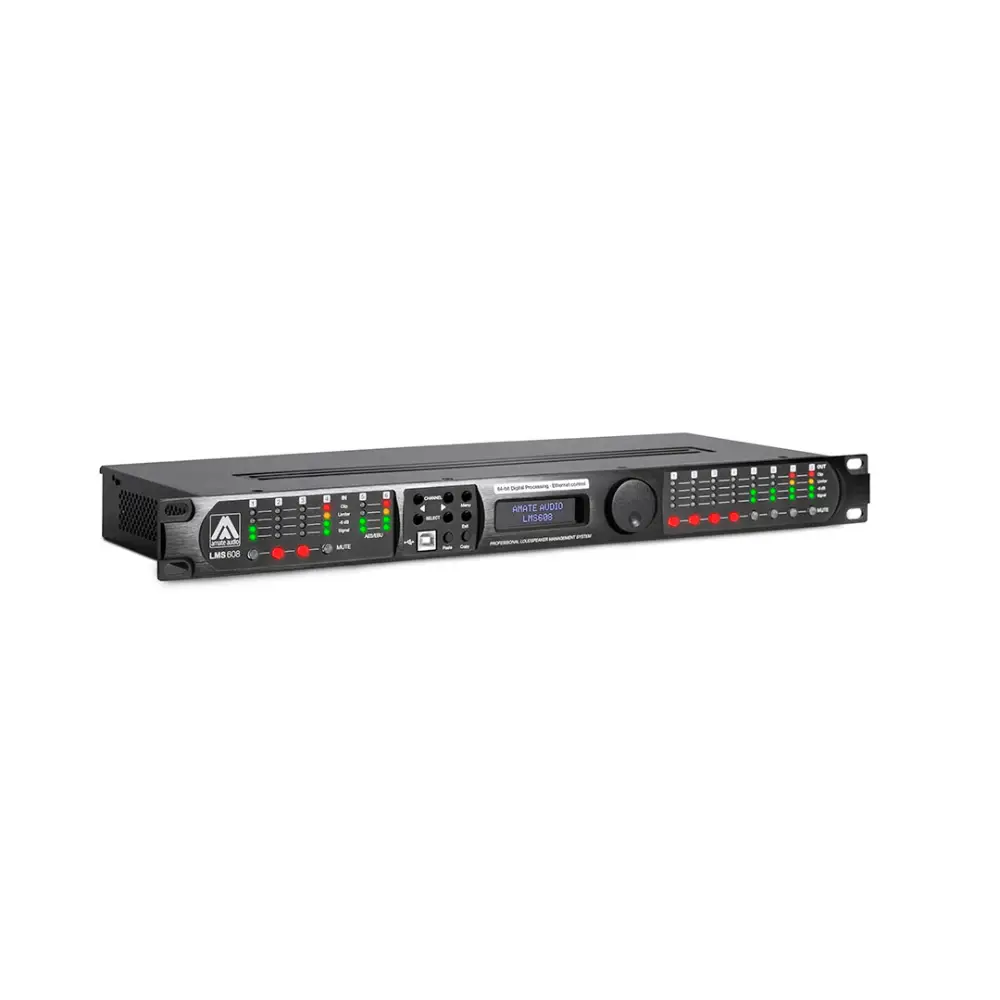

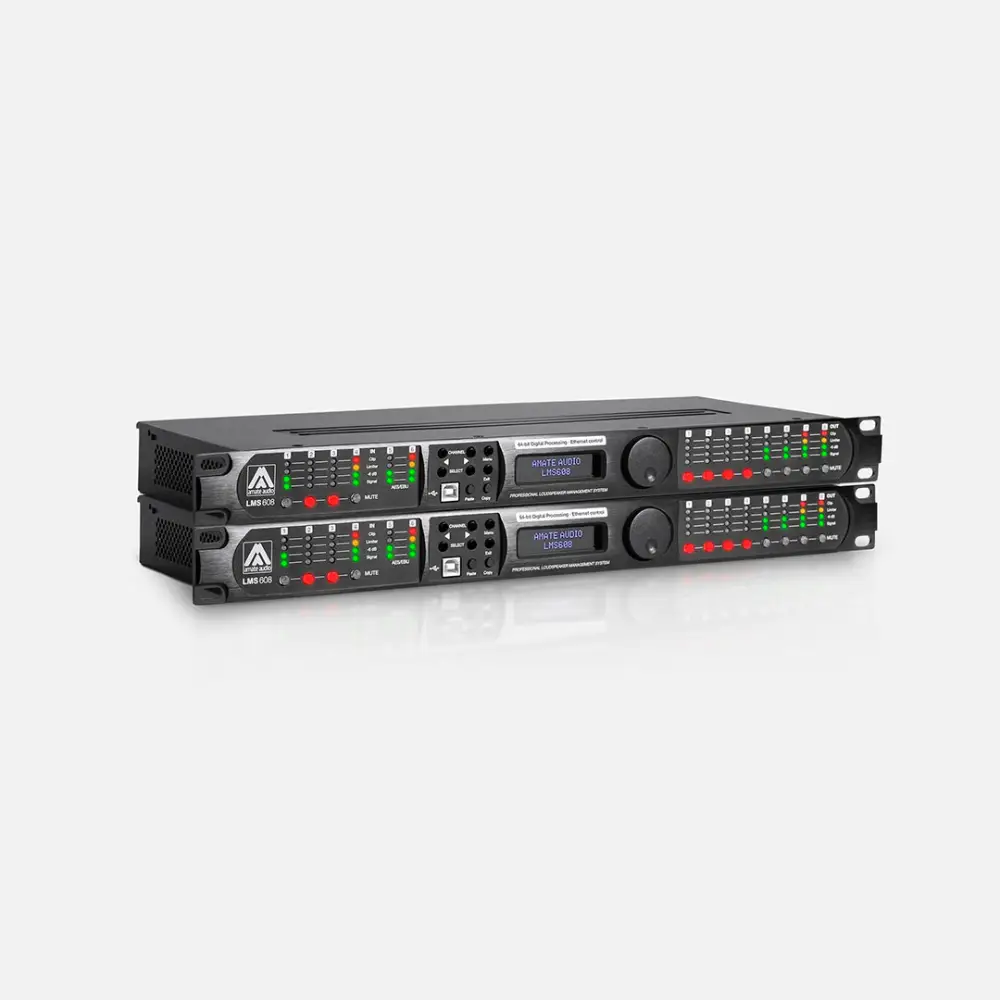

LMS608
LMS608’s powerful configuration capabilities enable rapid setup of complex and extensive touring, event and installed
Designed and proven to work uncompromisingly and continuously around the clock, it is the perfect complement to any audio installation involving passive systems. LMS processors include a wide range of factory presets for various configurations of Amate Audio passive loudspeaker systems.
| Inputs | 4 (XLR) + 2 AES/EBU (1x XLR) |
|---|---|
| Outputs | 8 (XLR) |
| Input Level (Nominal / Max) | 0 dBu / +24 dBu |
| Input Dynamic Range | > 116 dB(A) |
| Output Level (Nominal / Max) | 0 dBu / +12 dBu |
| Fequency Response | 20 Hz – 20 kHz (+/– 0.5 dB) |
| A/D Converters | 24–bit, 96 kHz |
| Latency | < 1 ms |
| Connectivity | USB & Ethernet |
| Mains | Universal switch mode Power Supply 90-264 V / 45-65 Hz |
| Dimensions (HxWxD) | 1U 19” Rack, 44 x 483 x 165 mm |
| Weight | 2.5 kg |
