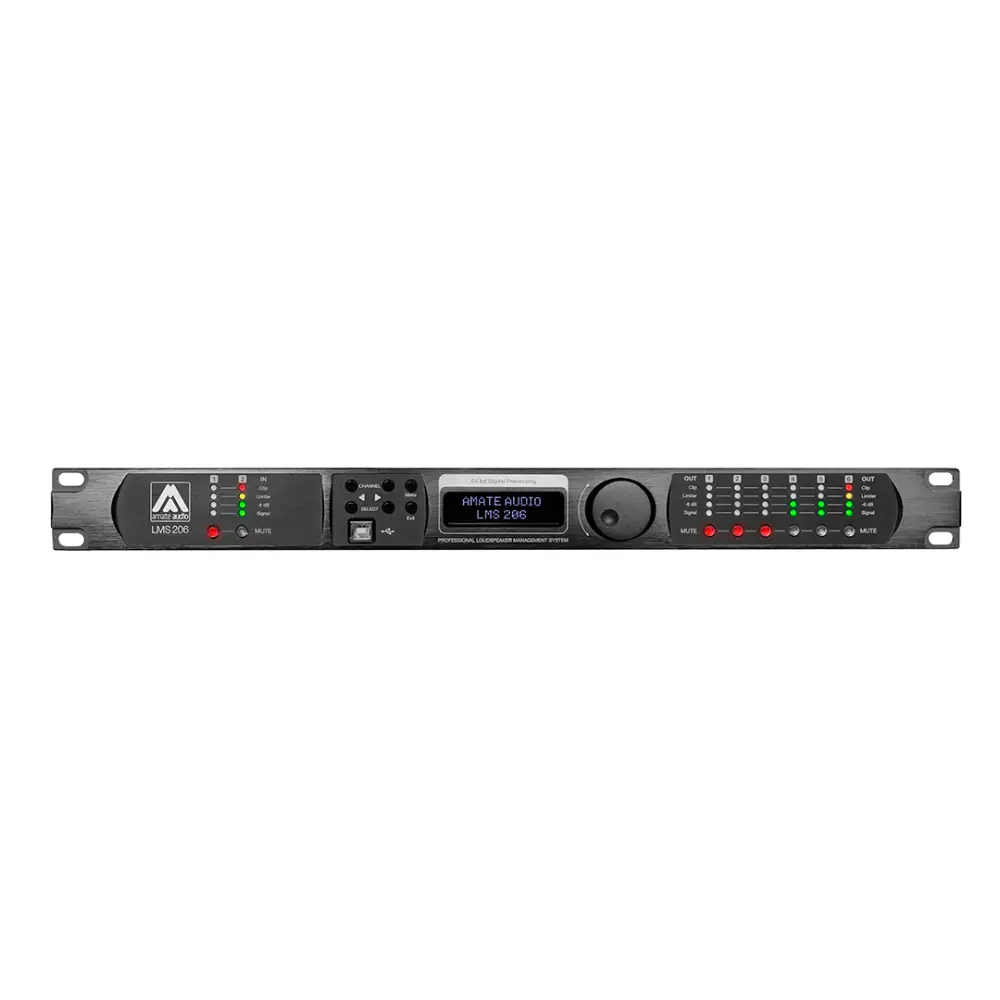

LMS206
Designed and proven to work uncompromisingly and continuously around the clock, it is the perfect complement to any audio installation involving passive systems.
LMS processors include all the factory presets for Amate Audio passive loudspeaker systems.
| Inputs | 2 (XLR) |
|---|---|
| Outputs | 6 (XLR) |
| Input Level (Nominal / Max) | 0 dBu / +23 dBu |
| Input Dynamic Range | 110 dB |
| Output Level (Nominal / Max) | 0 dBu / +12 dBu |
| Fequency Response | 20 Hz – 20 kHz (+/– 0.5 dB) |
| A/D Converters | 24–bit, 48 kHz |
| Latency | < 1.32 ms |
| Connectivity | USB |
| Mains | Universal switch mode Power Supply 90-264 V / 45-65 Hz |
| Dimensions (HxWxD) | 1U 19” Rack, 44 x 483 x 165 mm |
| Weight | 2.3 kg |
LMS206
Designed and proven to work uncompromisingly and continuously around the clock, it is the perfect complement to any audio installation involving passive systems.
LMS processors include all the factory presets for Amate Audio passive loudspeaker systems.
System Optimization Processor
Professional 2×6 loudspeaker management system designed for continuous 24/7 operation in demanding passive audio installations.
Factory-Tuned Presets
Includes all factory presets for Amate Audio passive loudspeaker systems, ensuring optimal crossover, EQ, and protection without complex setup.
High-Precision Audio Processing
24-bit / 48 kHz AD converters with 110 dB dynamic range deliver clean, accurate signal processing across the full audio spectrum.
Flexible Signal Routing
2 balanced XLR inputs and 6 balanced XLR outputs provide versatile routing options for multi-way passive PA systems.
Low-Latency Performance
Ultra-low system latency (<1.32 ms) ensures tight phase alignment and precise timing in live and installed sound applications.
Compact & Reliable Design
1U 19″ rack-mount chassis with universal power supply, lightweight construction, and USB connectivity for fast configuration and long-term reliability.
