GLOBE5PD

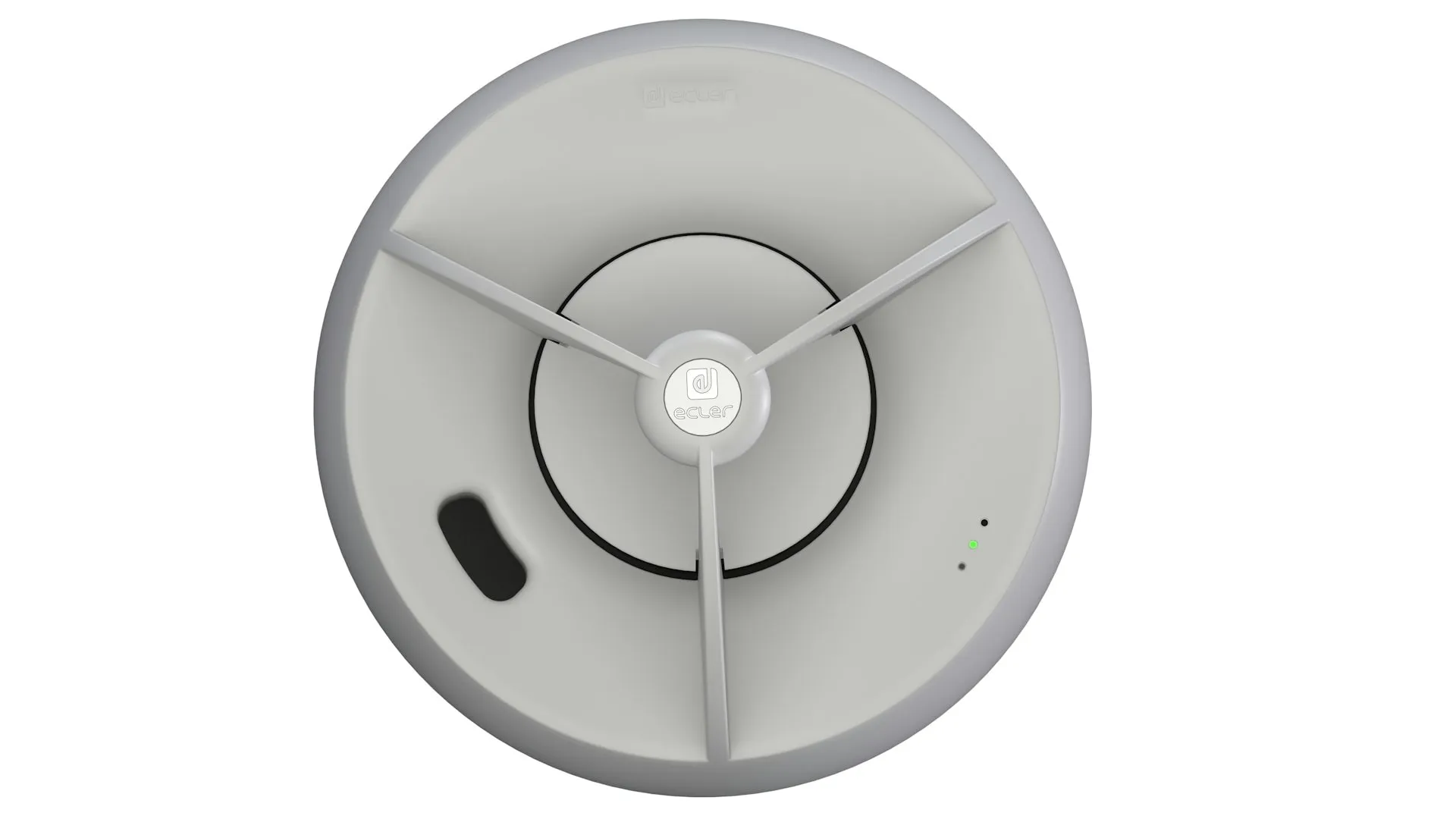

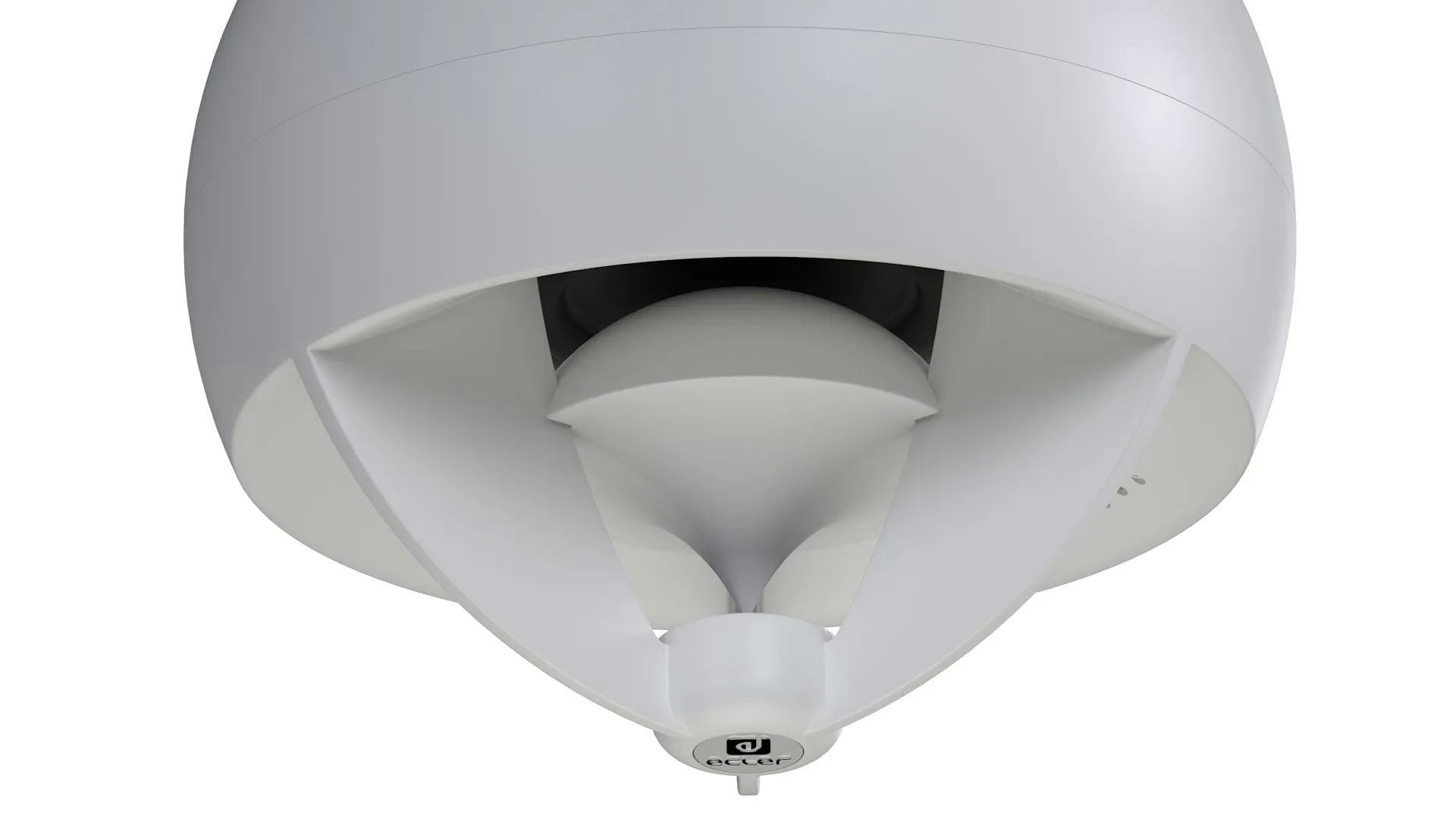

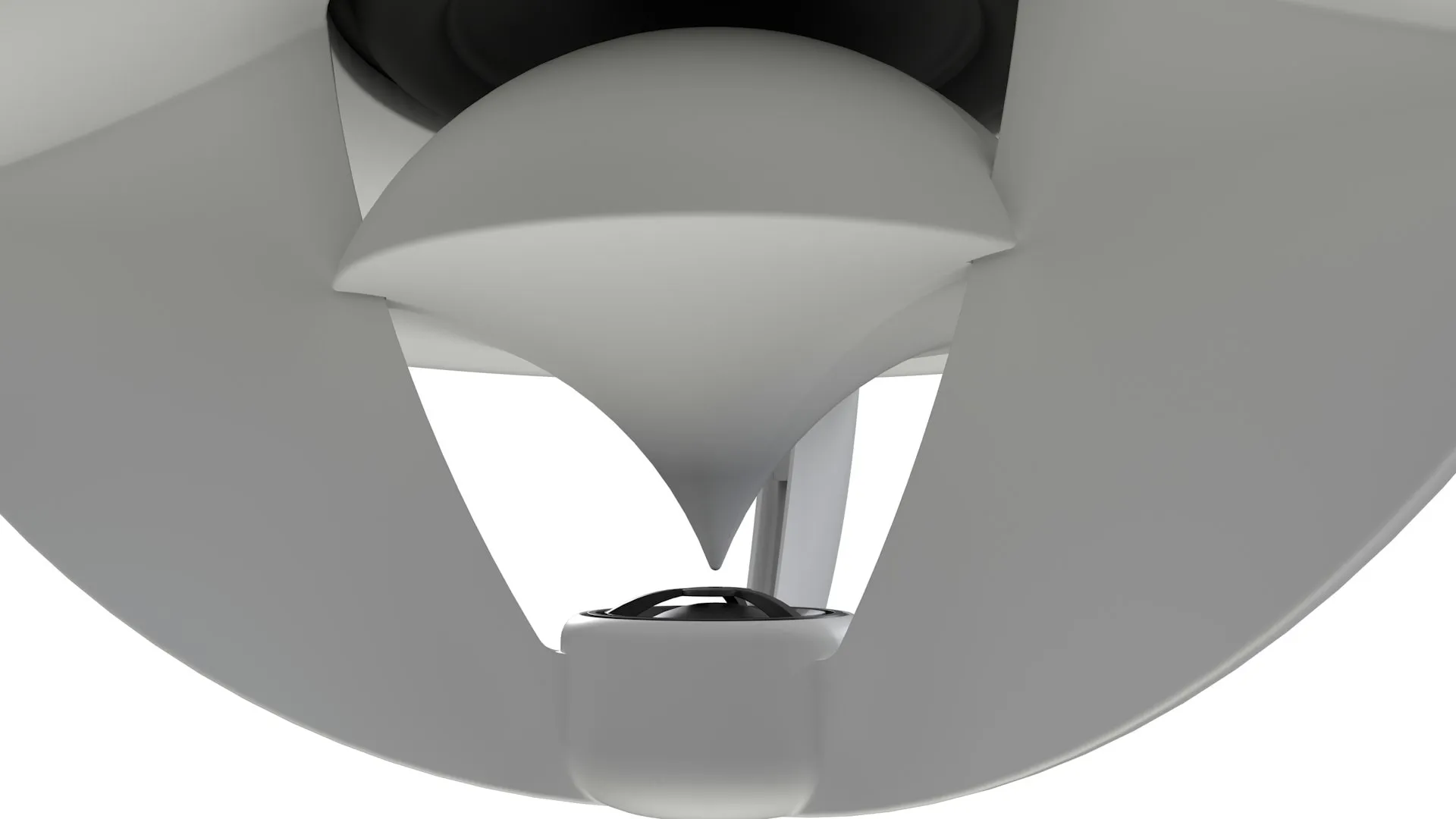

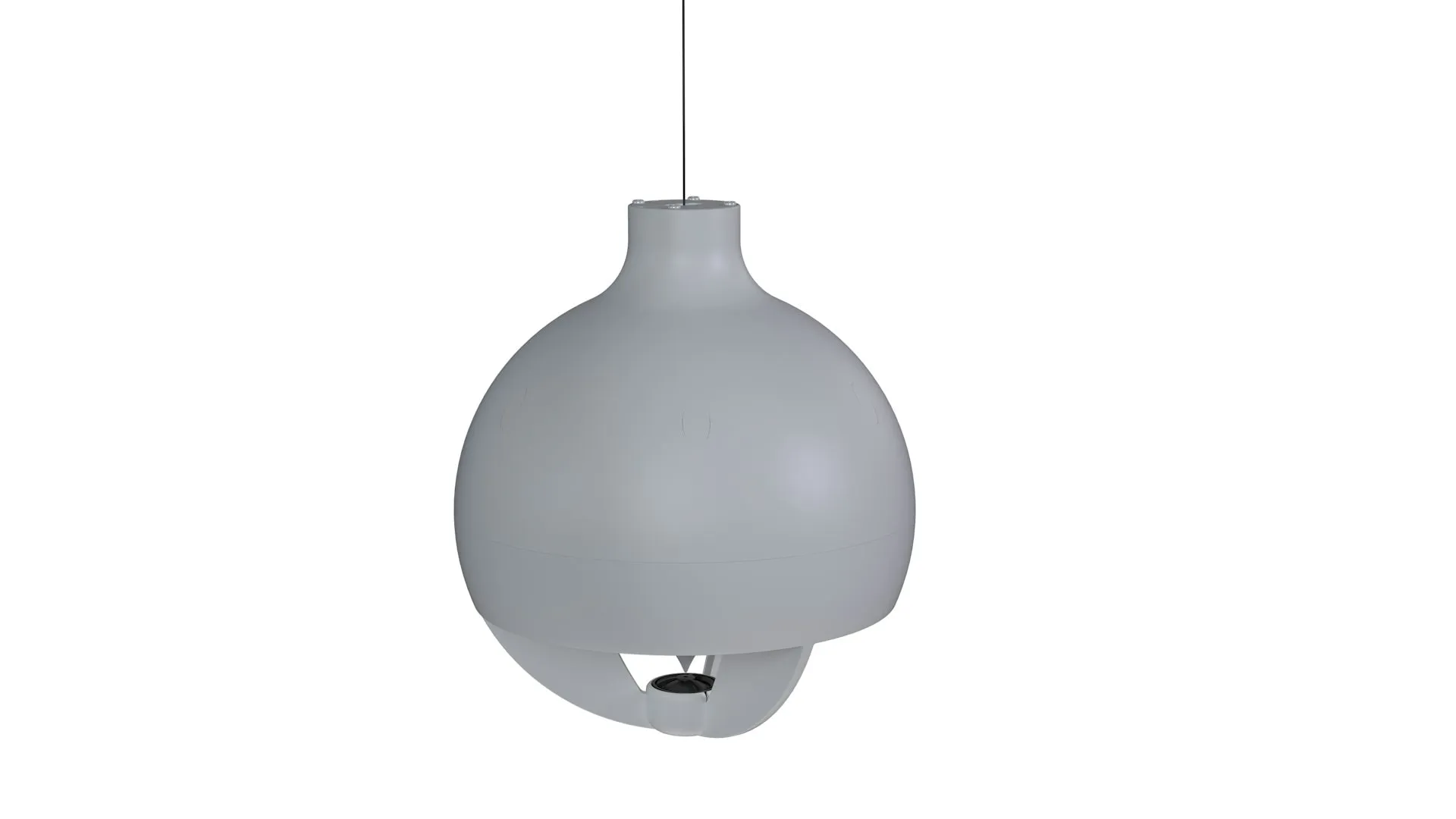

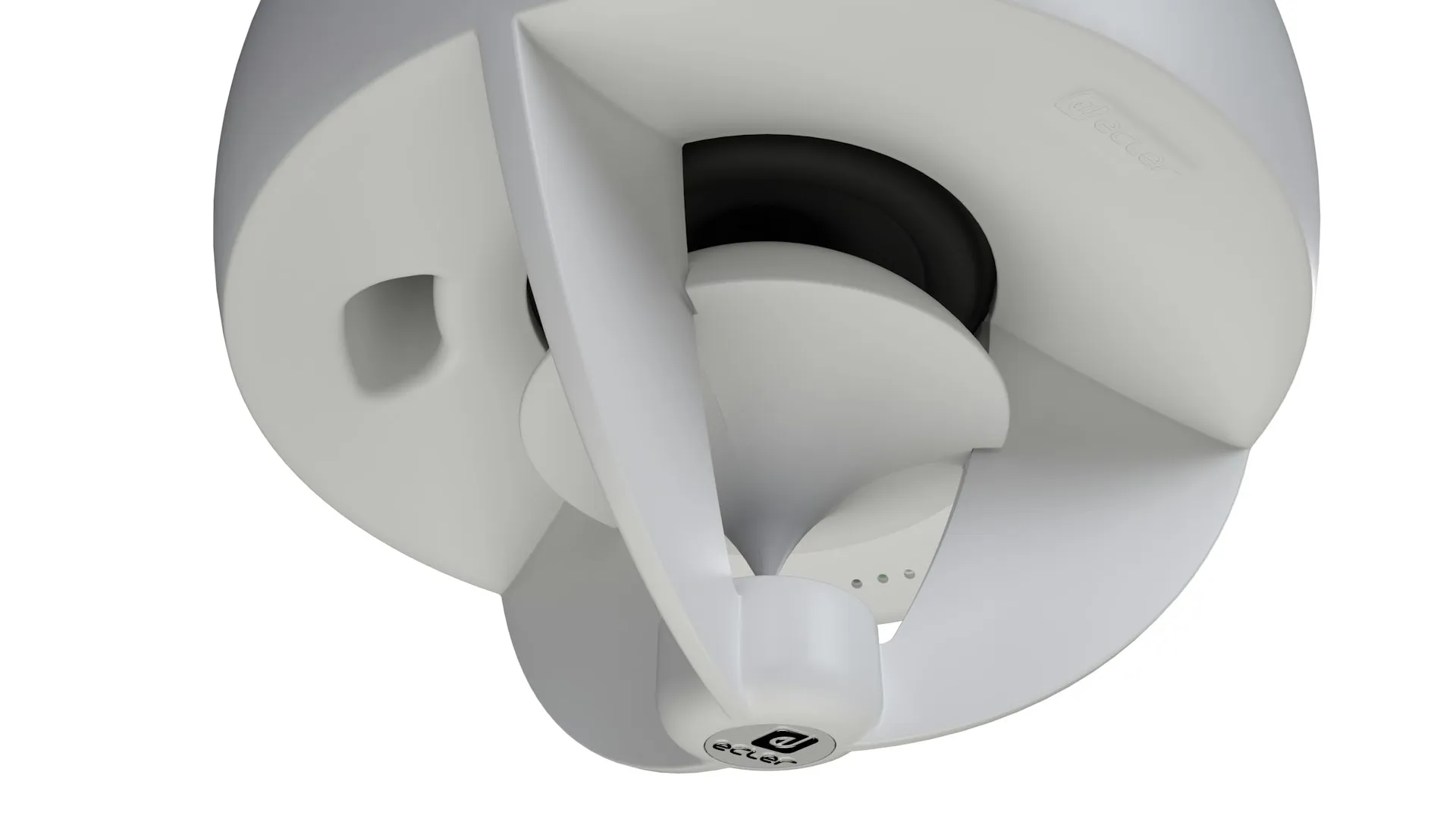

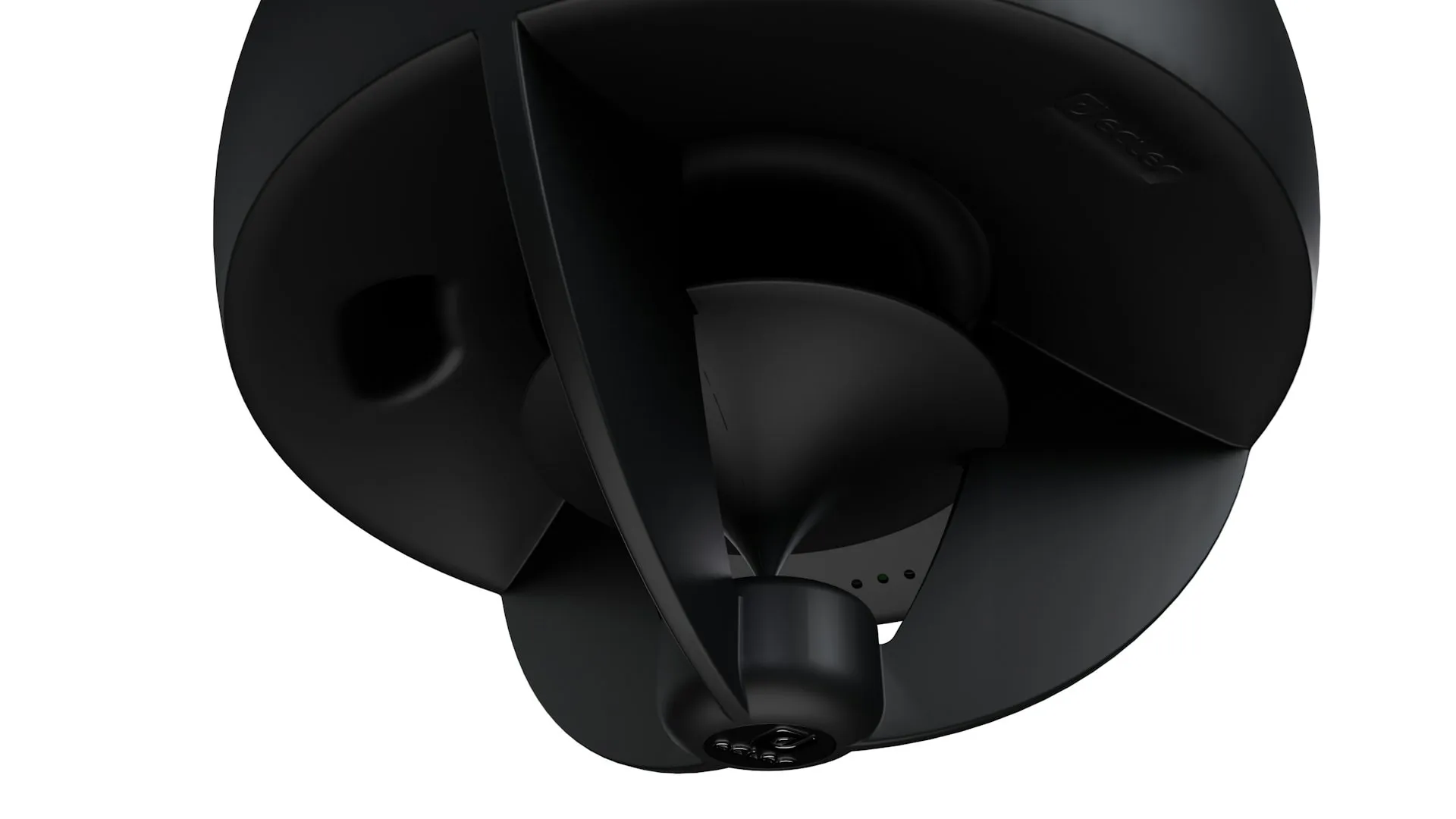

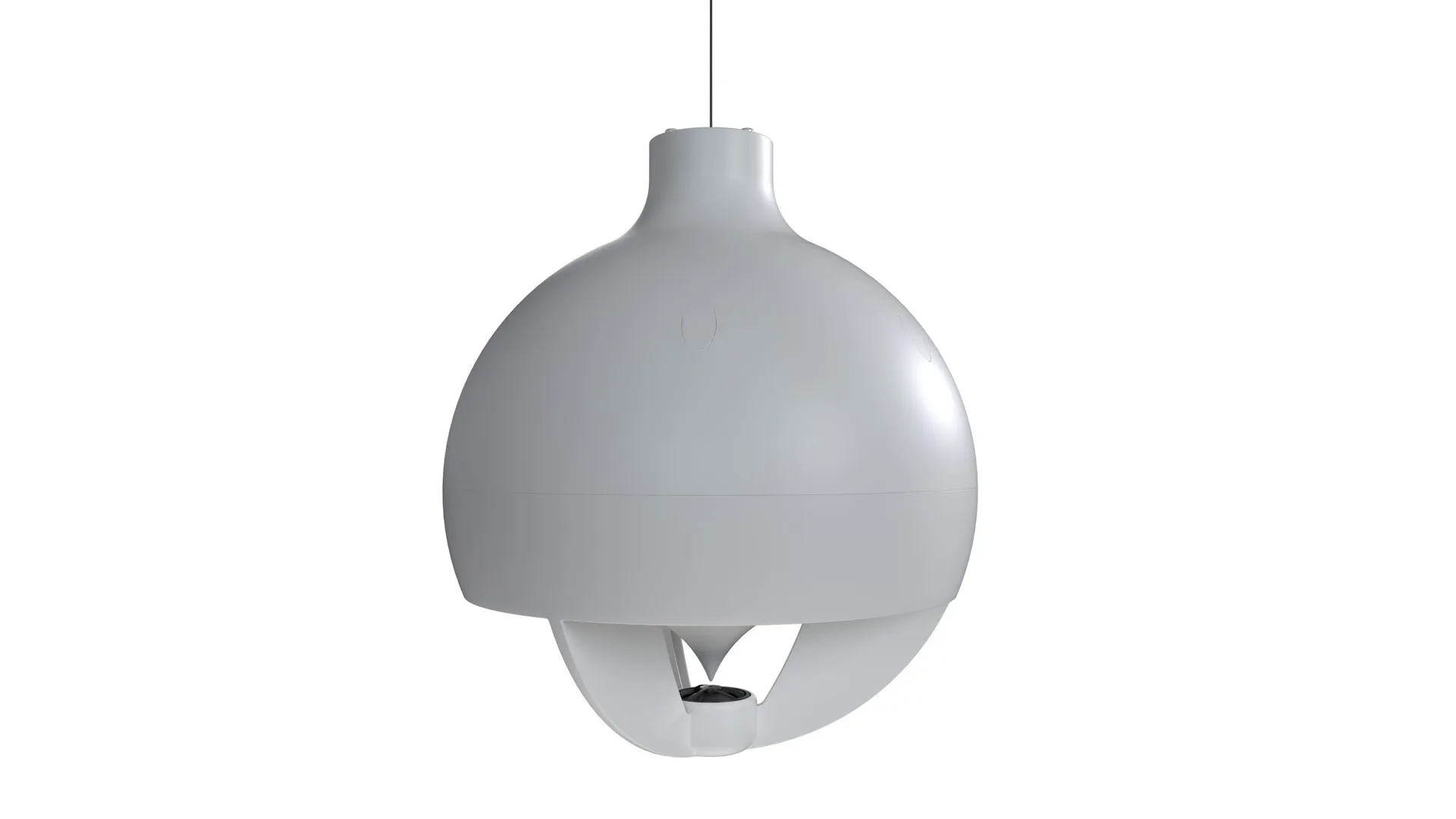

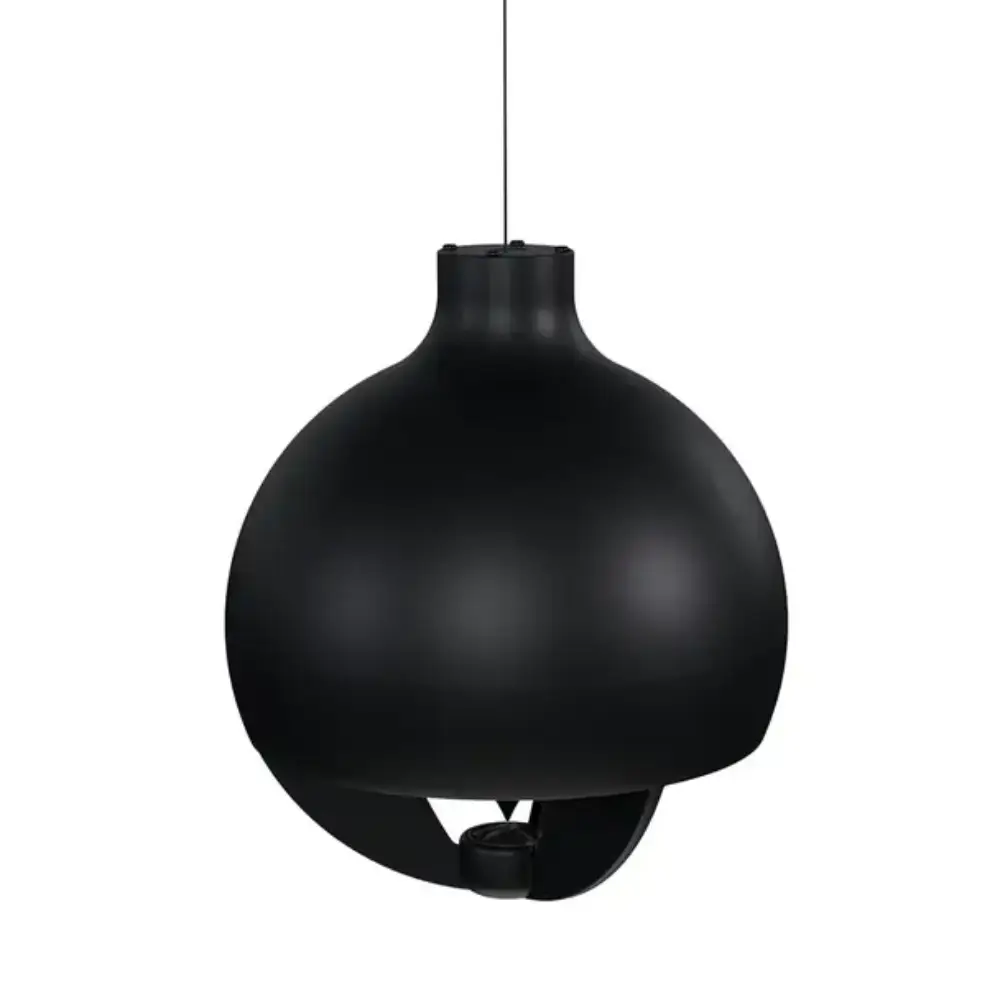

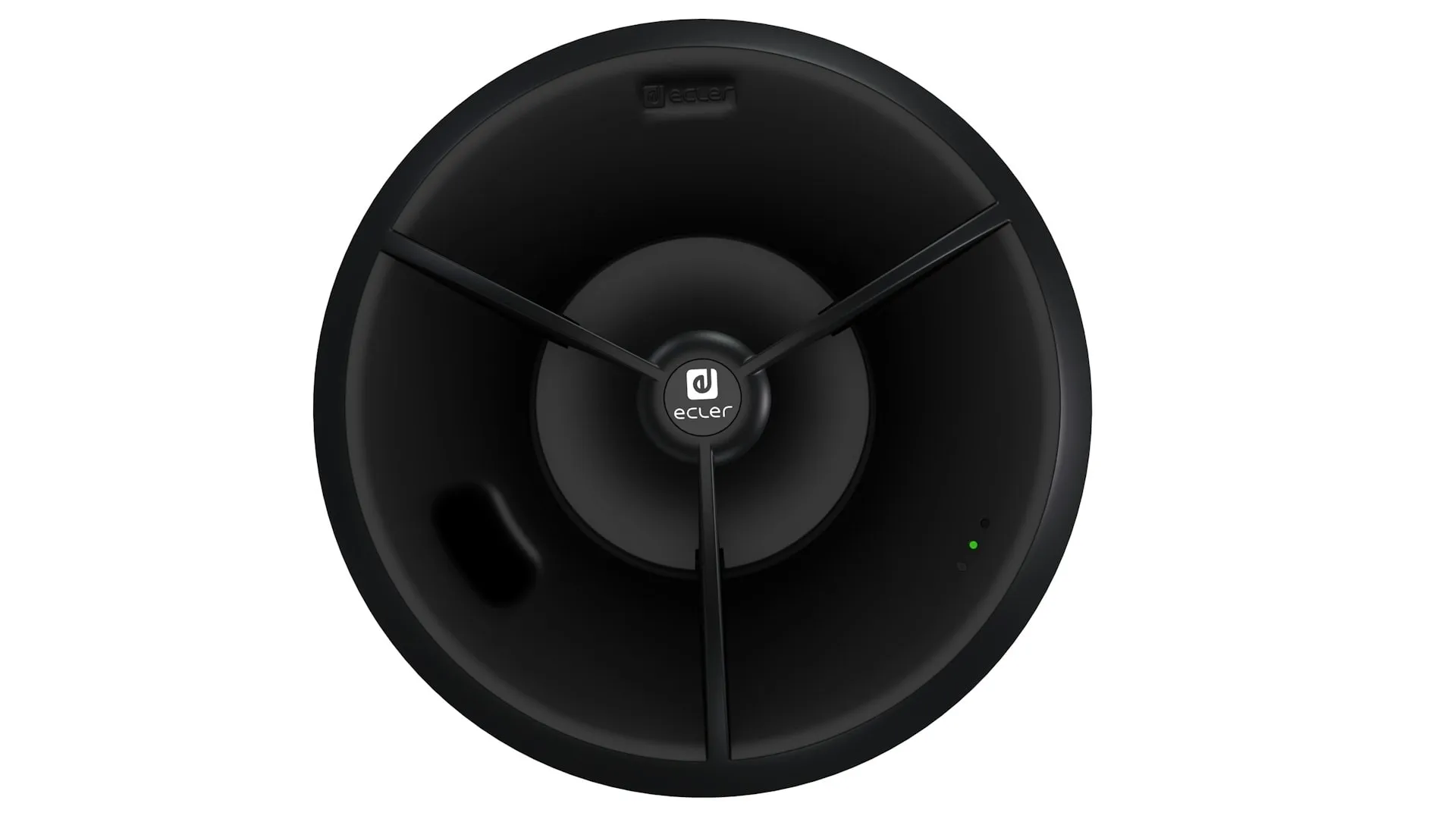

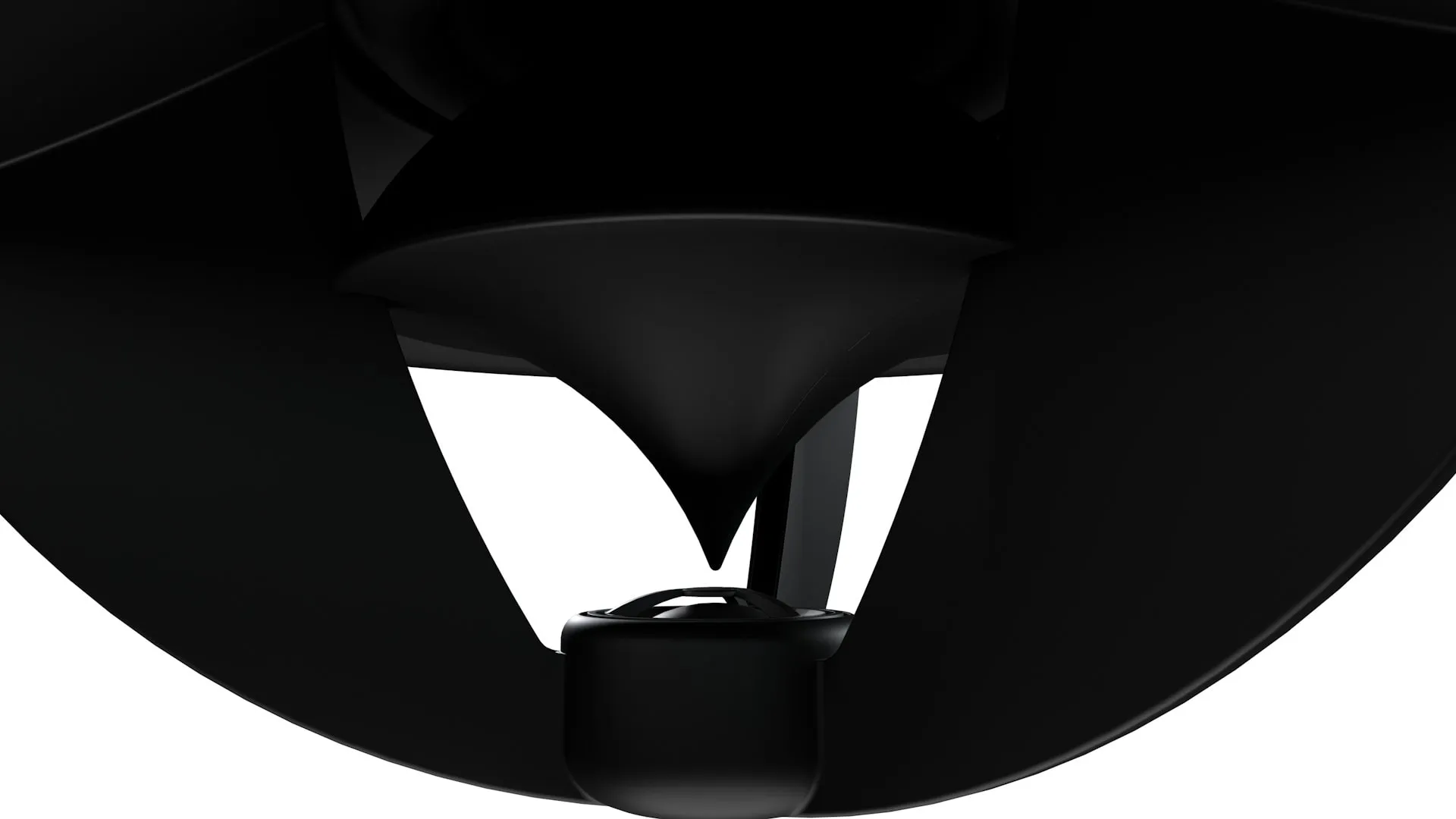

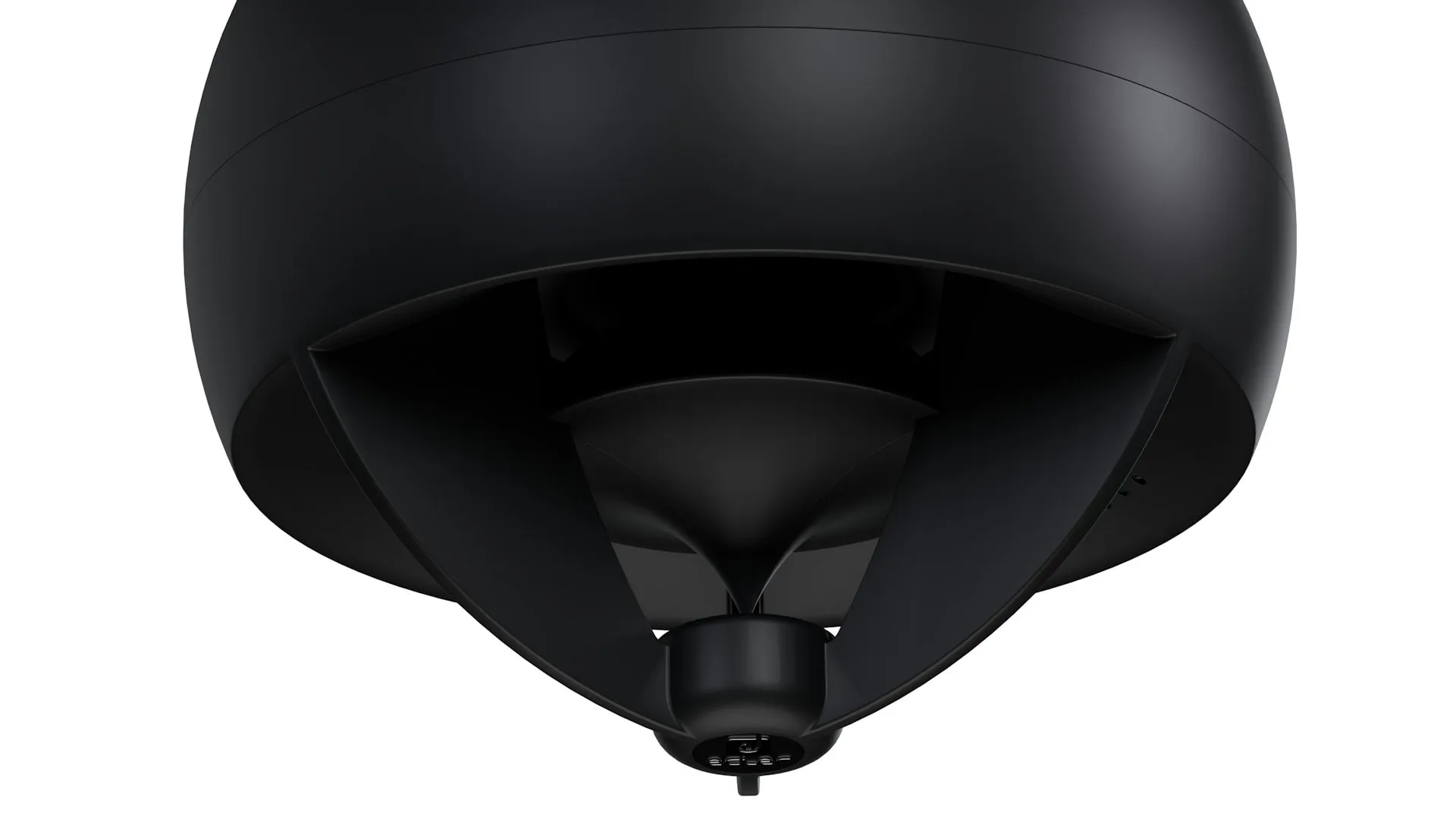

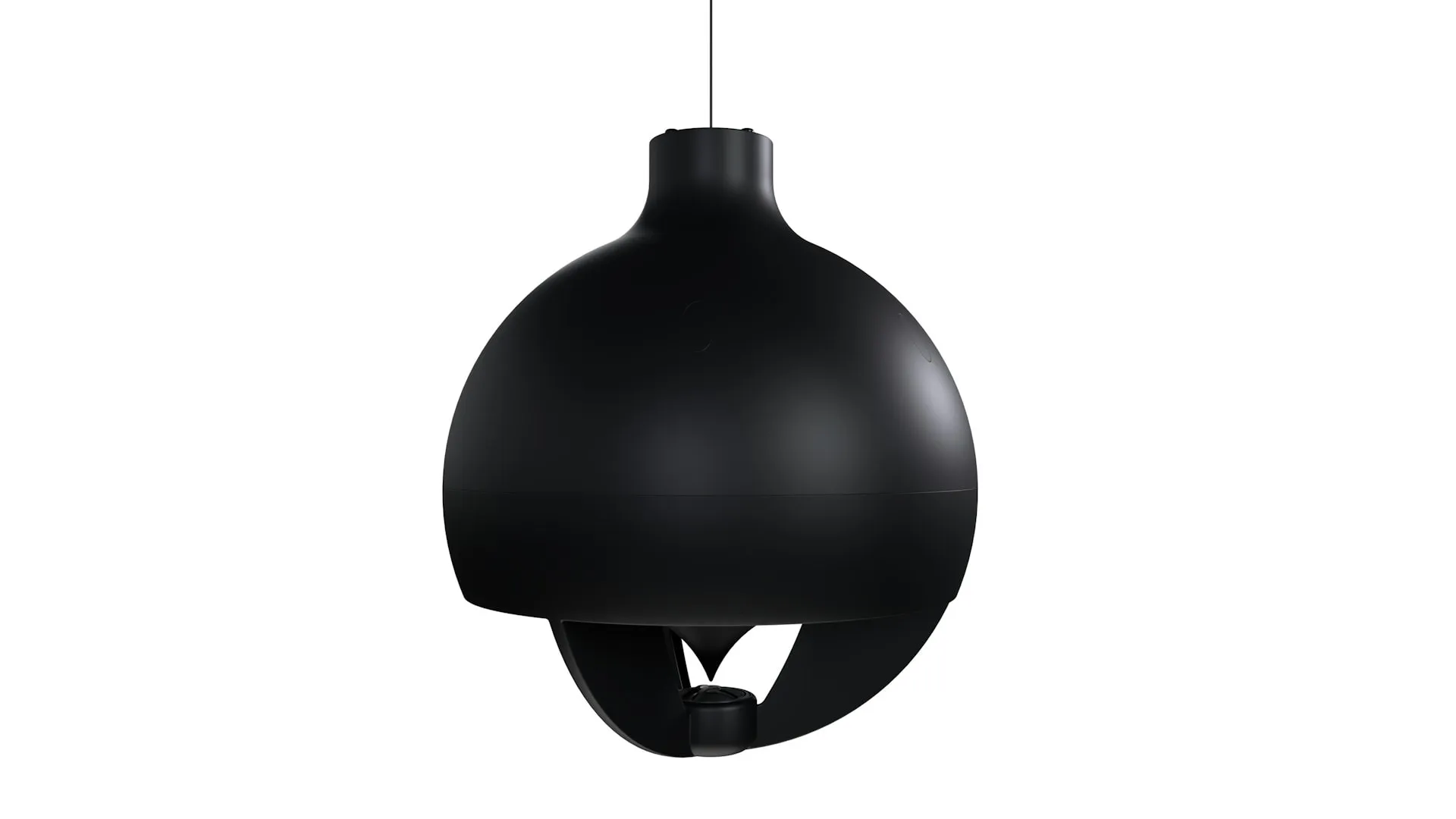

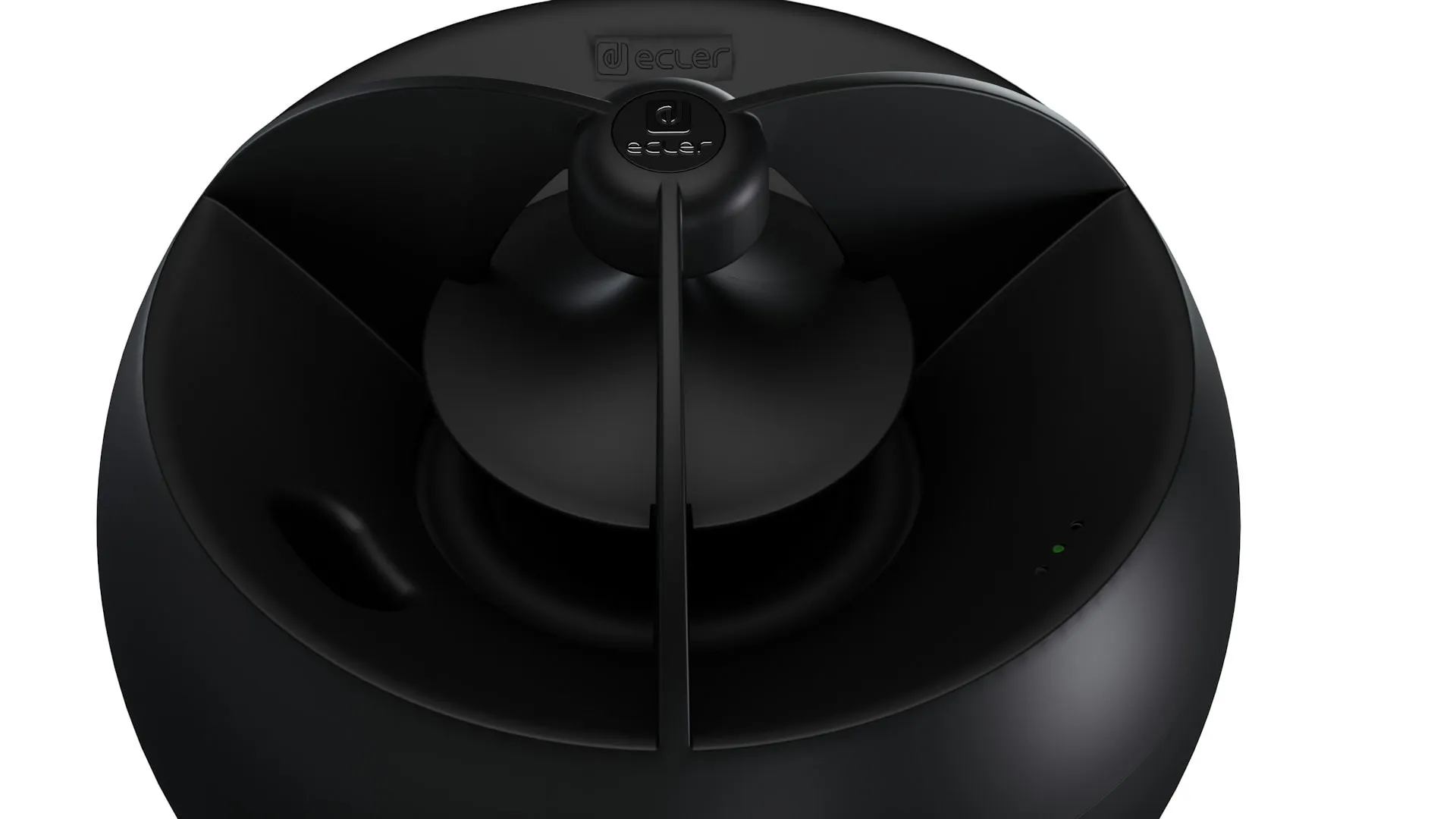

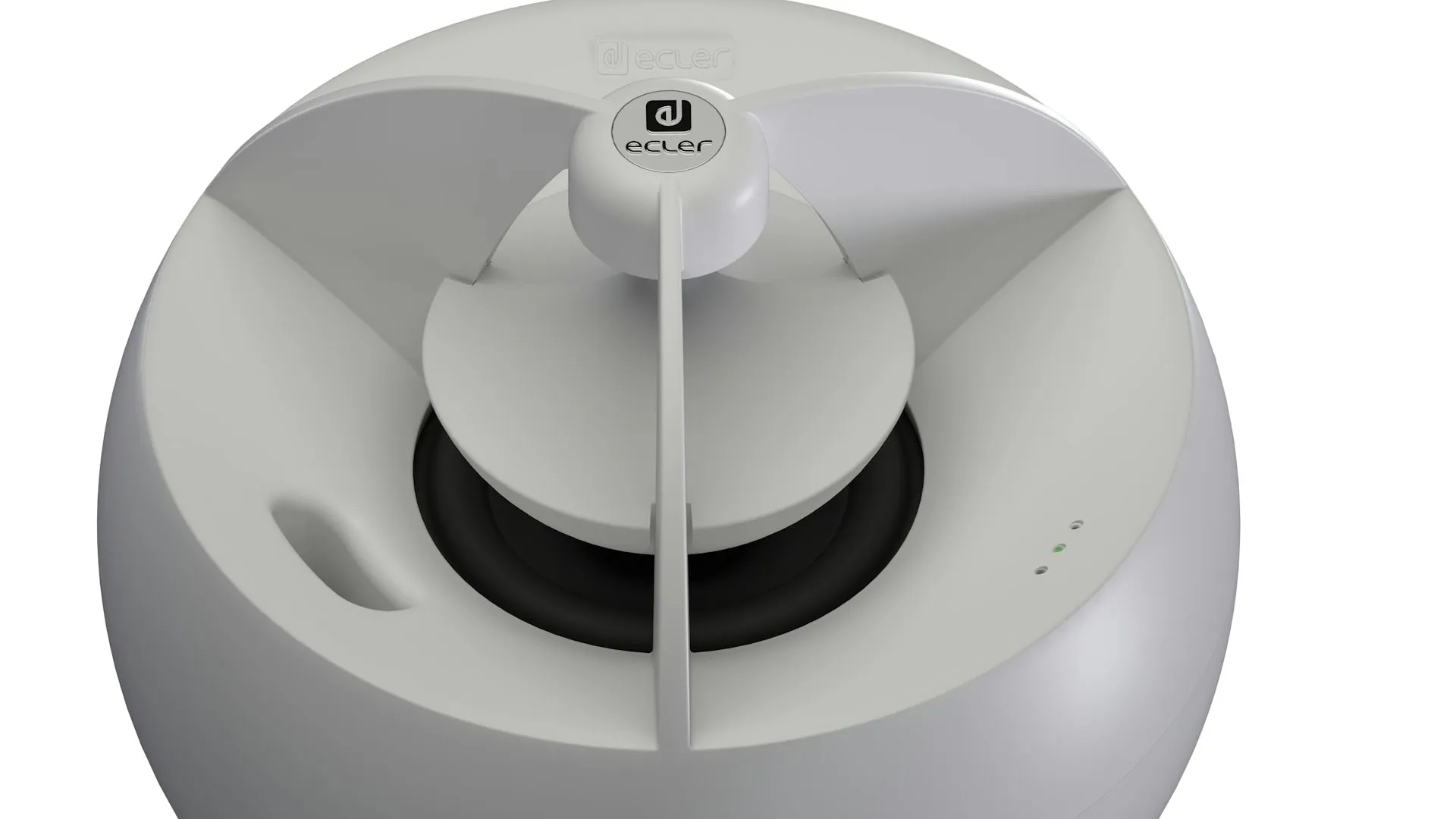

WiSpeak GLOBE is a 2-way self-powered sphere loudspeaker with wireless audio reception and control capabilities under the control of the Master unit. It includes a 5″ woofer and a 1″ silk dome tweeter. 360° horizontal dispersion. Available in two versions – with light-rail compatible installation system (RM) and pendant installation system (PD).
| Frequency band | 5.18~5.32GHz, 5.55~5.825GHz (supported worldwide) Up to 24 non-overlapping RF channels DFS support" |
|---|---|
| Coverage range | Up to 12m from a TX to any paired RX, direct line of sight |
| Audio channels | 1 mono audio ch received from the WiS TX network |
| Audio transmission | 24bit uncompressed, 48kHz SR |
| Digital Audio Sample size | 24bit |
| Digital Audio Sampling rate | 48kHz |
| Digital Audio Frequency Response | 20Hz – 20kHz (-0.1dB) |
| Digital Audio converters | DAC Resolution: 24 bit DAC Dynamic range: 100dB |
| Latency | From TX IN to RX AUX OUT <6ms From TX IN to RX Speaker <6ms Jitter among receivers ±1us |
| Pairing time | Up to 120s |
| Reconnection time | Up to 120s |
GLOBE5PD
WiSpeak GLOBE is a 2-way self-powered sphere loudspeaker with wireless audio reception and control capabilities under the control of the Master unit. It includes a 5″ woofer and a 1″ silk dome tweeter. 360° horizontal dispersion. Available in two versions – with light-rail compatible installation system (RM) and pendant installation system (PD).
