DAM614

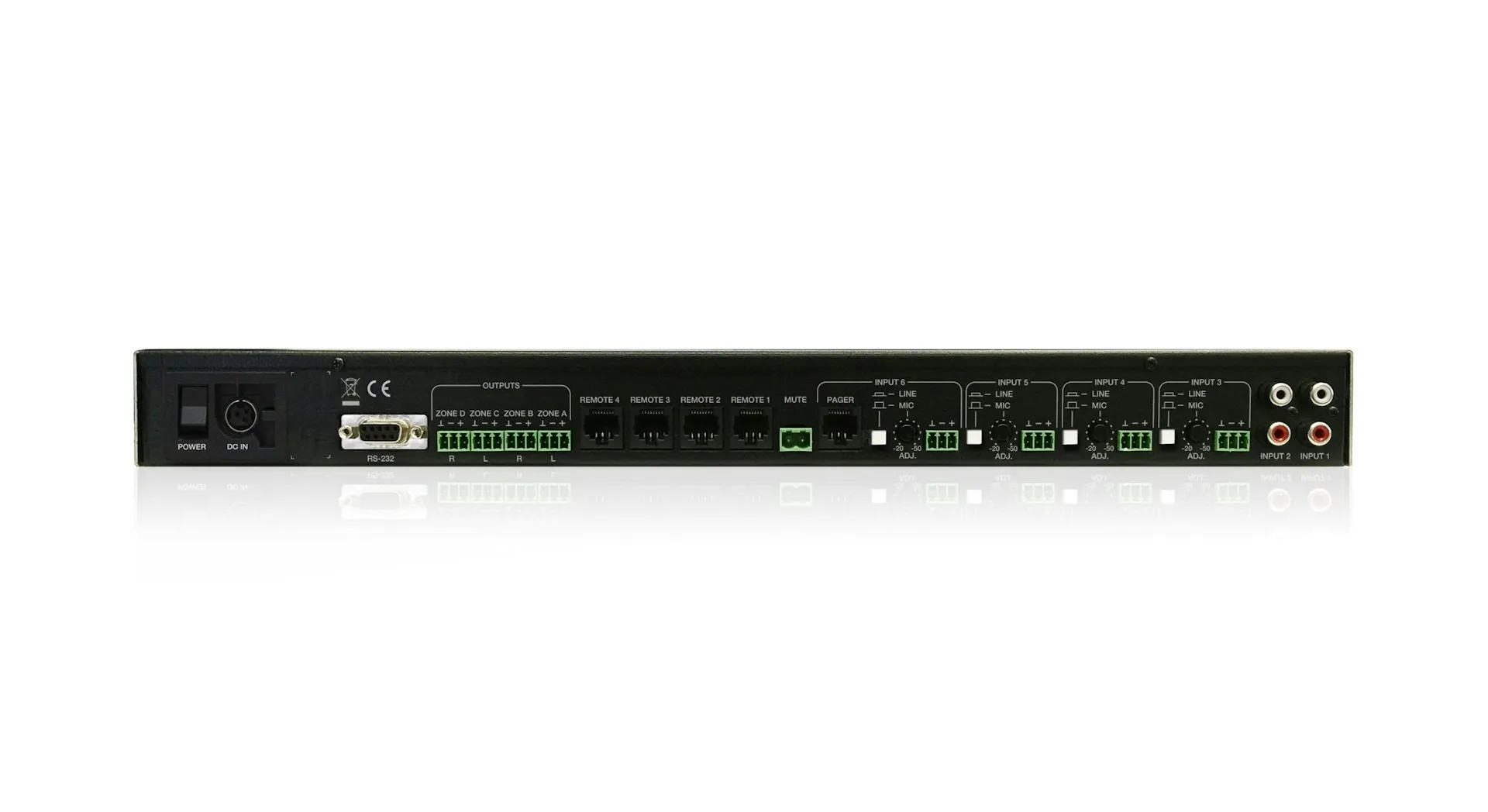

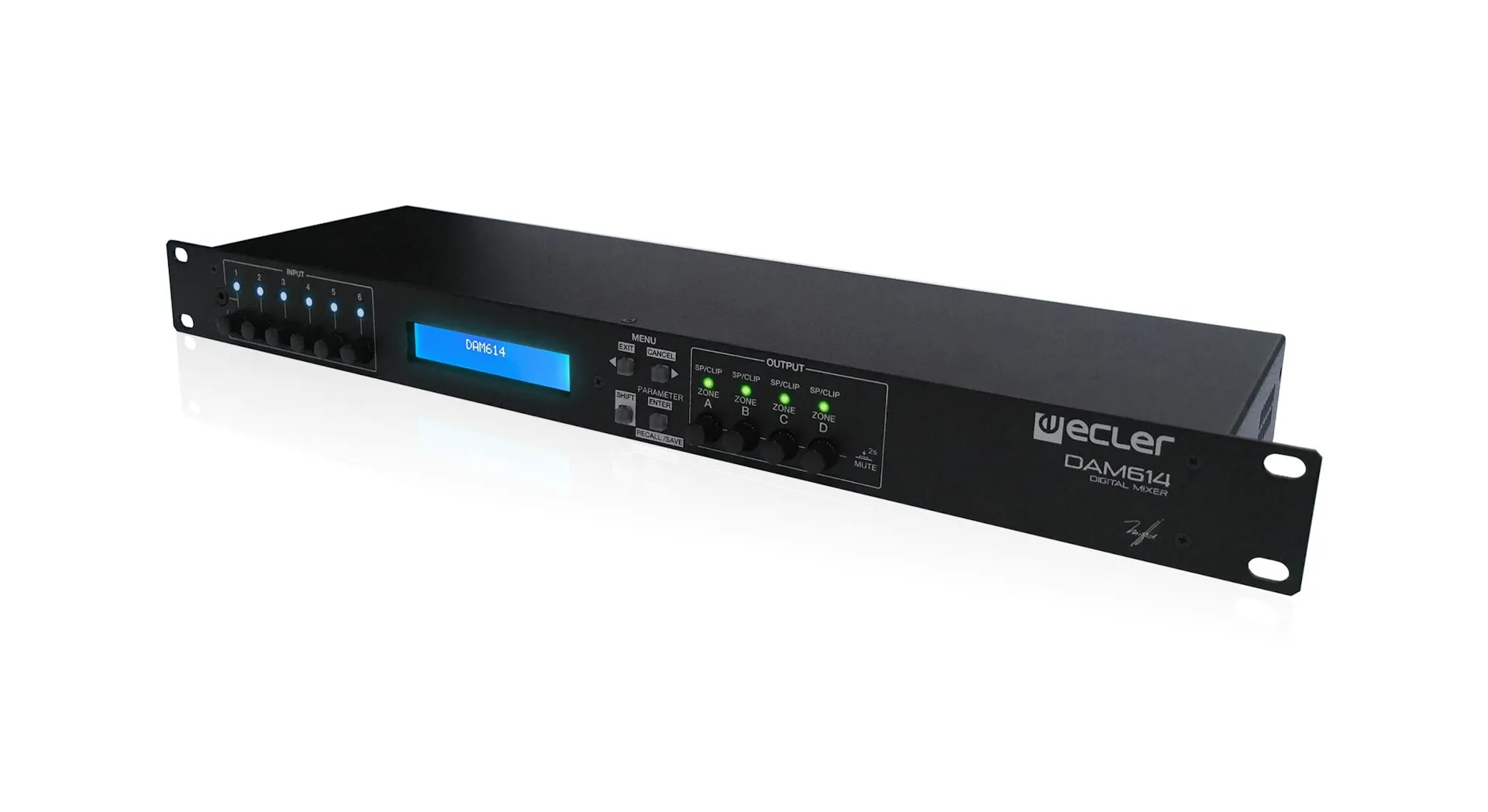

DAM614 is a fully programmable audio digital mixer. It includes 6 audio inputs and 4 audio outputs, front panel inputs and outputs level controls, DSP processing, RS-232 connectivity and 4 REMOTE control ports (0-10VDC). Its 4 outputs can be used as mono independent zones or coupled as stereo zones. Regarding inputs, the first 2 are stereo LINE inputs, and the 3rd, 4th, 5th and 6th ones are MIC/LINE ready (phantom available), being possible to use them independently (mono) or as stereo-coupled inputs.
| Processor | 24 bits 48kHz |
|---|---|
| Sampling rate | 48 kHz |
| Resolution | 24 bit |
| Frequency response | <10Hz ~ 20kHz (+0dB / -0.5dB) |
| Number of input ports | IN1-2, LINE IN3-6, MIC/LINE |
| Connection type | IN1-2: RCA female (minijack for duplicated IN1) IN3-6: Terminal block (symmetrical) |
| Input sensitivity | IN1-2: 0 / -6dBV Internal jumper adjust. 0dBV factory default IN3-6: -20 / -50dBV External potentiometer adjust |
| Input impedance | IN1-2: >13kΩ IN3-6: >24k electronically balanced |
| CMRR | IN3-6: >55dB (20Hz ÷ 20kHz) |
| Phantom power | IN3-6: +17,5 VDC (Internal jumper) |
