CUBE

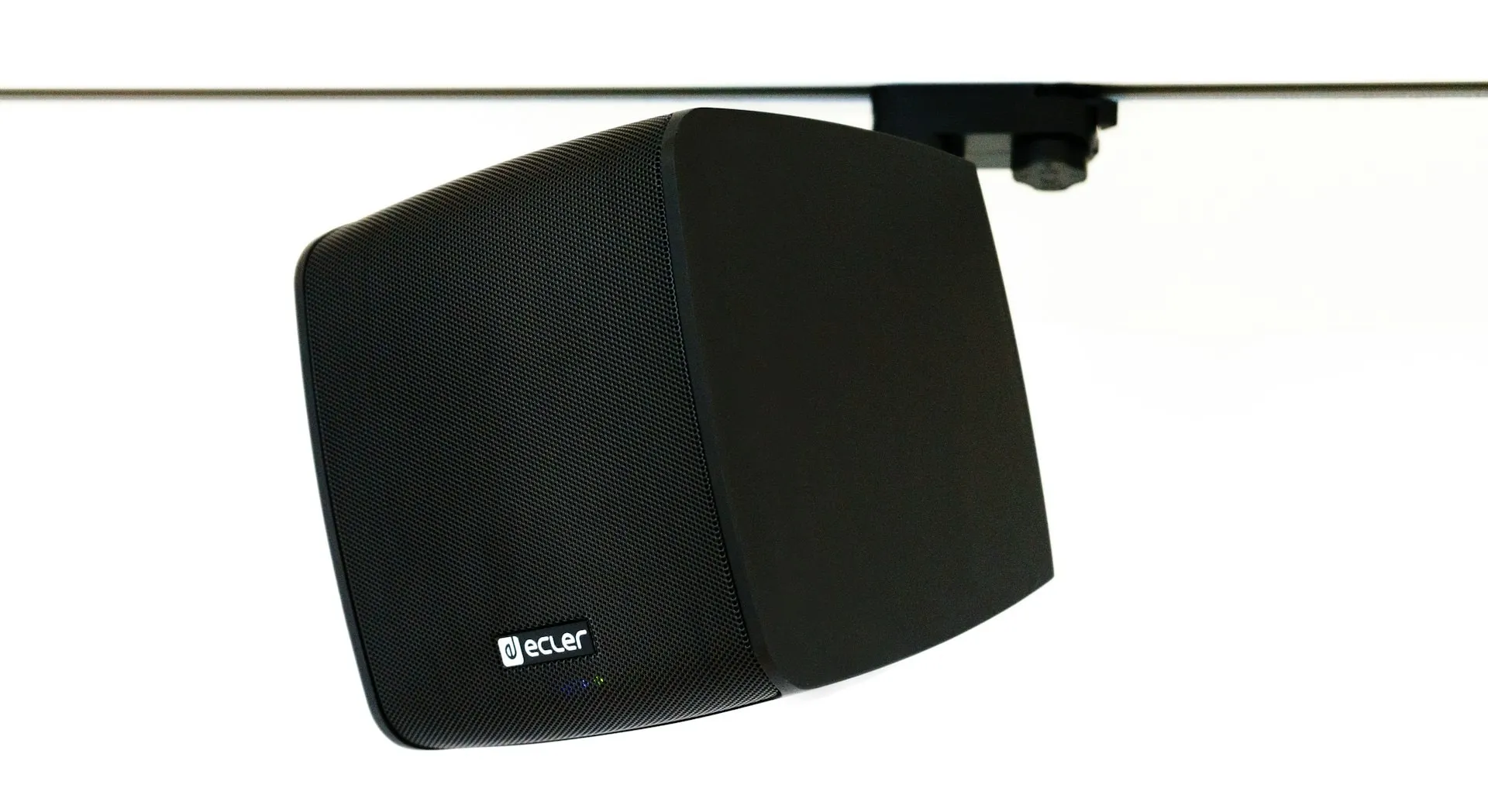

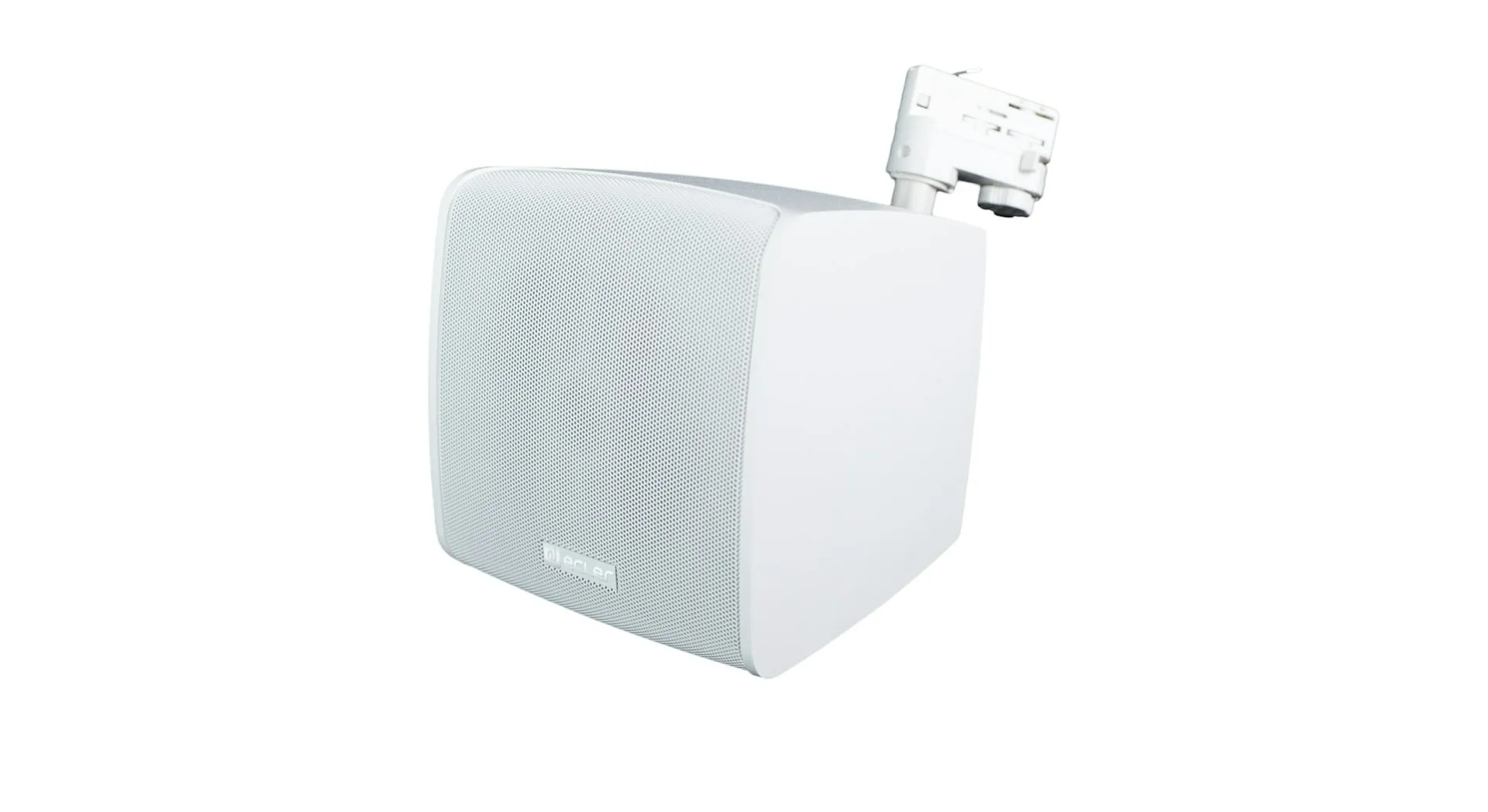

WiSpeak CUBE is a self-powered 5″ loudspeaker cabinet with wireless audio reception and control capabilities under the control of the Master unit, featuring an installation system which is compatible with ceiling light rails. Alternatively, wall mount or desktop installation is as well possible by means of the included accessories.
| Frequency band | 5.18~5.32GHz, 5.55~5.825GHz (supported worldwide) Up to 24 non-overlapping RF channels DFS support |
|---|---|
| Coverage range | Up to 12m from a TX to any paired RX, direct line of sight |
| Audio channels | WiSpeak CH1 / CH2 |
| Audio transmission | 24bit uncompressed, 48kHz SR |
| Digital Audio Sample size | 24 bits |
| Digital Audio Sampling rate | 48 kHz |
| Digital Audio Frequency Response | 20Hz – 20kHz (-0.1dB) |
| Digital Audio converters | DAC Resolution: 24 bit DAC Dynaimic range: 100dB |
| Latency | From TX IN to RX AUX OUT <6ms From TX IN to RX Speaker <6ms Jitter among receivers ±1us |
| Pairing time | Up to 120s |
| Reconnection time | Up to 120s |
CUBE
WiSpeak CUBE is a self-powered 5″ loudspeaker cabinet with wireless audio reception and control capabilities under the control of the Master unit, featuring an installation system which is compatible with ceiling light rails. Alternatively, wall mount or desktop installation is as well possible by means of the included accessories.
