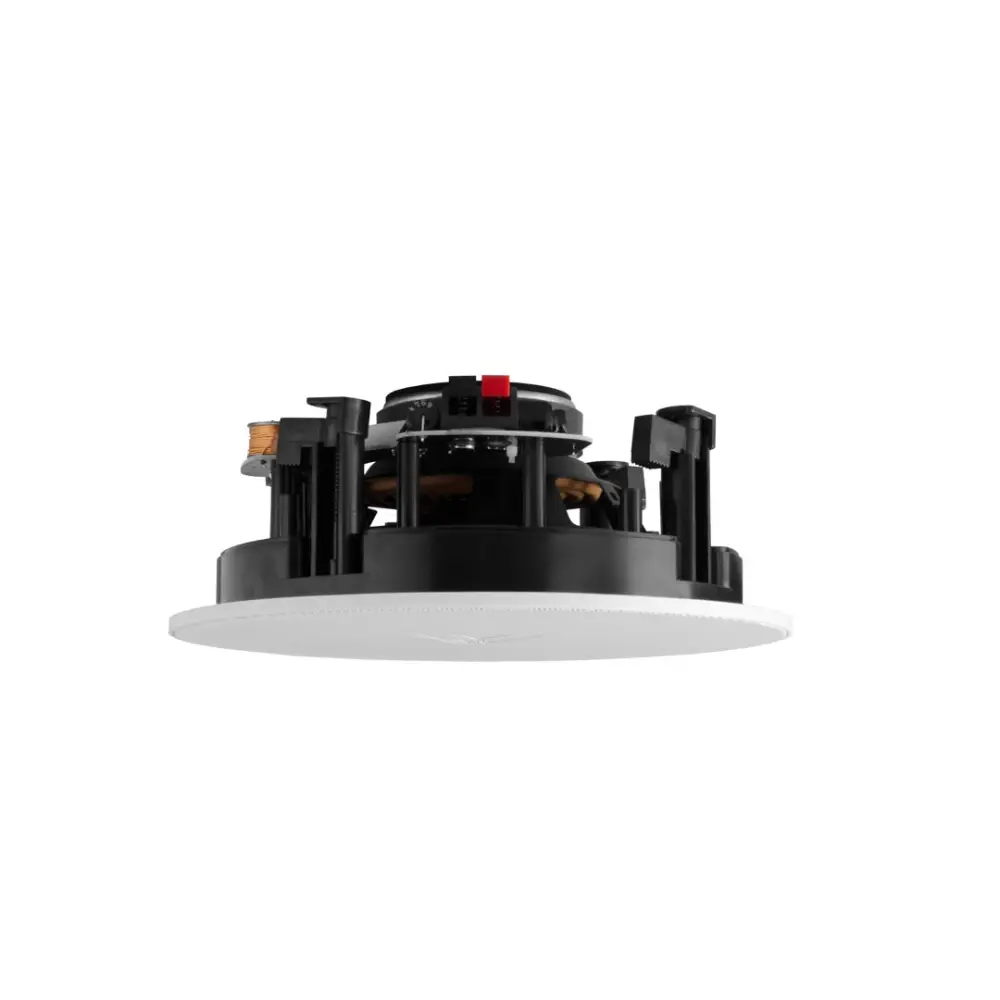

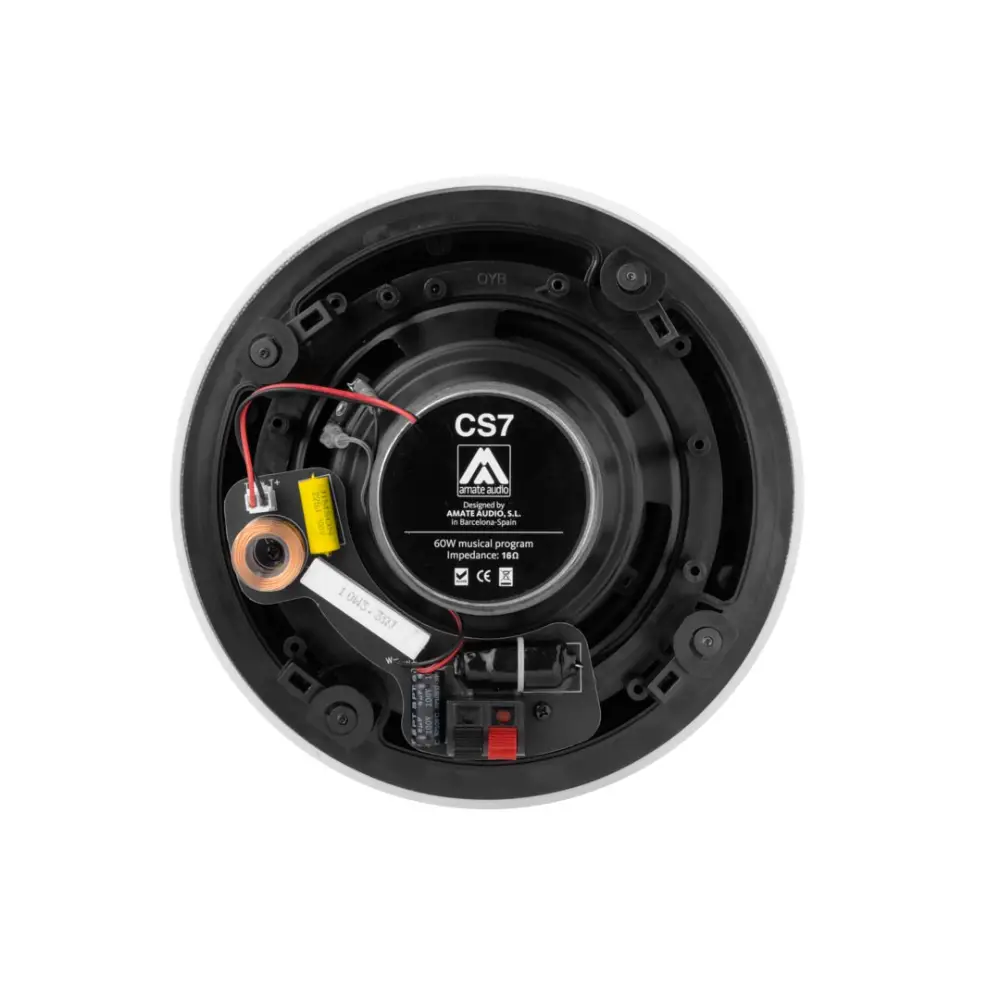

CS7
The CS7 is a compact and easy to install solution, delivering excellent performance and reliability for the most demanding applications.
Its optimised frequency response allows clear communication, while the stylish design, including a new magnetic grille, lends itself to discreet integration with any decor.
| Program Power | 60 W (direct) 100 V Line 5W / 10W / 20W / 40W (with TF-100) |
|---|---|
| Impedance | 16 Ω (direct) 100V Line 2 kΩ / 1 kΩ / 500Ω / 250Ω (with TF-100) |
| SPL (1W/1m) | 91 dB |
| Maximum SPL (continuous/1m) | 109 dB |
| Frequency Response (-10 dB) | 60 Hz – 20 kHz |
| LF | 6.5" coaxial woofer (1" voice coil) |
| HF | 1" titanium diaphragm neodymium tweeter |
| Weight | 1.4 kg |
| Finish | Technical ABS |
| Dimensions (ØExt / ØInt / D) | 238 mm / 203 mm / 96 mm |
| Grille | Aluminium / Magnetic |
| Connectors | Pushing Terminals |

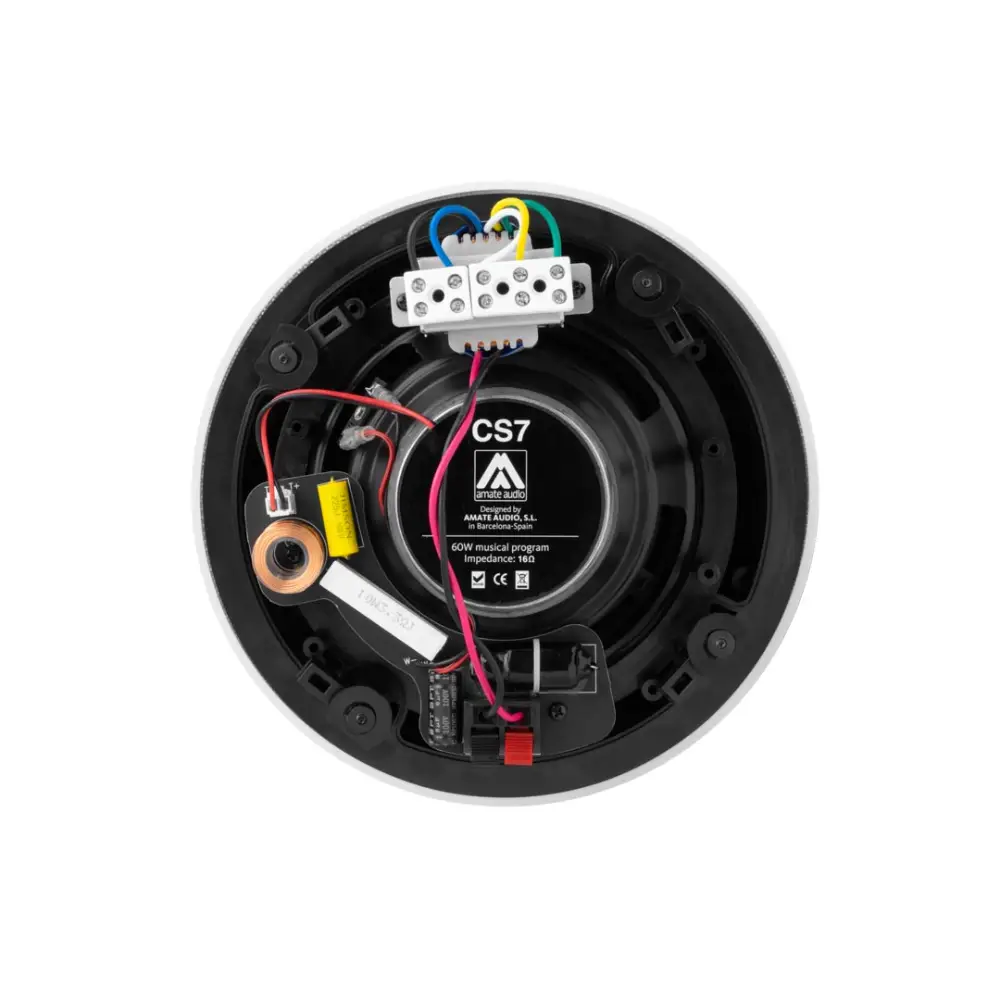

100V Transformer
TF-100 for CS7
