Installation Mixers

Installation Mixers

Installation Mixers provide reliable audio control for fixed sound systems, available in rack-mounted and desktop designs. With models offering 3 to 18 audio inputs and optional remote control and priority features, they deliver flexible and efficient sound management for professional installations.

Mixer Image

Smart multi-zone audio control

SAMI-603 is a professional installation mixer that provides clear, stable sound with flexible multi-zone routing, independent output control, and priority functions, making it a reliable choice for mosques and professional audio installations.

Related Products
  • eCOMPACT4BT
    Installation Mixers

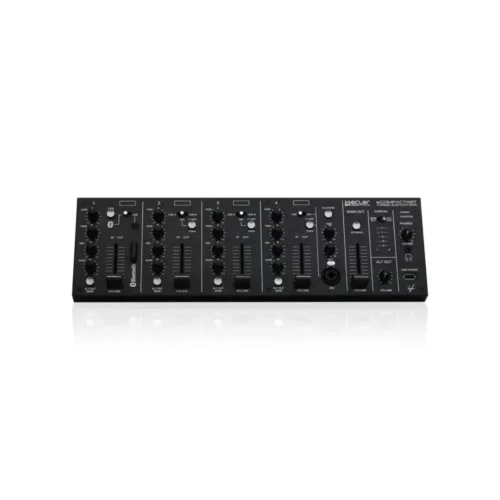

    eCOMPACT4BT

    eCOMPACT4BT is a desktop and 19" rackmount 4-channel mixer with Bluetooth® for professional installation. Simple to operate, suitable for both experienced and novice users. Features 4 microphone inputs, 6 stereo line inputs, USB charging port, Bluetooth® wireless connection and a mini-jack input for external devices. All microphone inputs have a switchable high-pass filter. 3-band tone control and ALT Send (sub-mix channel) on all channels.
    Number of input ports: 4 channels: 4 MIC ports 6 ST LINE ports
    Connection type: LINE: RCA 1 COMBO MIC (Front panel)
    Input sensitivity: LINE, LINE A, LINE B: 0dBV MICRO (BAL): -35dBV AUX INPUT IN1: -10dBV BT INPUT: -10dBVFS
    Input impedance: LINE, LINE A, LINE B: 50kΩ MICRO (BAL): <1kΩ AUX INPUT IN1: 316Ω
    Read more
    Learn More
  • SAM612T
    Installation Mixers

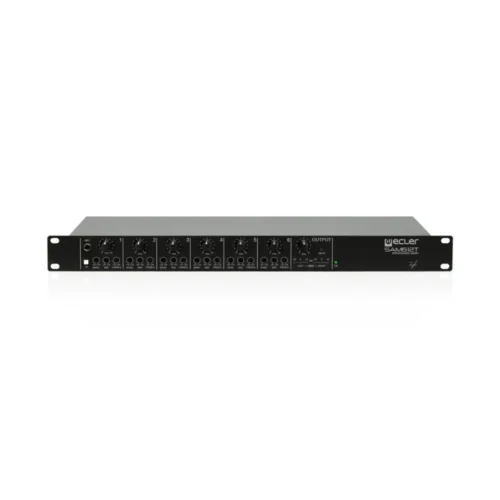

    SAM612T

    SAM612T is an installation audio mixer in standard rack format, featuring 6 MIC/LINE ST inputs + 1 ST MIX input and 1 ST MAIN output + 1 ST REC output. Each input has a dedicated 3-band tone control, a feature which is fundamental to get a perfect microphone mix in an installation. Input 1 includes talkover (priority) function over the mix bus and additional front panel jack connector. Main output ST/MONO mode switch and MUTE port for external dry contact triggering.
    Number of input ports: 6, MIC/LINE level 1 ST MIX1 direct MIC input on front panel
    Connection type: MIC: 3-pin Euroblock LINE/MIX: double RCA
    Input sensitivity: IN 1-6 (MIC/LINE): ±15dB
    CMRR: MIC >60dB @ 1 kHz
    Read more
    Learn More
  • SAMI-402
    Installation Mixers

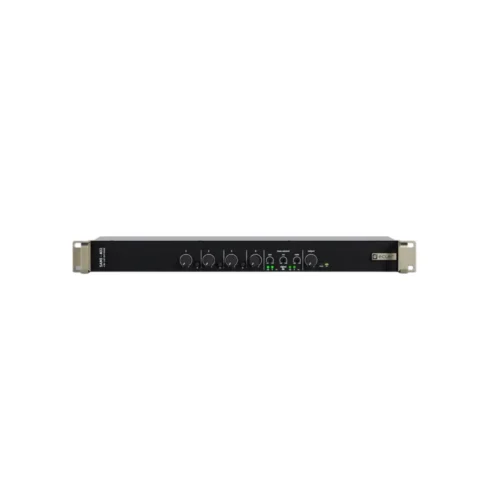

    SAMI-402

    SAMI-402 is an installation audio mixer in standard rack format, featuring 3 MIC/LINE Stereo inputs, 1 LINE Stereo input, 1 main mix output and one AUX/REC additional output. It includes a 3 band tone control section, Talkover (priority) function assignable to each MIC/LINE input over the mix bus, ST/MONO mix switch and MUTE port for external dry contact triggering.
    Number of input ports: 3, MIC/LINE 1, LINE
    Connection type: MIC: 3-pin Euroblock LINE: RCA
    Input sensitivity: LINE 1-3: 0dB LINE 4: 0dB/-6dB (internally selectable) MIC 1-3 BAL: -35dB
    Input sensitivity adjust: MIC/LINE: ±15dB
    Read more
    Learn More
  • SAMI-603
    Installation Mixers

    SAMI-603

    SAMI-603 is an installation audio mixer in standard rack format, featuring 1 MIC input + 4 MIC/LINE Stereo inputs + 1 LINE Stereo input and 3 outputs that can be configured as 1 stereo couple + 1 mono or 3 independent mono. Each output can get a dedicated mix from the available inputs and has a 3-band tone control. Talkover (priority) function is assignable to each input from IN1 to IN5 over the mix output buses. ST/MONO mix switch for the A/B outputs and MUTE port for external dry contact triggering.
    Number of input ports: 4, MIC/LINE 1, MIC 1, LINE STEREO
    Connection type: MIC: 3-pin Euroblock LINE: RCA
    Input sensitivity: LINE 2-5: 0dB LINE 6: 0dB/-6dB (internally selectable) MIC 1-5 BAL: -35dB
    Input sensitivity adjust: MIC/LINE: ±15dB
    Read more
    Learn More
  • SAMI-612
    Installation Mixers

    SAMI-612

    SAMI-612 is an installation audio mixer in standard rack format, featuring 6 MIC/LINE Stereo inputs, 1 Stereo MIX input and 1 Stereo MAIN output + 1 Stereo REC output. Each input has a dedicated 3-band tone control, a feature which is fundamental to get a perfect microphone mix in an installation. Input 1 includes talkover (priority) function over the mix bus and additional front panel jack connector. Main output ST/MONO mode switch and MUTE port for external dry contact triggering.
    Number of input ports: 6, MIC/LINE ( 1 STEREO direct MIC input on front panel) 1, MIX LINE
    Connection type: MIC: 3-pin Euroblock LINE/MIX: RCA
    Input sensitivity: LINE 2-5: 0dB LINE 6: 0dB/-6dB (internally selectable) MIC 1-5 BAL: -35dB
    Input sensitivity adjust: MIC/LINE: ±15dB
    Read more
    Learn More
  • SAMI-702BT
    Installation Mixers

    SAMI-702BT

    SAMI-702BT is an installation audio mixer in standard rack format, featuring 6 MIC/LINE Stereo inputs + 1 Bluetooth® Stereo input, 1 main mix output and one AUX/REC additional output. It includes a 3 band tone control section, Talkover (priority) function assignable to each MIC/LINE input over the mix bus, ST/MONO mix switch and MUTE port for external dry contact triggering.
    Number of input ports: 6, MIC/LINE 1, BT in (Bluetooth® LINE STEREO)
    Connection type: MIC: 3-pin Euroblock LINE/MIX: RCA Bluetooth® Receiver
    Input sensitivity: LINE 1-6: 0dB Bluetooth® LINE 7: 0dB/-6dB (internally selectable) MIC BAL: -35dB
    Input sensitivity adjust: MIC/LINE 1-6: ±15dB
    Read more
    Learn More
