Digital Matrexes & Processors
Digital Matrexes & Processors
Digital Matrixes and Processors deliver efficient and flexible audio solutions for a wide range of needs. Ecler offers multiple technology levels, from cost-effective basic models to advanced, ergonomic, and integration-friendly systems, ensuring reliable performance for both installers and end users.
Seamless Dante™ audio connectivity
The WP22DN wall panel delivers professional-grade Dante™ audio integration, allowing effortless connection of microphones and line inputs with flexible outputs for networked sound systems, ideal for conferences, studios, and live venues.
Showing all 13 results

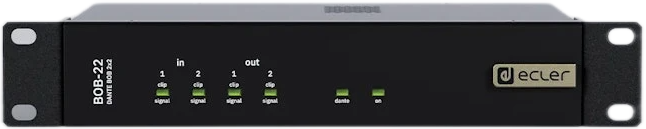

Flexible Dante/AES67 audio conversion
The BOB-22 digital audio interface seamlessly converts microphones and line-level signals into Dante/AES67 streams and back, providing reliable, professional-grade audio over IP for studios, live events, and networked installations.
Related Products
-

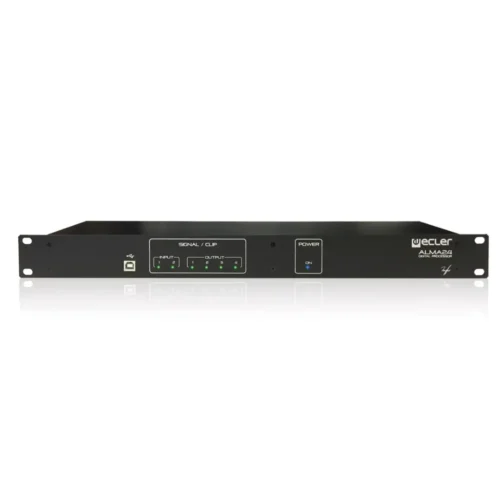

Digital Matrexes & ProcessorsALMA24
ALMA24 is a digital loudspeaker manager including 2 audio inputs and 4 audio outputs, USB interface and 2 volume remote control ports (0-10VDC). ALMA24 is a 1RU stand-alone processor. -
Digital Matrexes & ProcessorsALMA26
ALMA26 is a digital loudspeaker manager including 2 audio inputs and 6 audio outputs, USB interface and 2 volume remote control ports (0-10VDC). -
Digital Matrexes & ProcessorsBOB-04
BOB-04 is a digital audio Dante/AES67(Audio Over IP) Break Out Box. It delivers 4 LINE level audio outputs, converted from 4 Dante/AES67 (Audio Over IP), received from the Ethernet digital audio LAN it is connected to. The device features PoE (Power over Ethernet), DC supply directly from PoE ready Ethernet switches. An optional 24VDC external PSU is available (sold separately). BOB-04 is a generic Dante/AES67 device that can be used in combination with EclerNet / EclerPLEX / VIDA / HALO Dante devices from Ecler, or with any other third-party Dante/AES67 devices, but it is not a native EclerNet / EclerPLEX guest unit. -

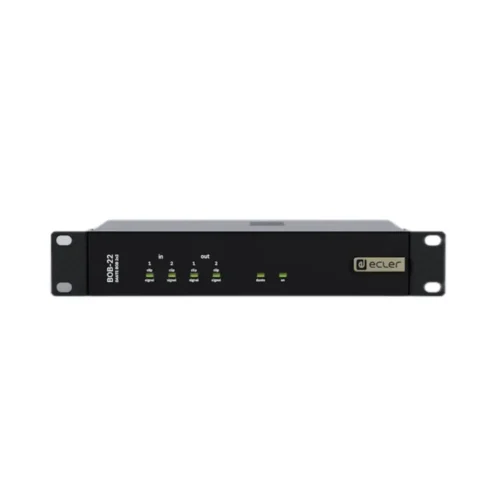

Digital Matrexes & ProcessorsBOB-22
BOB-22 is a digital audio interface, 2xMIC/LINE audio inputs and 2 LINE level audio outputs, Dante/AES67 (Audio Over IP) Break Out Box. It enables the conversion of up to 2 Dante/AES67 channels into 2 analogue audio LINE level output signals and vice versa, converting 2 MIC/LINE analogue audio input signals into 2 Dante/AES67 channels for transmission over an Ethernet network. The device features PoE (Power over Ethernet) for DC power directly from PoE-enabled Ethernet switches. An optional 24VDC external PSU is available (sold separately). BOB-22 is a generic Dante/AES67 device that can be used in combination with EclerNet / EclerPLEX / VIDA / HALO Dante devices from Ecler, or with any other third-party Dante/AES67 devices, but it is not a native EclerNet / EclerPLEX guest unit. -

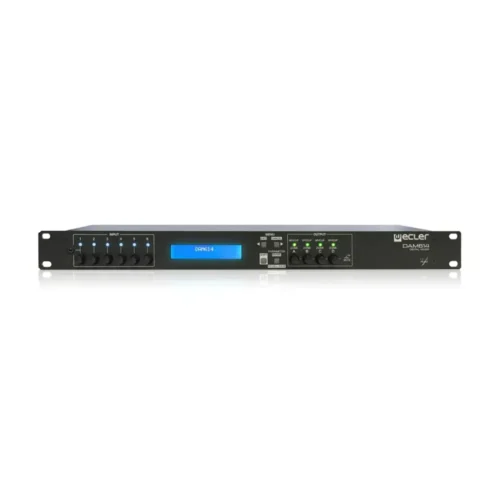

Digital Matrexes & ProcessorsDAM614
DAM614 is a fully programmable audio digital mixer. It includes 6 audio inputs and 4 audio outputs, front panel inputs and outputs level controls, DSP processing, RS-232 connectivity and 4 REMOTE control ports (0-10VDC). Its 4 outputs can be used as mono independent zones or coupled as stereo zones. Regarding inputs, the first 2 are stereo LINE inputs, and the 3rd, 4th, 5th and 6th ones are MIC/LINE ready (phantom available), being possible to use them independently (mono) or as stereo-coupled inputs. -

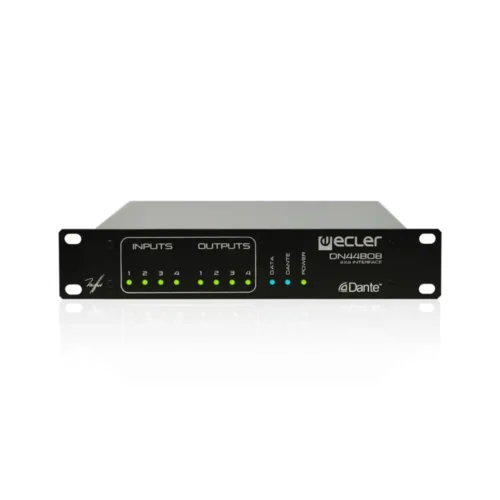

Digital Matrexes & ProcessorsDN44BOB
DN44BOB is a 4 inputs and 4 outputs DANTE (Audio Over IP) Break Out Box. It allows to convert 4 analogue audio signals into 4 DANTE channels and send them into an Ethernet LAN, as well as to take 4 DANTE channels from the Ethernet network and convert them to analogue audio signals. It includes 4 GPI control ports (0-10VDC) and 4 GPO control ports (NO/NC relays). Can be used together with EclerNet DANTE ready products or as a stand-alone DANTE interface, together with any audio device including analogue audio inputs and/or outputs. -

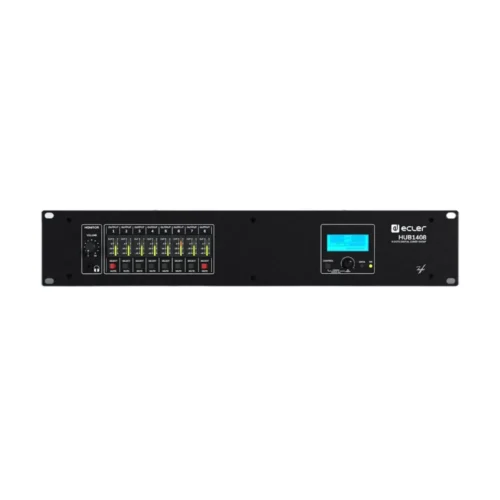

Digital Matrexes & ProcessorsHUB1408
HUB1408 is a digital zone manager with 14 inputs and 8 outputs. It has the HANGAR embedded web-server application (control from standard web browser in Windows / MacOS, etc.) for its configuration; remote control from physical wall installation panels, call (paging) stations and applications for mobile devices (Android, iOS). Includes DSP with specific functions for both inputs and outputs. HUB Series offers multiple possibilities, being intuitive and easy to configure. From the least experienced user to the most expert, you can set up a professional audio installation in a matter of minutes (Plug and Play). It is the perfect solution for any type of sound that requires managing and controlling different zones. -

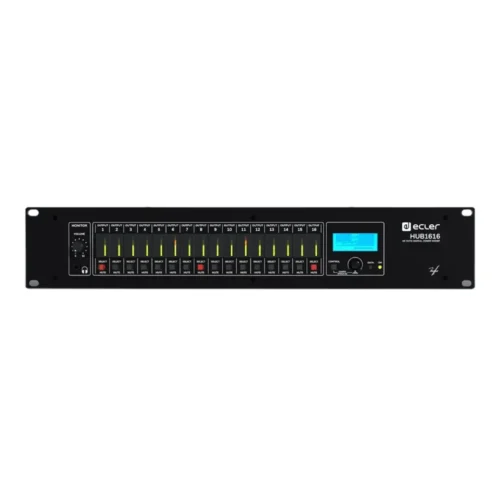

Digital Matrexes & ProcessorsHUB1616
HUB1616 is a digital zone manager with 16 inputs and 16 outputs, an evolution of its predecessor eMIMO1616. It has the HANGAR embedded web-server application (control from standard web browser in Windows / MacOS, etc.) for its configuration; remote control from physical wall installation panels, call (paging) stations and applications for mobile devices (Android, iOS). Includes DSP with specific functions for both inputs and outputs. HUB Series offers multiple possibilities, being intuitive and easy to configure. From the least experienced user to the most expert, you can set up a professional audio installation in a matter of minutes (Plug and Play). It is the perfect solution for any type of sound that requires managing and controlling different zones. -

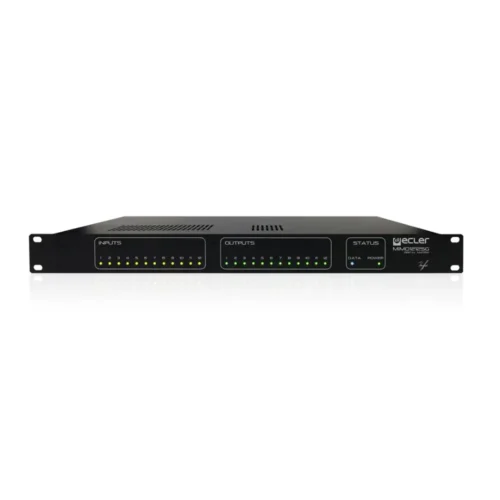

Digital Matrexes & ProcessorsMIMO1212SG
MIMO1212SG (MIMO1212 SINGLE) is an EclerNet digital audio device that keeps the heart and soul of the standard MIMO88, its main features and its audio quality, to become a simplified and cost-effective version (12x12) of this acclaimed digital matrix. -

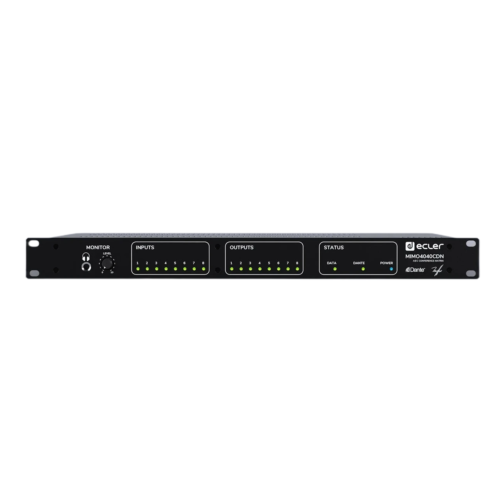

Digital Matrexes & ProcessorsMIMO4040CDN
MIMO4040CDN is is a digital audio matrix including a native (full DSP) matrix of 40x40 input and output audio channels total size, specially designed for conference rooms. It includes functions such as AUTOMIXER or FEEDBACK KILLER by default, as well as up to 8 microphone channels with AEC (Acoustic Echo Canceling) processing activated by software licenses. -
Digital Matrexes & ProcessorsMIMO7272DN
MIMO7272DN is a digital matrix including 72 audio inputs and 72 audio outputs (8 analogue inputs, 8 analogue outputs, 64 Dante™/AES67 digital inputs and 64 Dante™/AES67 digital outputs), and a native internal matrix of 64x64 simultaneous input / output channels. Incorporating audio over IP technology, MIMO7272DN allows signal transmission using a Local Ethernet network, suppressing cabling distance limitations. It features accessories from WPNET Series connected by Ethernet interface and PoE DC supply ready. This ensures flexible and efficient installations. MIMO7272DN is also capable of executing EclerNet projects embedded into its processor and electronics engine, acting as a UCP (User Control Panels) server within an EclerNet devices network. -
Digital Matrexes & ProcessorsMIMO88
MIMO88 is an 8 in / 8 out digital audio matrix, fully programmable and linkable to a second unit to become a 16x16 matrix, with real routing from any input to any output. -
Digital Matrexes & ProcessorsMIMO88SG
MIMO88SG (MIMO88 SINGLE) is an EclerNet digital audio device that keeps the heart and soul of the standard MIMO88, its main features and its audio quality, to become a simplified and cost-effective version of this acclaimed digital matrix.
